Johnson Controls A19ABC-11C

B009PAZ9IE

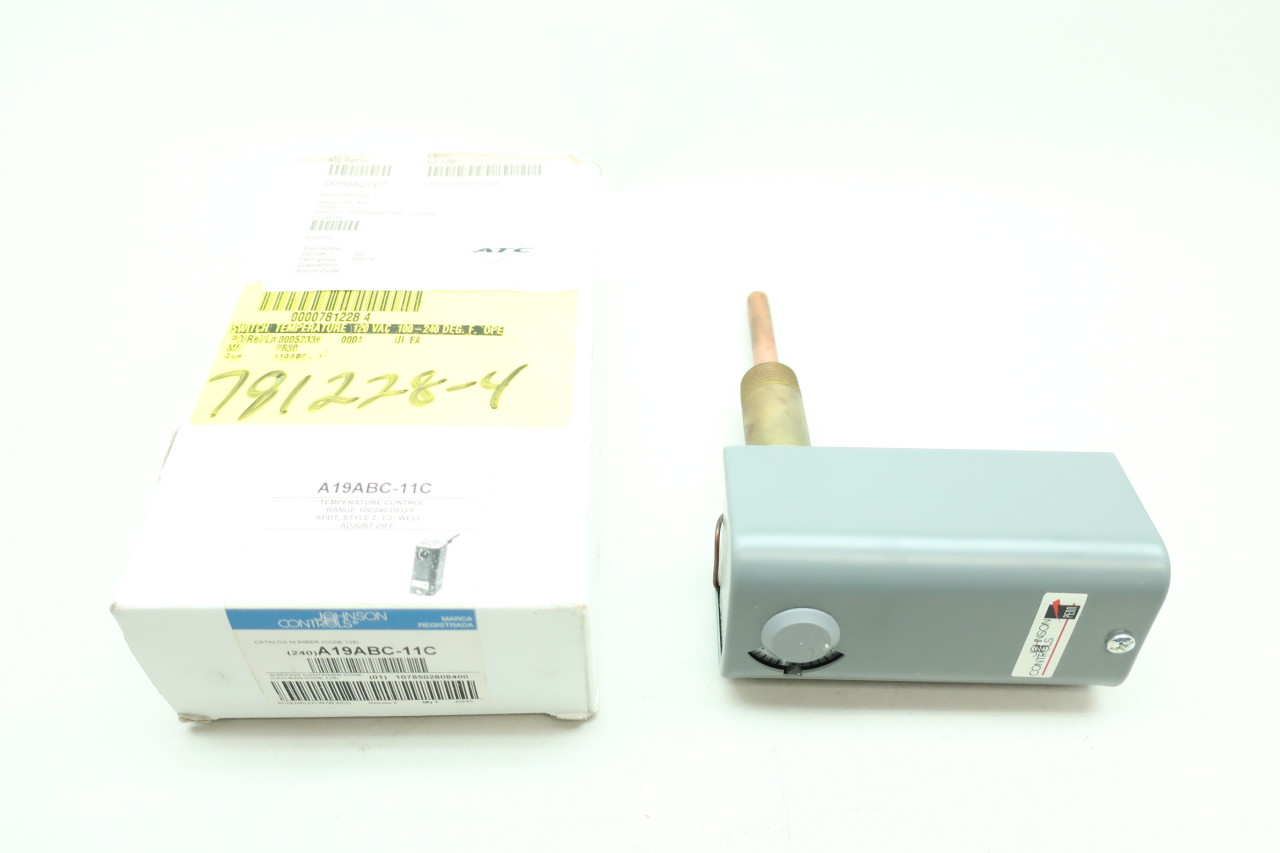

Johnson Controls A19ABC-11C A19 Series Hot Water Temperature Control, Well Immersion, Single-Pole, Double-Throw

Johnson Controls A19ABC-11C A19 Series Hot Water Temperature Control, Well Immersion, Single-Pole, Double-Throwzoom

Attributes

Key Value
ApplicationHeating
Best Sellers RankSee Top 100 in Industri.
BrandJohnson Controls
ColorGray
Compatible System TypeHot Water Heating Contr.
Contact Rating120V AC, 240V AC
Control TypeKnob
Current Stock3
Date First AvailableOctober 11, 2012
Depth1 13/16 in
Differential6 Degrees to 24 Degrees.
Differential Temperature6-24 ?F
Differential TypeAdjustable
Electrical Connection T.Screw Terminals
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeGalvanized/Steel
Family SeriesJohnson Controls Contro.
Full Load Amps @ 120V AC10 A
Full Load Amps @ 240V AC6 A
Gross Weight1.66 lbs
GTIN696333220996 , 09472333.
Height4 3/8 in, 7.00
IncludesRemote Sensing Bulb
Inductive Amps @ 120V10 A
International ShippingNo
ItemLine Volt Mechanical Ts.
Item model numberA19ABC-11C
Item NumberA19ABC-11C
Key FeaturesLiquid-Filled Element P.
Lead TimeExpected to ship in 1-2.
Locked Rotor Amps @ 120V60 A
ManufacturerJohnson Controls
Manufacturer Part NumberA19ABC-11C
Max Temperature250 ?F
Maximum Control Tempera.240 Degrees F
Maximum Operating Tempe.140 Degrees F
Minimum Control Tempera.100 Degrees F
Mounting TypeSurface Mount
MpnA19ABC-11C
National Stock Number5930-00-846-4752
Net Weight1.235 lbs
Number of Cooling Stages1
Number of Heating Stages1
Number of Poles1
Number of Relay Inputs1
Number of Switches1
Output1 SPDT
Overall Depth1 13/16 in
Overall Height4 3/8 in
Overall Width2 1/8 in
Pilot Duty Rating125 A @ 24/600V AC
Product Dimensions10 x 7 x 5 inches; 0.01.
Product SeriesA19 Hot Water Temperatu.
Product with faster shi.true
Sensing Bulb Dia.3/8 in
Sensing Bulb Length2 3/8 in
Sensor Diameter3/8 in
Sensor Length2 3/8 in
Sensor LocationRemote
Sensor TypeWell
Setpoint Temp Range100-240 ?F
Shippingundefined (Fixed Shippi.
SKUZO-G5083994
StandardsCSA LR948/4813 02, UL E.
Switch ActionOpen/Close on Rise
Switch TypeSPDT
Temperature Differential6 Degrees F to 24 Deg.
Temperature ScaleFahrenheit/Celsius
Temperature Sensitivity+/- 4 Degrees F
Thermostat Control Range100 Degrees to 240 Deg.
Thermostat ItemLine Voltage Mechanical.
UPC078502808400
Voltage24 to 277V AC, 120/240V.
Well Connection Size1/2 in NPT
Width2 1/8 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD75137480.551In StockJOHNSON CONTROLS80.55 @ 1
thumbzoomsustainablesupply.comC2085517100.251In StockJohnson Controls2.0100.25 @ 1
hvacdiscountstore.comJOH--A19ABC-11C102.0915JOHNSON102.09 @ 1
thumbzoomcappusa.com1036096106.961In StockJohnson Controls106.96 @ 1
thumbzoomblackhawksupply.comA19ABC-11C108.041In StockJohnson Controls108.04 @ 1
thumbzoomindustrialstores.comA19ABC-11C110.561In Stock19Johnson Controls110.56 @ 1
thumbzoomZoroG5083994116.99137Johnson Controls1.8116.99 @ 1
alliedcontrols.comA19ABC-11C119.31In StockJohnson Controls119.3 @ 1
thumbzoomenergycontrol.comA19ABC-11C120.331In StockJOHNSON CONTROLS120.33 @ 1
thumbzoomVoomi SupplyA19ABC-11C123.541In StockJohnson Controls123.54 @ 1
thumbzoomsimsupply.comZO-G5083994126.7213Johnson Controls126.72 @ 1
thumbzoomhomeessentialsdirect.comA19ABC-11C131.861In StockJohnson Controls131.86 @ 1
thumbzoomGalcoA19ABC-11C-JHSN141.481In StockJohnson Controls1.66141.48 @ 1
thumbzoomwaterpumpsnow.comA19ABC-11C145.21In StockJohnson2.0145.2 @ 1
grainger.caJHCA19ABC11C149.726519741In StockJOHNSON CONTROLS1.8149.72651974 @ 1
thumbzoomRadwellA19ABC-11C160.012JOHNSON CONTROLS160.0 @ 1
KeleA19ABC-11C168.4812Johnson Controls168.48 @ 1
thumbzoomNational Supply NetworkB476069168.791In StockJohnson Controls Inc168.79 @ 1
Global IndustrialWBB476069196.951In StockJohnson Controls196.95 @ 1
