- mpn0109 10 21
- brandname: LEGRIS
- manufacturername: LEGRIS

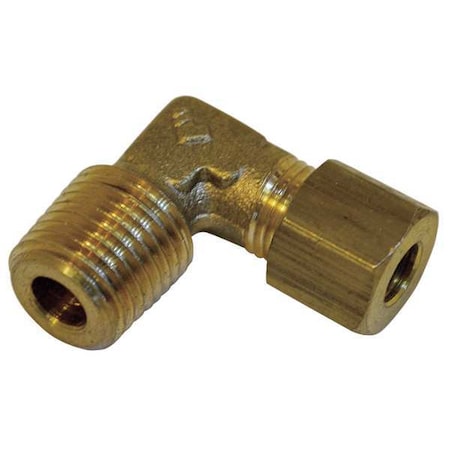

Legris Brass Compression x Male BSPT Male Elbow, 90(Deg), 10mm Tube Size - 0109 10 21
- Brand: Legris
- PartNumber: 0109 10 21
- Manufacturer: Legris
- Label: Legris
Attributes
| Key | Value |
|---|
| Application | Chemical Fluids, Air, F. |
| Basic Pipe Fitting Mate. | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Compatible Tube Material | Aluminum, Copper, Therm. |
| Compliance | AFNOR, CETOP, CNOMO, ISO |
| Compression Thread Size | 1/2 in |
| Connection Type | Compression x MBSPT |
| Country of Origin (subj. | France |
| End Connection Type | Compression |
| Fitting Body Material | Brass |
| Fitting Connection Type | Compression x Male BSPT |
| Fitting Material | Brass |
| Fitting Pipe Size | 1/2 in |
| Fitting Shape | Elbow |
| Fitting Side A Connecti. | Compression |
| Fitting Side A Tube Out. | 10 mm |
| Fitting Side B Connecti. | MBSPT |
| Fitting Side B Pipe Size | 1/2 in |
| For Tube OD | 10 mm |
| For Tube Outside Diamet. | 10 mm |
| Hex Size | 19 mm |
| Item | Male Elbow, 90 Degrees |
| Max. Pressure | 1087 psi |
| Maximum Operating Press. | 1,087 psi |
| Maximum Operating Tempe. | 250 Degrees F |
| Minimum Operating Tempe. | 40 Degrees F |
| Overall Length | 36 mm |
| Pipe Fitting Connection. | Compression x Male BSPT |
| Pipe Size | 1/2 in |
| Series | Metric Compression |
| Specific Fitting Shape | 90 Degrees Elbow Adapt. |
| Specific Pipe Fitting S. | 90 Degree Elbow |
| Standards | CNOMO: E07.21.115N, DI:. |
| System of Measurement | Imperial |
| Temp. Range | -40 Degrees to 482 Deg. |
| Thread Size | 1/2" |
| Thread Size B | R 1/2 |
| Threading Size | R 1/2 |
| Tube Fitting Material | Brass |
| Tube Size | 25/64 in |
| Type | Compression |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| RS Delivers | 146-6861 | 17.8068 | 1 | In Stock | | Legris | | 17.8068 @ 1 |
 | bscsource.com | 03751625 | 31.69 | 1 | In Stock | | Legris | | 31.69 @ 1 |
 | National Supply Network | 03751625 | 39.67 | 1 | In Stock | | Legris | | 39.67 @ 1 |
 | Zoro | G6526362 | 223.89 | 1 | 1 | | Legris | 2.5 | 223.89 @ 1 |
