Leviton 8300-HLW

B003ATVN4A

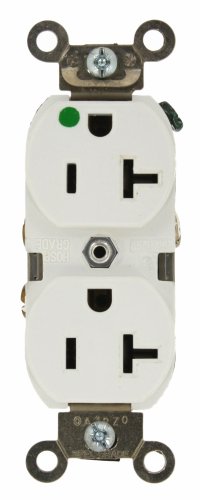

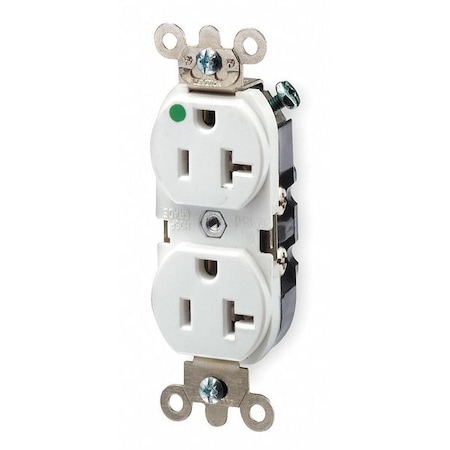

Leviton 8300-HLW 20-Amp, 125 Volt, Extra Heavy Duty Duplex Receptacle, Straight Blade, Self Grounding, Illuminated, White

Leviton 8300-HLW 20-Amp, 125 Volt, Extra Heavy Duty Duplex Receptacle, Straight Blade, Self Grounding, Illuminated, Whitezoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847705725UPC
10-Year LimitedWarranty
125 VoltVoltage (V)
20 AmpAmperage
20AAmp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
8300-HLWStock Code
Amperage Rating20 A
Amperage Rating:20 A
Amps20
Amps - Plugs and Recept.20 A
Application EnvironmentHeavy-Duty Hospital Gra.
BrandLEVITON
CategoryElectrical Receptacles
ColorWhite
Color - Plugs and Recep.White
Color:White
Connection:Back and Side Wired
Country of OriginMX
Current Stock22
Description:WH REC DUP HG ILLUM 2PO.
Dielectric Strength:2000 (Min.) V
Dimensions46 in H x 1.38 in W x 1.
Environmental Condition.Flammability (Rated V-2.
Face Plate Height2.75 in
Face Plate Width1.38 in
For additional options .Notes
GradeHospital
Horsepower1 hp
HP1 hp
International ShippingNo
Item - Plugs and Recept.Duplex Receptacle Outlet
Lead TimeExpected to ship in 1-2.
LevitonBrand
ManufacturerLeviton Manufacturing, .
MaterialThermoplastic, Nylon, N.
Material:Thermoplastic
Maximum Wire Size10 AWG
MFG Part #:8300-HLW
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mounting:Wall Box
Mpn8300-HLW
NEMA Configuration5-20, 5-20R, WD-6
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
NEMA Receptacle Configu.5-20R
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
NylonMaterial
Outlet Type - Plugs and.Duplex
Overall Depth1.12 in
Phase1, Single
Phase:1
Size:46 H x 1.38 W x 1.12 D .
SKUZO-G004836503
Standard Duplex OutletsFamily
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
StandardsANSI C73, CSA C22.2 No..
Sub-CategoryDuplex Receptacles
SubCategoryElectrical
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeBack/Side Wire
TypeDuplex Extra Heavy Duty
Type:Straight Blade;Duplex O.
UL / CSA ListedUL Listed
UNSPSC39121406
UPC078477057254, 078477057.
UPC:078477057254
Voltage125
Voltage - Plugs and Rec.125VAC
Voltage Rating125 VAC
Voltage Rating:125 V
WhiteColor
Wire Size:14-10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEV 8300-HLW15.121In StockLEVITON15.12 @ 1
thumbzoomLighting Supply8300-HLW16.631In StockLeviton16.63 @ 1
thumbzoomZoroG00483650317.19150Leviton2.1517.19 @ 1
Onlinecomponents.com8300-HLW18.782In StockLeviton18.78 @ 2
thumbzoomsimsupply.comZO-G00483650324.26122Leviton24.26 @ 1
thumbzoomimprovedepot.com86818224.991In StockLeviton24.99 @ 1
thumbzoomturtle.comLEV 8300-HLW30.061In StockLeviton30.06 @ 1
Dale-Electric8300-HLW31.071In StockLeviton Manufacturing31.07 @ 1
thumbzoomRadwell8300-HLW36.050In StockLEVITON36.0 @ 50
thumbzoomPlatt.com028740147.611In StockLeviton47.61 @ 1
us.rs-online.com7237731950.5950In StockLeviton50.59 @ 50
thumbzoombulbspro.com8300-HLW62.41In StockLeviton62.4 @ 1
thumbzoomNational Supply NetworkB384559303.082In StockLEVITON MFG CO., INC303.08 @ 2
