- mpnT5632-T
- brandname: Leviton
- manufacturername: Leviton

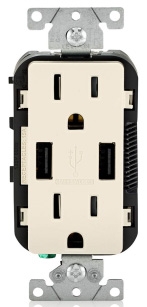

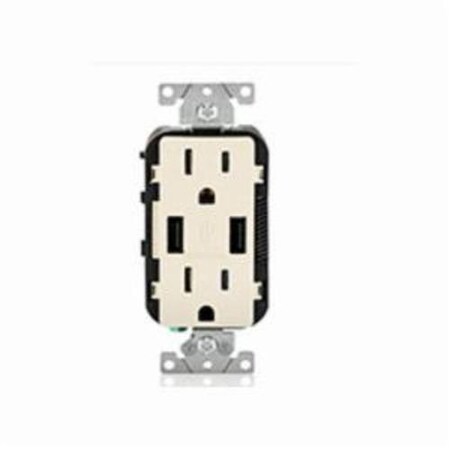

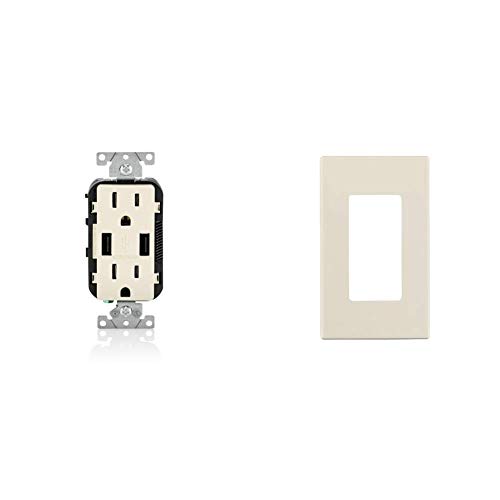

Leviton T5632-T USB Charger/Tamper-Resistant Duplex Receptacle, 15-Amp, Light Almond with Screwless Wallplates, 2-Pack
- Brand: Leviton
- PartNumber: T5632-T
- Model: T5632-T
- Color: Light Almond
- Size: 2-Pack w/Wallplates
- PackageQuantity: 1
- Binding: Product Bundle
- Manufacturer: Leviton
- Label: Leviton
Attributes
| Key | Value |
|---|
| 07847768389 | UPC |
| 1.68 | Depth (in.) |
| 1.73 | Width (in) |
| 125 | Voltage (V) |
| 15 | Amperage |
| 15A-1/2 HP | HP Rating: |
| 15A-125V | Rating, Amp Rating |
| 4.04 | Height (in) |
| 5 Year Limited | Warranty |
| Amperage | 15 A |
| Amperage Rating | 15A, 15 Amp |
| Amps | 15 |
| Body Material | Thermoplastic |
| Brand Name | Leviton |
| Category | Combination Device Swit. |
| cCSAus | UL Listed |
| Color | Light Almond |
| Color Family | Brown |
| Compatibility | Tablets, Smartphone, Mo. |
| Condition: | New |
| Conductor Size | 14-12 AWG |
| Connection | Thread |
| Country of Origin | CN - China, CN |
| Country Of Origin | China |
| Cover Material | Thermoplastic |
| Degree of Protection | No |
| Description: | LA COMBI DUP REC/USB CH. |
| Dimensions | 1.73 Inch Width x 1.68 . |
| ECCN | EAR99 |
| Electrical Ratings | 15 A at 125 VAC |
| Energy Star Flag | No |
| Environmental Conditions | -10 to 40 deg C Operati. |
| Fiber Type | No |
| Finish | No |
| Flammability | Rated V-0 per UL 94 |
| Grade | Residential/Commercial . |
| Grounding | Grounding |
| GTIN | 00078477683897 |
| Horsepower Rating | 15A-1/2 HP |
| Item Name | Combination Duplex Rece. |
| Jacket Material | No |
| Leviton | Brand |
| Light Almond | Color |
| Listed | cCSAus |
| Manufacturer | Leviton, Leviton Manufa. |
| Manufacturer Name | Leviton |
| Manufacturer Part Number | T5632-T |
| Material | Thermoplastic |
| Maximum Load Capacity | 1/2 hp |
| MFG Part #: | T5632-T |
| NEMA | 5-15R |
| NEMA Configuration | NEMA 5-15R, 5-15R |
| No. of Poles | 2 |
| No. of Wires | 3 |
| Number of Poles | 2 |
| Number of Wires | 3 |
| On Hand: | In Stock - Available fo. |
| Operating Temperature | -10?C to 40?C |
| Product Type | Outlet/USB Combo |
| Ratings | 15A-125V |
| Receptacles Detail | 2 x USB, 2 x NEMA 5-15R |
| RoHS Flag | Contact manufacturer |
| Size | 4.04 in H x 1.73 in W x. |
| Standard: | cCSAus |
| Standards | cCSAus Certified, NOM 0. |
| Strap Material | Steel |
| Style | Duplex |
| Sub Brand | Decora? |
| Supplier: | Leviton |
| T5632-T | Stock Code |
| Temperature Rating | -10 to 40 deg C |
| Terminal Accom. | 14-12 AWG |
| Terminal Connection | Back and Side Wired |
| Terminal ID | Brass-Hot Black-Hot Whi. |
| Termination | Back & Side |
| Torque Range | 14 "- 18 in.-lbs |
| Type | Tamper-Resistant, USB, . |
| Type: | Combination Duplex Rece. |
| UL 1310 | Yes |
| UL 498 | Yes |
| UNSPSC | 39122231 |
| UPC | 07847768389, 0784776838. |
| UPC: | 078477683897 |
| USB Quantity | 2 |
| USB Rating | 3.6 A at 5 VDC |
| USB Type | Class A |
| Voltage | 125 VAC |
| Voltage Rating | 125 Volt AC |
| Voltage Rating: | 125 V |
| Volts AC | 120 |
| Volts DC | 5 |
| Wall Plate - Leviton 80. | Sold Separately: |
| Wire Size | 14 to 12 AWG |
| Wiring Method | Back/Side Wired |
