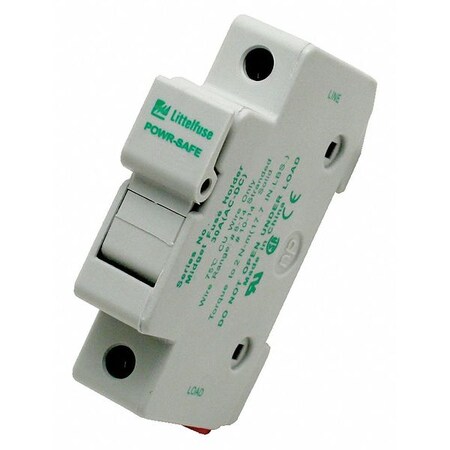

Littelfuse LPHV001 30A, 1P, 1000V DC Fuse Holder

Littelfuse LPHV001 30A, 1P, 1000V DC Fuse Holderzoom

Attributes

Key Value
Additional InformationMax Amps: 30 Amps|Volts.
Amp Range of Fuse Block.0 to 30A
Amperage Rating30 A
Amps30
ApplicationPhotovoltaic Inverters .
Body MaterialPolymer
BrandLITTELFUSE
Catalog NumberLPHV001
CategoryCircuit Protection
ClassT
CompositionThermoplastic
Connection TypePressure Plate, Pressur.
Connector TypeBox Lug
Contact Finish-
Contact Material-
Country of OriginChina
Country of Origin (subj.China
Current Rating30 A
Current Rating (Amps)30 A
Depth (in)2
DescriptionFUSE HLDR CART 1000V 30.
Description:1000VDC LPSM FUSEHOLDER.
Detailed DescriptionFuse Holder 30 A 1000V .
Digi-Key Part NumberF3519-ND
Dimensions3.06 in H x 0.7 in W x .
EnclosedYes
Family SeriesLittelfuse Fuseblocks &.
For Fuse SeriesSPF
For Fuse Size1 1/2 in L x 13/32 in d.
For Use With/Related Pr.5AG, 13/32" x 1-1/2" (M.
Fuse Block DesignFinger-Safe
Fuse Block or Fuse Hold.Finger Safe Fuse Block
Fuse Block or Holder AC.Not Rated
Fuse Block or Holder DC.1000VDC
Fuse Diameter10 mm
Fuse Dimensions10 x 38 mm
Fuse Length38 mm
Fuse Size0.394" Dia x 1.496" L (.
Fuse TypeCartridge, Solar
Fuse UL ClassT
Fuseholder TypeHolder
Gross Weight0.135 lbs
Height2.41"
Indicating / Nonindicat.Nonindicating
ItemFinger Safe Fuse Block
Item NumberLPHV001
Length3.00"
Made in USANo
ManufacturerLittelfuse Inc., LITTEL.
Manufacturer Part NumberLPHV0001Z
Manufacturer Product Nu.LPHV0001Z
Manufacturer Standard L.18 Weeks
MaterialThermoplastic
Max Current30 A
MFG Part #:LPHV001
MfrLittelfuse Inc.
MountingPressure Plate
Mounting StyleDin Rail
Mounting TypeDIN Rail, Panel Mount, .
Net Weight0.135 lbs
Number of Circuits1
Number of Poles1
Orientation-
PackageBox
Poles1
Power Rating4 W
Primary TypeFuse Holder
Product SeriesLPHV
Product StatusActive
ReinforcedNo
RoHSYes
SeriesLPHV
StandardRoHS
StandardsCalifornia Proposition .
Sub BrandLPHV Series
Suitable For Use WithSPF/FLU Series 1000 V F.
Supplier:LITTELFUSE
Temperature Rating-55 to 125 deg C
Termination StyleScrew Terminal, Pressur.
Touch SafeNo
Trip IndicatorNo
TypeFuse Holder, Fuse Fuse .
UPC079458182729
UPC:07945818272
Voltage1000V, 1,000 V
Voltage Rating1000 VDC
Volts DC1000
Water ResistantNo
Width0.70"
Wire Size14 to 8 AWG, 14 to 8 AW.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
standardelectricsupply.com222536511.681In StockLittelfuse11.68 @ 1
thumbzoomZoroG435403412.871In Stock26Littelfuse12.87 @ 1
RadwellLPHV0001Z21.01In StockLITTELFUSE21.0 @ 1
AmazonTPB017U50R1423.21In Stock1LITTELFUSE23.2 @ 1
thumbzoomNewark23R913624.09185LITTELFUSE24.09 @ 1
HotendaH56593424.651In StockLittelfuse24.65 @ 1
thumbzoomDigi-Key229729930.6841324Littelfuse Inc.30.684 @ 1
thumbzoomWalker IndustrialLPHV00130.821In Stock17Littelfuse30.82 @ 1
Lighting SupplyLPHV0001Z32.921In StockLittelfuse32.92 @ 1
kscdirect.comLF LPHV00134.111In StockLITTELFUSE34.11 @ 1
us.rs-online.com7224461134.26164Littelfuse34.26 @ 1
thumbzoomcrescentelectric.com76616335.371In StockLittelfuse35.37 @ 1
thumbzoomGalcoLPHV001-LF35.371In StockLittelfuse0.13535.37 @ 1
thumbzoomelectricalparts.comLPHV00136.44481In StockLittelfuse36.4448 @ 1
thumbzoomPlatt.com082194236.621In StockLittelfuse36.62 @ 1
thumbzoomTMELPHV0001Z714.11111LITTELFUSE714.11 @ 1
