Lovejoy 68514476591

mpn68514476591
brandname: LoveJoy
manufacturername: LoveJoy

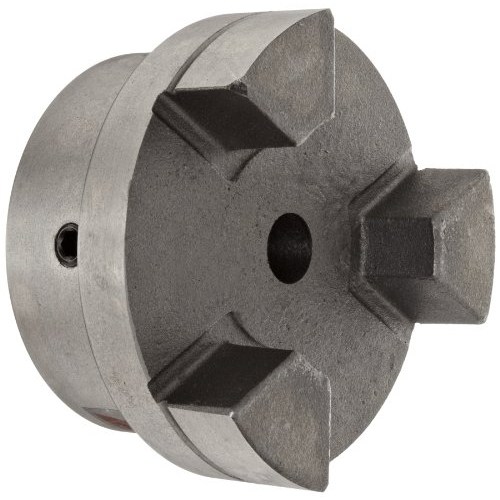

Lovejoy 76591 Size L276 Standard Jaw Coupling Hub, Cast Iron, Inch, 1.25" Bore, 6.18" OD, 0.5" x 0.25" Keyway

Lovejoy 76591 Size L276 Standard Jaw Coupling Hub, Cast Iron, Inch, 1.25" Bore, 6.18" OD, 0.5" x 0.25" Keyway

zoom

Brand: Lovejoy
PartNumber: 68514476591
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Jaws	3
Bore Size	1-1/4 in, 1 1/4 in
Color	Metallic
Coupling Size	L276
Coupling Type	Jaw
Cubic inches	179.50428 in3
Dimension G	1.580 in (40.13 mm)
Dimension SL	1.560 in (39.62 mm)
Dimension T	1/2-13
Elastomeric Member	SOX (NBR) Rubber
Hub Length	4.700 in (119.38 mm)
Hub Style	2
Keyway Size (W x D)	1/2 x 1/4 in
Length thru Bore	3.120 in (79.25 mm)
Material	Cast Iron
Max. Bore (Dimensions I.	2.875 in (73 mm)
Max. Speed	1800 rpm
Min. Bore (Dimensions I.	0.875 in (22.00 mm)
Nominal Torque	4716.00 in-lb
Outside Diameter	6.18 in (156.97 mm)
Overall Length	7.820 in (198.63 mm)
Rated HP at 1,200 rpm	90.00 hp
Rated HP at 1,800 rpm	135.00 hp
Rated HP at 100 rpm	7.50 hp
Weight	18.20 lb
Weight (Complete Coupli.	40.00 lb
Weight (Complete Coupli.	30.50 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476591	288.4	1	In Stock		Lovejoy	18.2	288.4 @ 1
	Megadepot	68514476591	314.5	1	In Stock		Lovejoy	18.2	314.5 @ 1
	heavydutydepot.com	68514476591	314.5	1	In Stock		Lovejoy		314.5 @ 1
