Lovejoy 68514476840

B004QWZI8W

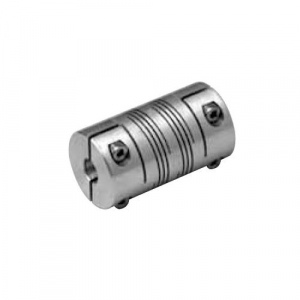

Lovejoy ADB4 68514476840 Double Beam Coupling, Aluminum, Inch, 5/16" Bore A Diameter, 5/16" Bore B Diameter, 0.752" OD, 1.043" Overall Coupling Length, 12 lb-in Nominal Torque, No Keyway, 10000 Max RPM

Lovejoy ADB4 68514476840 Double Beam Coupling, Aluminum, Inch, 5/16" Bore A Diameter, 5/16" Bore B Diameter, 0.752" OD, 1.043" Overall Coupling Length, 12 lb-in Nominal Torque, No Keyway, 10000 Max RPMzoom

Attributes

Key Value
Axial Misalignment? 0.010 in
Bore A0.313 in
Bore B0.313 in
Clamp Screw SizeM2.5
Coupling SizeADB4
Cubic inches0.58982 in3
FinishAnodized Aluminum
Keyway SizeNo Keyway
Length thru Bore0.256 in (6.50 mm)
MaterialAluminum
Max. Angular Misalignme.7.00 ?
Max. Bore (Dimensions I.0.394 in (10.00 mm)
Max. Operating Temperat.200.00 ?F
Max. Speed10000 rpm
Min. Bore (Dimensions I.0.236 in (6 mm)
Moment of Inertia0.0030 lb-in2
Nominal Torque12.00 in-lb
Outside Diameter0.752 in (19.10 mm)
Overall Length1.043 in (26.50 mm)
Parallel Misalignment0.010 in
StyleClamp Screw
Torsional Stiffness4460.00 in-lb/rad
TypeDouble Beam Coupling
Weight0.02 oz
Weight (Complete Coupli.0.60 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514476840149.41In StockLovejoy0.00125149.4 @ 1
thumbzoomheavydutydepot.com68514476840161.01In StockLovejoy161.0 @ 1
