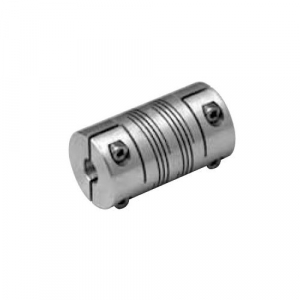

Lovejoy ADB5 68514476844 Double Beam Coupling, Aluminum, Inch, 1/2" Bore A Diameter, 1/2" Bore B Diameter, 1" OD, 1.5" Overall Coupling Length, 20 lb-in Nominal Torque, No Keyway, 10000 Max RPM

Attributes

Key Value
Axial Misalignment? 0.010 in
Bore A0.500 in
Bore B0.500 in
Clamp Screw SizeM3
Coupling SizeADB5
Cubic inches1.50000 in3
Description:ADB5-BEAM CP-1/2X1/2;
FinishAnodized Aluminum
Keyway SizeNo Keyway
Length thru Bore0.433 in (11.00 mm)
ManufacturerLOVEJOY INC
MaterialAluminum
Max. Angular Misalignme.7.00 ?
Max. Bore (Dimensions I.0.500 in (12.70 mm)
Max. Operating Temperat.200.00 ?F
Max. Speed10000 rpm
MFG Part #:68514476844
Min. Bore (Dimensions I.0.295 in (7.50 mm)
Moment of Inertia0.0130 lb-in2
Nominal Torque20.00 in-lb
Outside Diameter1.000 in (25.40 mm)
Overall Length1.500 in (38.10 mm)
Parallel Misalignment0.015 in
StyleClamp Screw
Supplier:LOVEJOY INC
Torsional Stiffness6266.00 in-lb/rad
TypeDouble Beam Coupling
UPC:685144768445
Weight0.08 oz
Weight (Complete Coupli.1.60 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomheavydutydepot.com68514476844169.11In StockLovejoy169.1 @ 1
thumbzoomusmegastore.com68514476844176.71In StockLovejoy0.005176.7 @ 1
kscdirect.comLOV 68514476844220.791In StockLOVEJOY INC220.79 @ 1
thumbzoommidwestapplianceparts.com68514476844-LJ-P253.871In StockLovejoy253.87 @ 1
thumbzoombscsource.com68514476844256.391In StockLovejoy256.39 @ 1
thumbzoomNational Supply Network87792602311.671In StockLovejoy311.67 @ 1
Airline HydraulicsLOVEJOY 68514476844321.521In StockLOVEJOY321.52 @ 1
