Marathon X444

mpnX444
brandname: MARATHON
manufacturername: MARATHON

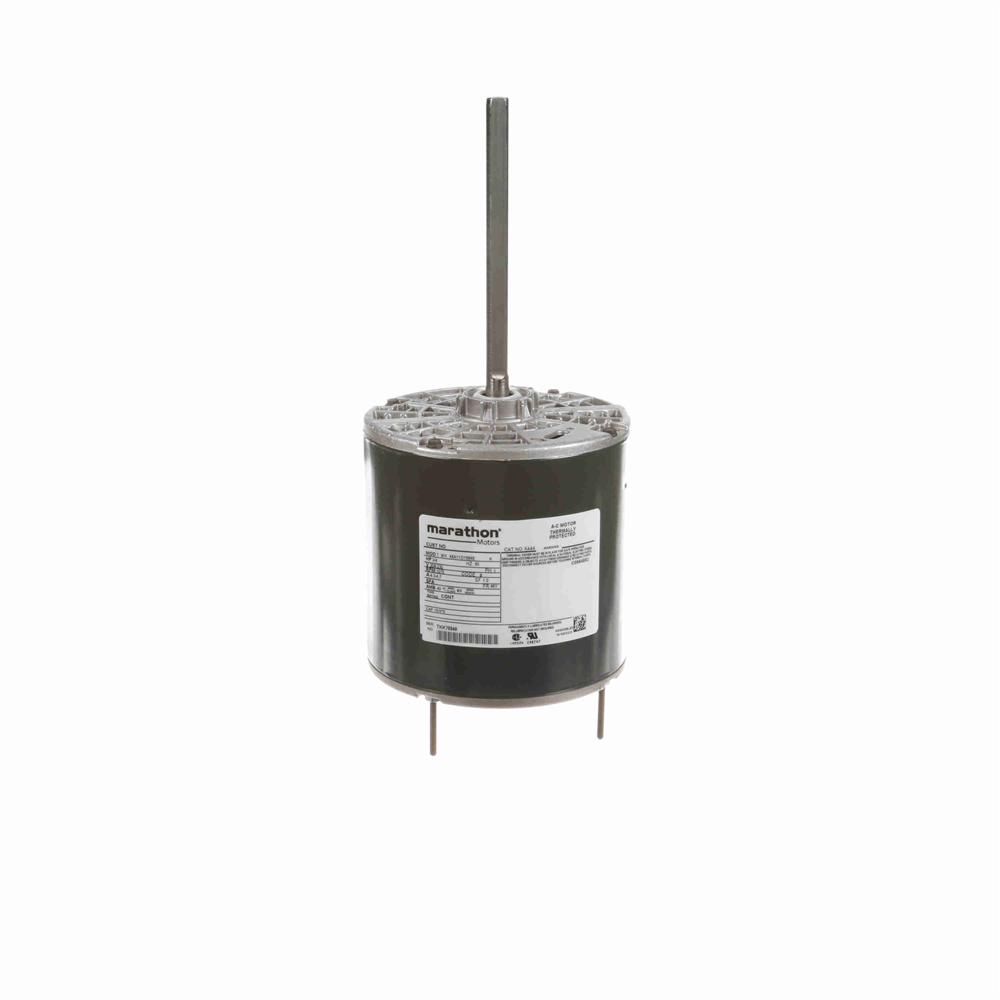

Marathon X444 Motor

Marathon X444 Motor

zoom

Brand: Marathon
PartNumber: X444
PackageQuantity: 1
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Alternate Mfr Part Numb.	048A11O1596
Amps	4.3-4.7
Bearings	Ball
Capacitor	15MFD/370VAC Required
Current Rating	4.3 to 4.7 A
Duty Cycle	Continuous
Efficiency	0.564, 56.4
Enclosure Material	Steel
Enclosure Type	OAO (Open Air Over), Op.
Frame	48Z
Frequency	60 Hz
Horsepower Rating	0.75 HP
HP	3/4
Hz	60
Insulation Class	B
Insulation Type	Class B
Manufacturer Model #	048A11O1596
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Shell Length	5"
Mounting	Stud
Mounting Orientation	Horizontal
Mounting Type	Round - Extended Studs
Number of Speeds	1
Overall Length	12"
Phase	1, 1 Phase
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible
RPM	1075 RPM, 1075
Service Factor	1
Shaft Diameter	1/2"
Shaft Length	6.06"
Ship Weight	18 lbs.
Special Features	Service Factor - 1
Standards	UL Recognized
Supply Voltage	208-230 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
UPC Code	722856037732
Volts	208, 230

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	emotorpro.com	X444	200.29	1	In Stock		Marathon	18.0	200.29 @ 1
	Guardian	MARSX444	290.01	1	In Stock		Marathon		290.01 @ 1
	us.rs-online.com	72237907	293.47	1	In Stock		Marathon Motors		293.47 @ 1
