Marathon Electric X503

B007ZQM85M

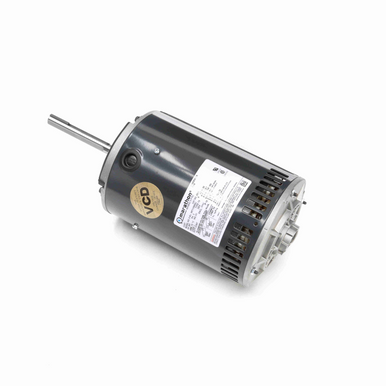

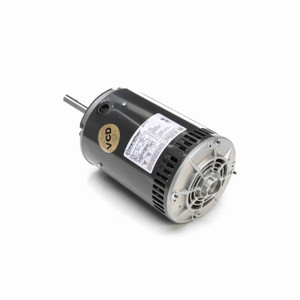

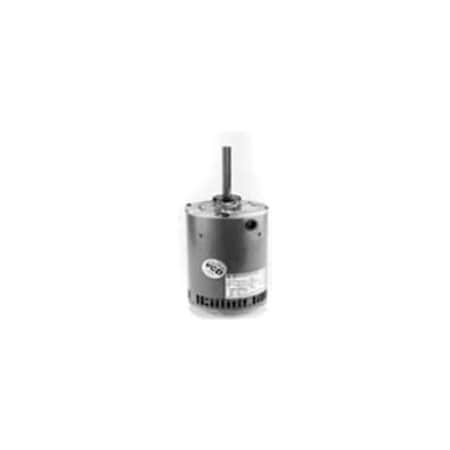

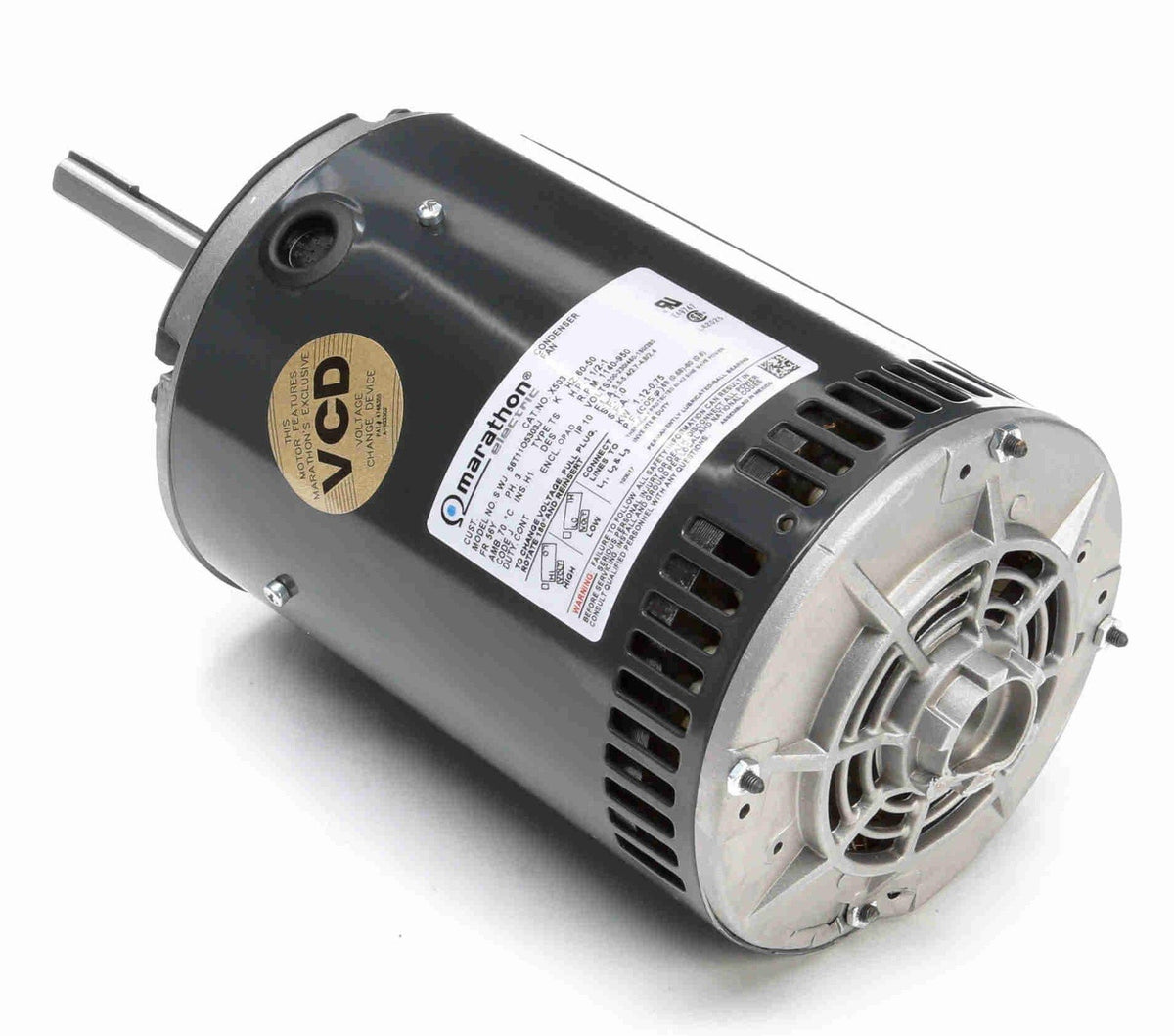

Marathon X503 Oil Burner Motor, Single Phase Capacitor Start, 1/3 hp, 3600 RPM, 115/230V

Marathon X503 Oil Burner Motor, Single Phase Capacitor Start, 1/3 hp, 3600 RPM, 115/230Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T11O5303
Amps5.5-5.4/2.7
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension16.06 (in.)
Catalog NumberX503
CEN
CompositionRolled Steel
CSAY
Current Rating5.5 to 5.4 ; 2.7 A
DE Bearing TypeBall
DEM ReferenceMA#X503
DutyContinuous
Duty CycleContinuous
Efficiency78.5, 0.785
Efficiency %78.5 %
Electrical TypeSquirrel Cage Induction.
EnclosureOpen Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame56Y
Frame MaterialRolled Steel
Frequency50 Hz, 60 Hz, 60/50 Hz,.
Full Load Current5.5 A
Gross Weight0 lbs
Horsepower1-1/2 hp
Horsepower Rating1.50 HP
HP1-1/2
Hz60
Insulation ClassH
Insulation TypeClass H
IP Code10
Item NumberX503
Kilowatts1.1 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #056T11O5303
Manufacturer Part Number056T11O5303
Max Ambient70?C
Maximum Ambient Tempera.70? C
Motor OrientationHorizontal
Motor Shell Length8.56"
MountingBand
Mounting OrientationHorizontal
Mounting TypeRound Belly Band
NEMA Frame56Y
Net Weight35 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length16.06", 16.06 "
Phase3, 3 Phase
Product CategoryHVAC/R Motors > Conden.
Product TypeThree Phase
RotationReversible
RPM1140 RPM, 1140, 1,140 R.
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight35 lbs.
Special FeaturesService Factor - 1
Speeds1
StandardsUL Recognized
Supply Voltage200-230/460 VAC
Thermal ProtectionAutomatic
TypeSquirrel Cage Induction.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856038432
Voltage (AC)200-230 VAC, 460 VAC
Volts200, 230, 460, 200-230/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.netX503348.581In StockMarathon Motors348.58 @ 1
thumbzoomasapelectricmotors.comMARX503390.051In StockMARATHON390.05 @ 1
thumbzoomMRO Supply2269424401.841In StockMARATHON-ELECTRIC401.84 @ 1
thumbzoomapexindustrialautomation.comX503422.411154Marathon422.41 @ 1
thumbzoomemotorpro.comX503427.11In StockMarathon35.0427.1 @ 1
thumbzoomGalcoX503-MARA442.261In StockMarathon Electric35.0442.26 @ 1
thumbzoomelectricmotorwholesale.comX503452.01In StockMARATHON452.0 @ 1
thumbzoommidwestapplianceparts.comX503-MT-P471.3215Marathon471.32 @ 1
thumbzoomNational Supply NetworkB871726490.871In StockMARATHON MOTORS490.87 @ 1
thumbzoomindustrialstores.comX503509.1415Marathon Motors509.14 @ 1
us.rs-online.com72241244513.8912Marathon Motors513.89 @ 1
thumbzoomDreisilkerMA-RBC-X503532.241In StockMarathon532.24 @ 1
thumbzoomnorthstock.comX503560.9912Marathon560.99 @ 1
thumbzoomGuardianMARSX503627.251In StockMarathon627.25 @ 1
kirbyrisk.com507357630.181In StockMarathon630.18 @ 1
thumbzoomZoroG904936945690.991In Stock10Marathon Motors690.99 @ 1
uri.comX5031267.91In StockMarathon37.01267.9 @ 1
