Marathon X432

B0042GFE7W

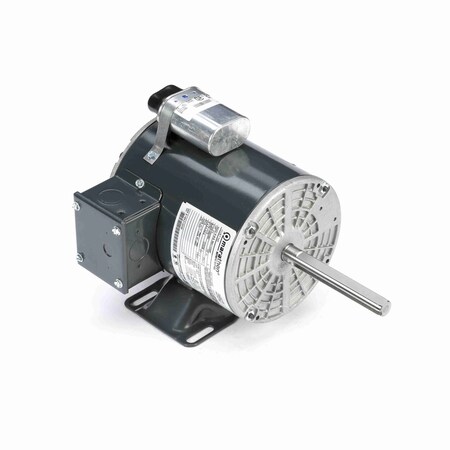

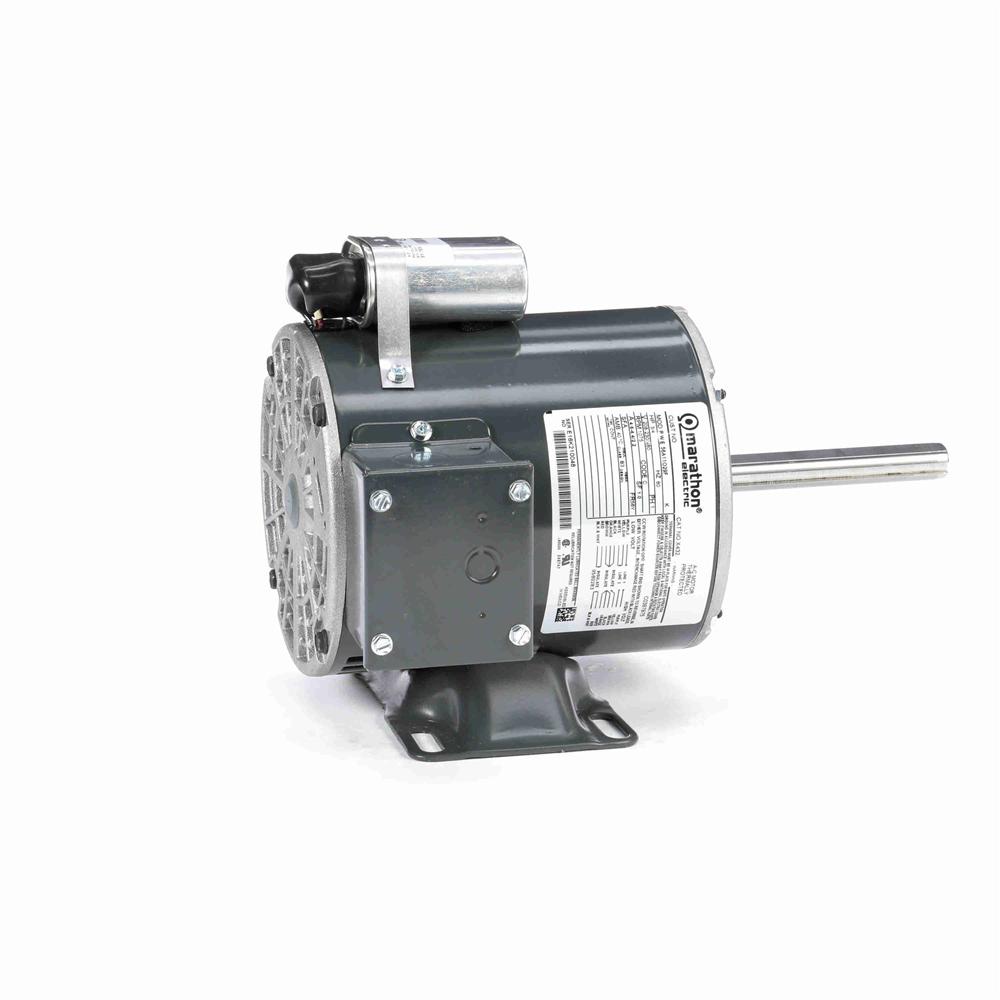

Marathon X432 1/4 HP 460 Volt 48Y Frame Shaft Up Thru-Bolt Mount Condenser Fan Motor - X423

Marathon X432 1/4 HP 460 Volt 48Y Frame Shaft Up Thru-Bolt Mount Condenser Fan Motor - X423zoom

Attributes

Key Value
Alternate Mfr Part Numb.056A11O29
Amps4.6-4.4/2.2
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension11.88 (in.)
CapacitorIncluded
Catalog NumberX432
CEN
CompositionRolled Steel
CSAY
Current Rating4.6 to 4.4 ; 2.2 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency67.3, 0.673
Efficiency %67.3 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
enclosure type:OAO (Open Air-Over)
Family SeriesMarathon Electric Motors
Frame56Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:56Y
Frequency60, 60 Hz
frequency rating:60 Hz
full load current:4.60
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
Insulation TypeClass B
IP Code10
Item NumberX432
Kilowatts0.56 kW
KVA CodeC
ManufacturerMarathon Electric
Manufacturer Model #056A11O29
Manufacturer Part Number056A11O29
Max Ambient40?C
Maximum Ambient Tempera.40? C
motor category:Condenser Fan Motor
motor horsepower:0.75 hp, 3/4 hp
Motor OrientationHorizontal
motor phase:1 ph
Motor Shell Length6"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid, Rigid Base
mounting type:Rigid Base
Net Weight22 lbs
Number of Poles6
Number of Speeds1
ODE Bearing TypeBall
Overall Length11.88", 11.88 "
Phase1, 1 Phase
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075 RPM, 1075, 1,075 R.
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
shaft diameter:0.50 in
Shaft Extension4.5 (in.)
Shaft Length4.5"
Shaft TypeSingle Special Extension
Ship Weight22 lbs.
Special FeaturesService Factor - 1
Speeds1
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage208-230/460 VAC
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856037848
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460, 208-230/.
weight:22 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX432262.01In StockMARATHON262.0 @ 1
thumbzoomasapelectricmotors.comMARX432287.321In StockMARATHON287.32 @ 1
thumbzoommotionindustries.com04738286354.351In StockMarathon Electric354.35 @ 1
thumbzoomapexindustrialautomation.comX432375.33144Marathon375.33 @ 1
thumbzoomGalcoX432-MARA385.211In StockMarathon Electric22.0385.21 @ 1
thumbzoomMRO Supply2269465388.491In StockMarathon Electric388.49 @ 1
thumbzoomSquare OneX432413.541In StockMARATHON413.54 @ 1
thumbzoomZoroG006629493441.991In Stock10Marathon441.99 @ 1
us.rs-online.com72237951456.661In StockMarathon Motors456.66 @ 1
thumbzoomemotorpro.comX432462.031In StockMarathon22.0462.03 @ 1
thumbzoomDreisilkerMA-RBC-X432474.441In StockMarathon474.44 @ 1
thumbzoomNational Supply NetworkB871808478.941In StockMARATHON MOTORS478.94 @ 1
thumbzoommidwestapplianceparts.comX432-MT-P490.261In StockMarathon490.26 @ 1
industrialmotors.comX432514.2151MARATHON ELECTRIC514.2 @ 1
