Marathon GT5206

mpnGT5206
brandname: Marathon Electric
manufacturername: Marathon Electric

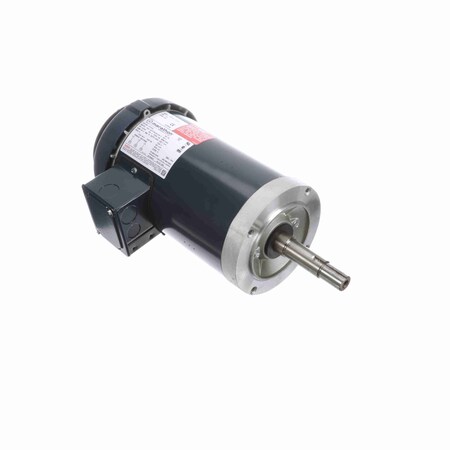

2 hp 3600 RPM 145JMV Frame 575V TEFC Marathon Close Coupled Pump Motor # GT5206

2 hp 3600 RPM 145JMV Frame 575V TEFC Marathon Close Coupled Pump Motor # GT5206

zoom

Brand: Marathon
PartNumber: GT5206
PackageQuantity: 1
Manufacturer: Marathon
Label: Marathon

Attributes

Key	Value
Amps	2
Approvals	CE, CSA, UR
Bearing Type	Ball
Bearings	Ball
Composition	Rolled Steel
Country of Origin (subj.	United States
Duty Cycle	Continuous
Efficiency	0.855
Efficiency %	85.5 %
Enclosure	TEFC, Totally Enclosed .
Enclosure Material	Steel
Enclosure Type	TEFC (Totally Enclosed .
Family Series	Marathon Electric Motors
Frame	145JMV
Frequency	60 Hz
Gross Weight	0 lbs
Horsepower	2 hp
HP	2
Hz	60
Insulation Class	F
Item Number	GT5206
Kilowatts	1.5 kW
Manufacturer	Marathon Electric
Manufacturer Model #	145TTFR16017
Manufacturer Part Number	145TTFR16017
Maximum Ambient Tempera.	40? C
Motor Shell Length	9.06"
Mounting	Face
Mounting Orientation	Horizontal/Vertical Sha.
Mounting Type	Round
NEMA Frame	145JMV
Net Weight	0 lbs
Number of Poles	2
Number of Speeds	1
Overall Length	17.29 ", 17.29"
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	3500, 3600, 3,500 RPM
Service Factor	1.15
Shaft Diameter	0.88 ", 7/8"
Shaft Length	4.25"
Ship Weight	47 lbs.
Voltage	575
Voltage (AC)	575 VAC
Volts	575

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Galco	GT5206-MARA	131.61	1	2		Marathon Electric		131.61 @ 2
	MRO Supply	2271117	132.3	1	2		Marathon Electric		132.3 @ 2
	apexindustrialautomation.com	GT5206	133.36	1	3		Marathon		133.36 @ 2
	emotorpro.com	GT5206	631.15	1	2		Marathon	47.0	631.15 @ 2
	Zoro	G7038758	1132.6	1	2	10	Marathon		1132.6 @ 2
