Marathon U244

B0042GDURI

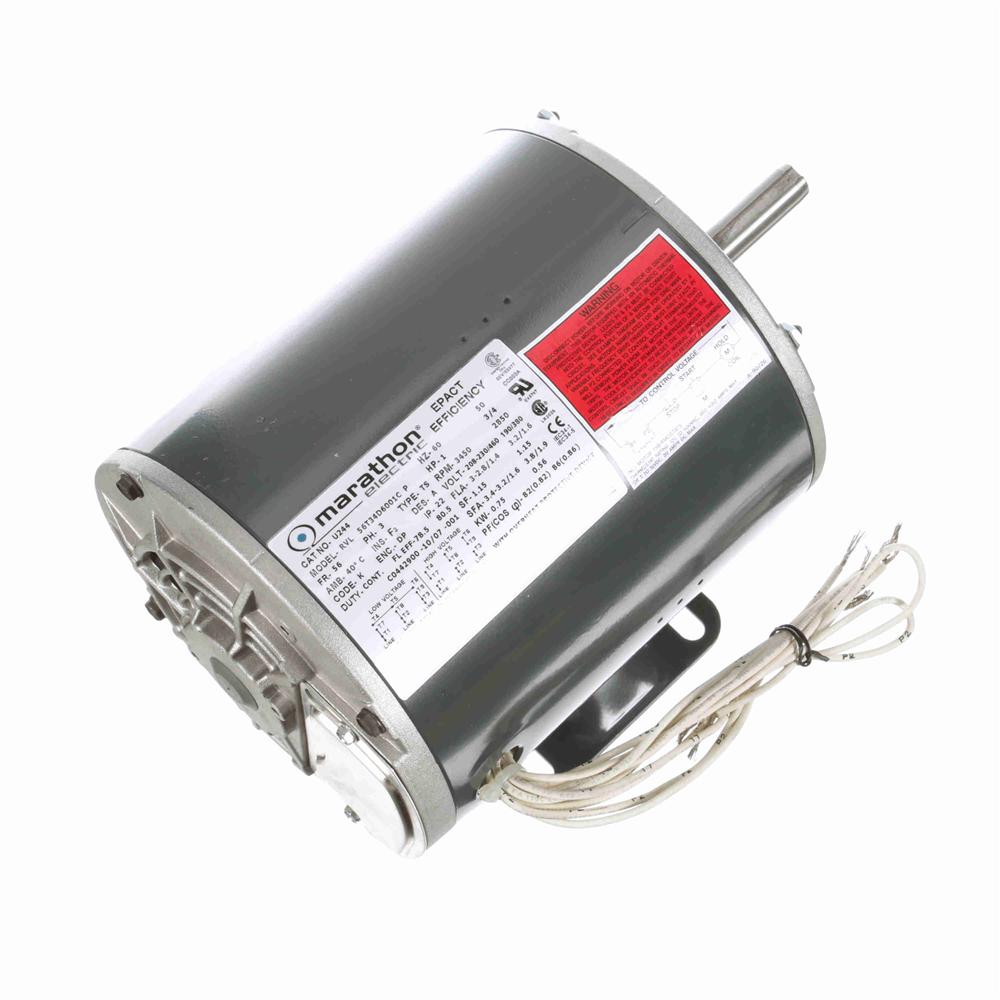

Marathon U244 Premium Efficiency Motor

Marathon U244 Premium Efficiency Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T34D6001
Amps3-2.8/1.4
applications:Blowers and Machinery i.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionSteel
CT Speed Range10:1
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency0.785
Efficiency %80 %
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof)
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motor.
Frame56
frame material:Rolled Steel
frame size:56
frequency rating:60 Hz
full load current:2.80
full load efficiency:80.00 %
Gross Weight0 lbs
Horsepower1 hp
HP1
Hz60
Insulation ClassF
insulation class:F
Inverter DutyYes
ip rating:12
Item NumberU244
ManufacturerMarathon Electric
Manufacturer Model #056T34D6001
Manufacturer Part Number056T34D6001
Maximum Ambient Tempera.40? C
Model Number56T34D6001
Motor Diameter6-1/2"
motor horsepower:1.00 hp, 1 hp
motor phase:3 ph
Motor Shell Length6.56"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid
mounting type:Rigid Base
Net Weight25 lbs
Number of Poles2
Number of Speeds1
Overall Length10.44", 10.18 "
overall length (c-dimen.10.18 in
Overload ProtectionThermostat
Phase3
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM3450, 3400 - 3600, 3,60.
Service Factor1.15
service factor:1.15
Shaft Diameter5/8"
shaft diameter:0.63 in
Shaft Length2.32"
Ship Weight24 lbs.
standards met:UL, CSA
synchronous rpm:3600 rpm
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208, 230, 460
weight:24 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoU244-MARA108.34110In StockMarathon Electric25.0108.34 @ 110
thumbzoomMRO Supply2268362108.921In StockMarathon Electric108.92 @ 1
us.rs-online.com72649816126.681In StockMarathon Motors126.68 @ 1
cbtcompany.comU244144.751In StockMarathon Electric Motors144.75 @ 1
thumbzoomelectricmotorwholesale.comU244313.01In StockMARATHON313.0 @ 1
thumbzoomemotorpro.comU244376.241In StockMarathon24.0376.24 @ 1
thumbzoomasapelectricmotors.comMARU244378.951In StockMARATHON378.95 @ 1
thumbzoommotionindustries.com04738705431.141In StockMarathon Electric431.14 @ 1
AmazonSCB007ZQMEYM451.021In StockMarathon Electric451.02 @ 1
