Marathon Industries U246

B0876D4FF2

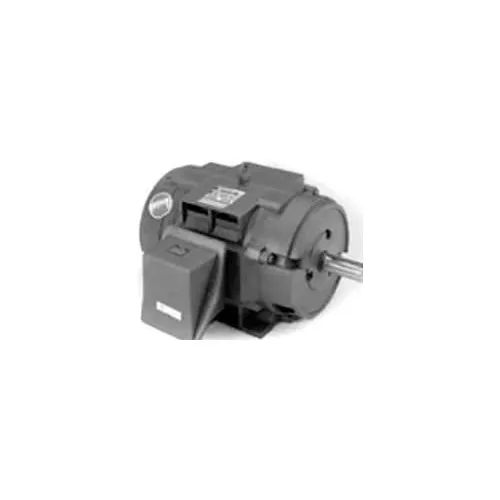

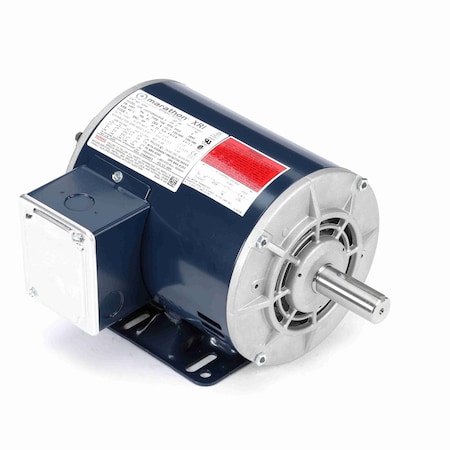

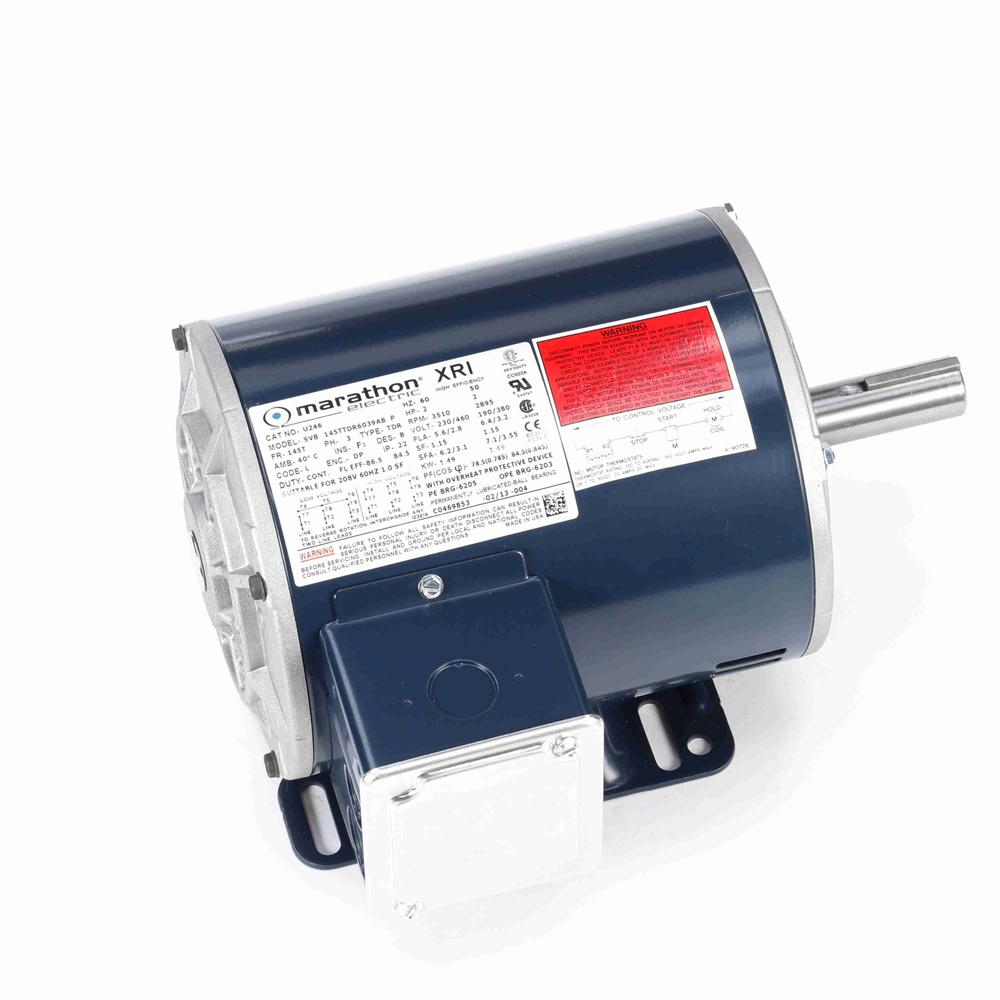

Marathon Motors Premium Efficiency Motor, U246, 2HP, 3600RPM, 208-230/460V, 3PH, 143T FR, DP

Marathon Motors Premium Efficiency Motor, U246, 2HP, 3600RPM, 208-230/460V, 3PH, 143T FR, DPzoom

Attributes

Key Value
Alternate Mfr Part Numb.145TTDR6039
Amps5.6/2.8
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.99 (in.)
Catalog NumberU246
CEY
CompositionSteel
Country of Origin (subj.United States
CSAY
CT Speed Range10:1
DE Bearing TypeBall
DEM ReferenceMA#U246
DutyContinuous
Duty CycleContinuous
Efficiency0.865
Efficiency %85.5 %
Electrical TypeSquirrel Cage Inverter .
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motor.
Frame145T
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:145T
Frame Type145T
Frequency60
frequency rating:60 Hz
full load current:5.20
full load efficiency:85.50 %
Gross Weight0 lbs
Horsepower2 hp
HP2
Hz60
Insulation ClassF
Inverter DutyYes
IP Code22
Item NumberU246
KVA CodeL
ManufacturerMarathon Electric
Manufacturer Model #145TTDR6039
Manufacturer Part Number145TTDR6039
Max Ambient40?C
Maximum Ambient Tempera.40? C
Model Number145TTDR6039
motor horsepower:2.00 hp, 2 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length7.06"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid, Rigi.
mounting type:Rigid Base
NEMA Frame145T
Net Weight31 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.99", 13.12 "
overall length (c-dimen.13.12 in
Overload ProtectionThermostat
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM3510, 3400 - 3600, 3,60.
RPM (Nameplate)3510
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter7/8 (in.), 7/8"
shaft diameter:0.88 in
Shaft Extension2.28 (in.)
Shaft Length2.28"
Shaft TypeT
Ship Weight43 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:3600 rpm
Type of Overload Protec.Thermostats (N/C)
ULRecognized
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts230, 460, 230/460
weight:43 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU246403.01In StockMARATHON403.0 @ 1
thumbzoommotionindustries.com04738258485.671In StockMarathon Electric485.67 @ 1
thumbzoomemotorpro.comU246604.231In StockMarathon43.0604.23 @ 1
thumbzoomMRO Supply2268372620.711In StockMarathon Electric620.71 @ 1
thumbzoomapexindustrialautomation.comU246625.6817Marathon625.68 @ 1
thumbzoomNational Supply NetworkB871489644.991In StockMARATHON MOTORS644.99 @ 1
thumbzoomasapelectricmotors.comMARU246652.11In StockMARATHON652.1 @ 1
thumbzoomGlobal IndustrialWBB871489661.01In Stock14Marathon Motors661.0 @ 1
thumbzoomGalcoU246-MARA711.01In StockMarathon Electric31.0711.0 @ 1
thumbzoomDreisilkerMA-RBC-U246758.031In StockMarathon758.03 @ 1
us.rs-online.com73430945779.281In StockMarathon Motors779.28 @ 1
thumbzoomcbtcompany.comU246837.481In StockMarathon Electric Motors837.48 @ 1
thumbzoomZoroG606629381925.571In Stock35Marathon925.57 @ 1
