Marathon Industries U247

B06XDTG1R4

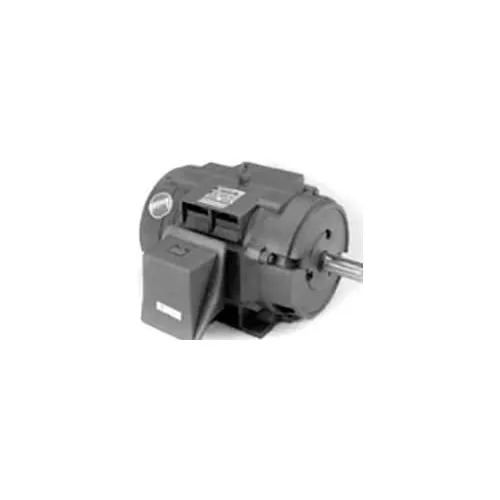

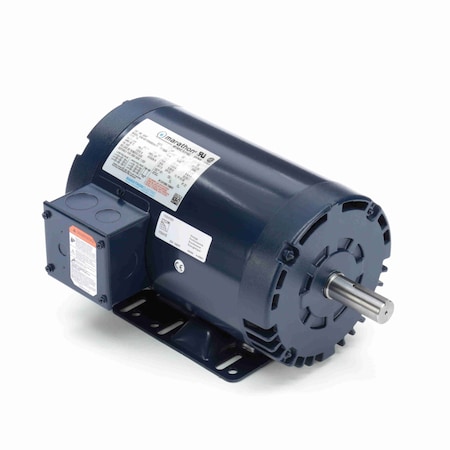

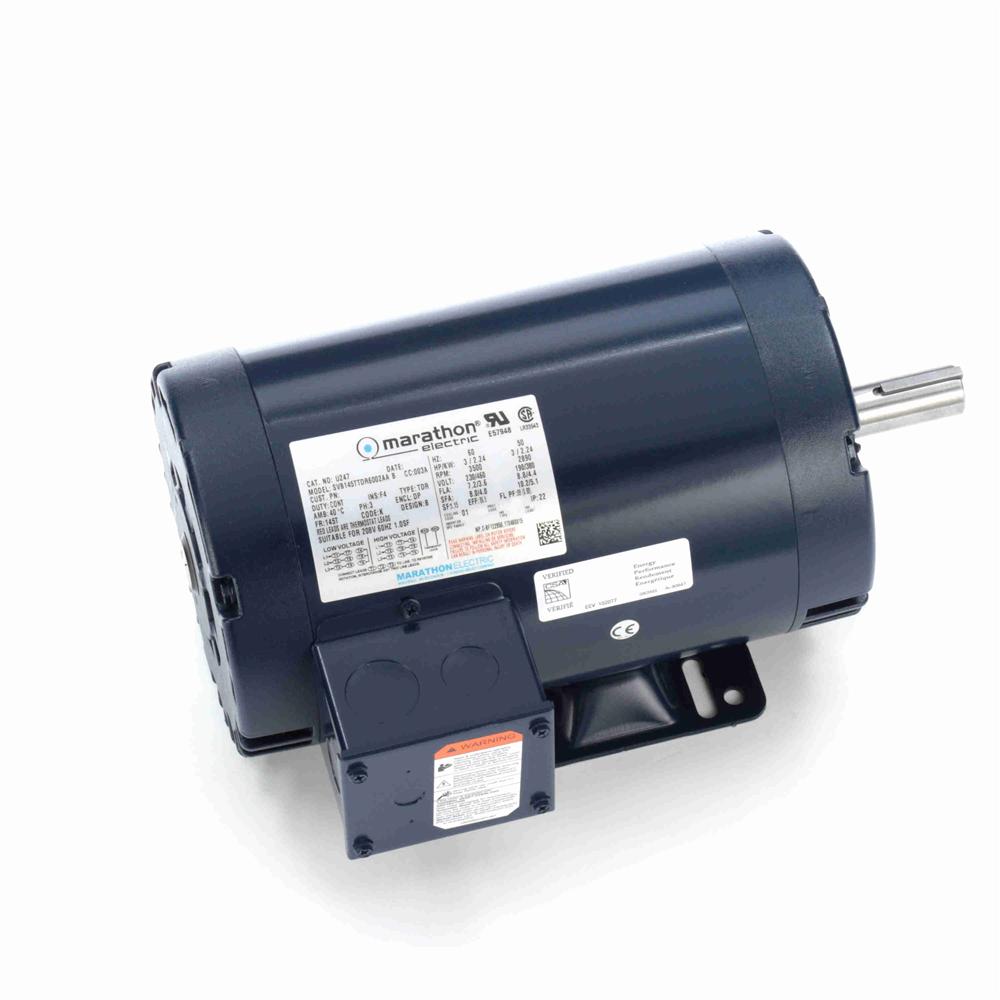

Marathon Motors PEM U247, 3600RPM, 3HP, 3PH, 208-230/460V, 145T FR, DP

Marathon Motors PEM U247, 3600RPM, 3HP, 3PH, 208-230/460V, 145T FR, DPzoom

Attributes

Key Value
Alternate Mfr Part Numb.145TTDR6002
Amps7.2/3.6
applications:Blowers and Machinery i.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension12.69 (in.)
Catalog NumberU247
CEY
CompositionSteel
CSAY
CT Speed Range10:1
DE Bearing TypeBall
DEM ReferenceMA#U247
DutyContinuous
duty / condition type:Inverter Duty
Duty CycleContinuous
Efficiency0.865
Efficiency %86.5 %
Electrical TypeSquirrel Cage Inverter .
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motor.
Frame145T
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:145T
Frame Type145T
Frequency60/50
frequency rating:60 Hz
full load current:8.00
full load efficiency:86.50 %
Gross Weight0 lbs
Horsepower3 hp
HP3
Hz60
Insulation ClassF
insulation class:F
Inverter DutyYes
IP Code22
ip rating:22
Item NumberU247
KVA CodeK
ManufacturerMarathon Electric
Manufacturer Model #145TTDR6002
Manufacturer Part Number145TTDR6002
Max Ambient40?C
Maximum Ambient Tempera.40? C
Model Number145TTDR6002
motor horsepower:3.00 hp, 3 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length7.5"
motor supply voltage:208-230/460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid, Rigi.
mounting type:Rigid Base
NEMA Frame145T
Net Weight46 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
ODE Bearing TypeBall
Overall Length12.69", 13.12 "
overall length (c-dimen.13.12 in
Overload ProtectionThermostat
Package Quantity1
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM2550, 3400 - 3600, 3,60.
RPM (Nameplate)3500
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter7/8 (in.), 7/8"
shaft diameter:0.88 in
Shaft Extension2.38 (in.)
Shaft Length2.38"
Shaft TypeT
Ship Weight45 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:3600 rpm
thermal protection:Thermostat
Type of Overload Protec.No
ULRecognized
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts230, 460, 230/460
weight:45 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU247407.01In StockMARATHON407.0 @ 1
AmazonTPB007ZQMGK4425.441In Stock2Marathon Electric425.44 @ 1
thumbzoommotionindustries.com04738259492.141In StockMarathon Electric492.14 @ 1
thumbzoomemotorpro.comU247612.241In StockMarathon45.0612.24 @ 1
thumbzoomMRO Supply2268373628.571In StockMarathon Electric628.57 @ 1
thumbzoommidwestapplianceparts.comU247-MT-P648.8311Marathon648.83 @ 1
thumbzoomNational Supply NetworkB871490652.351In StockMARATHON MOTORS652.35 @ 1
thumbzoomasapelectricmotors.comMARU247660.811In StockMARATHON660.81 @ 1
thumbzoomGlobal IndustrialWBB871490669.01In StockMarathon Motors669.0 @ 1
thumbzoomGalcoU247-MARA720.01In StockMarathon Electric46.0720.0 @ 1
thumbzoomDreisilkerMA-RBC-U247767.631In StockMarathon767.63 @ 1
kirbyrisk.com3099382785.41In StockMarathon785.4 @ 1
us.rs-online.com73431505789.521In StockMarathon Motors789.52 @ 1
thumbzoomZoroG202060847842.991In StockMarathon842.99 @ 1
cbtcompany.comU247880.921In StockMarathon Electric Motors880.92 @ 1
