Marathon Electric U250

mpnU250
brandname: Marathon Electric
manufacturername: Marathon Electric

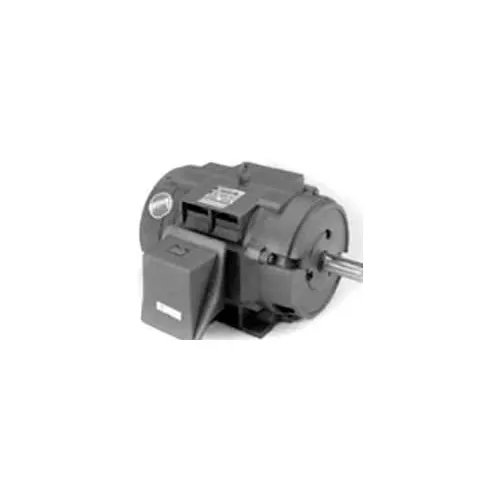

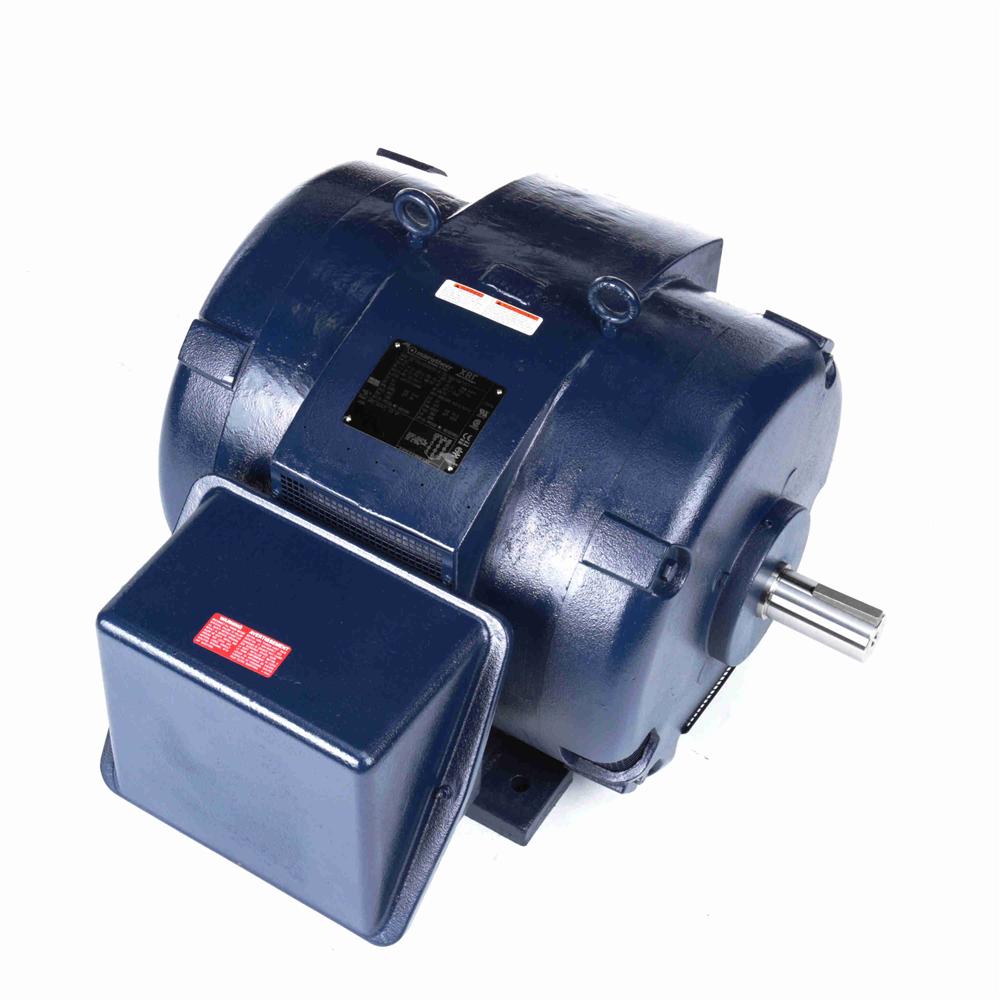

U250 404TSTDS6001 125 Hp 460 3 PH. 404TS FR. 3600 Rpm

U250 404TSTDS6001 125 Hp 460 3 PH. 404TS FR. 3600 Rpm

zoom

Brand: Marathon Electric
PartNumber: U250
PackageQuantity: 1
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Amps	138
Bearings	Ball
Duty Cycle	Continuous
Efficiency	0.95
Enclosure Material	Iron
Enclosure Type	ODP (Open Dripproof)
Frame	404TS
HP	125
Hz	60
Insulation Class	F
Manufacturer Model #	404TSTDS6001
Maximum Ambient Tempera.	40? C
Motor Shell Length	15.5"
Mounting	Base
Mounting Orientation	Horizontal
Number of Speeds	1
Overall Length	29.5"
Phase	3
Product Type	Three Phase
Rotation	Reversible
RPM	3565
Service Factor	1.15
Shaft Diameter	2-1/8"
Shaft Length	4.49"
Ship Weight	973 lbs.
Volts	460

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Global Industrial	WBB871491	8251.0	1	In Stock	17	Marathon Motors		8251.0 @ 1
	emotorpro.com	U250	8345.66	1	In Stock		Marathon	973.0	8345.66 @ 1
