Marathon Electric X305

mpnX305
brandname: Marathon Electric
manufacturername: Marathon Electric

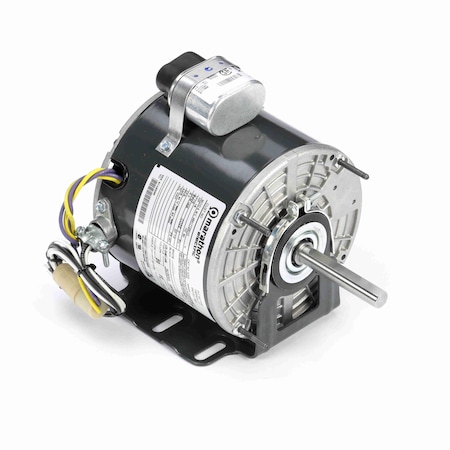

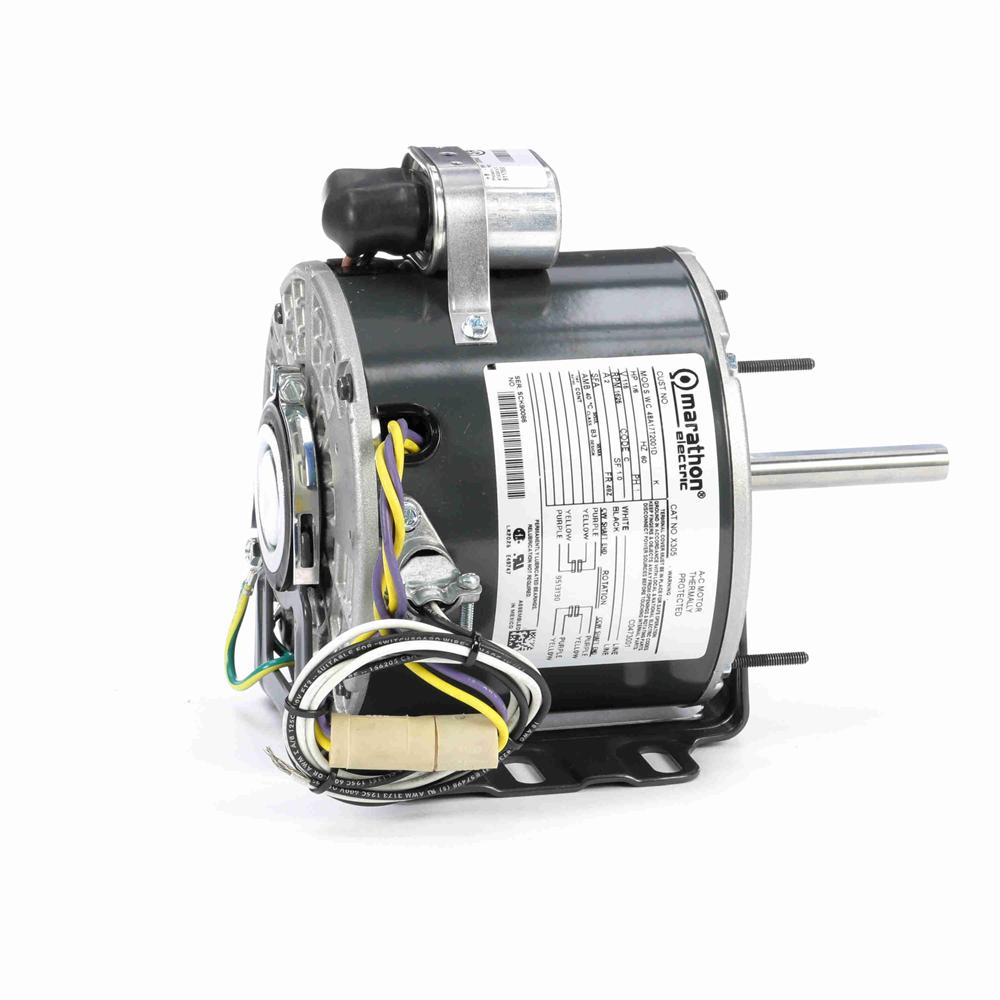

Marathon X305 48Y Frame Totally Enclosed 48A17T2001 Unit Heater Motor 1/6 hp, 1625 RPM, 115 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Resilient Ring Mount

Brand: Marathon Electric
PartNumber: X305
Model: MX305
PackageQuantity: 1
Binding: Misc.
Manufacturer: Marathon Electric
Label: Marathon Electric

Attributes

Key	Value
Alternate Mfr Part Numb.	048A17T2001
Amps	2.2, 2
Approvals	CSA, UR
Bearing Type	Ball
Bearings	Ball
Brand	Marathon
C-Dimension	8.50 (in.) (in.)
Capacitor	Included
Catalog Number	X305
CE	N
Composition	Rolled Steel
CSA	Y
Current Rating	2.2 A
DE Bearing Type	Ball
DEM Reference	MA#X305
Duty	Continous
Duty Cycle	Continuous
Efficiency	55, 0.55
Efficiency %	55 %
Electrical Type	Permanent Split Capacit.
Enclosure	TEAO, Totally Enclosed .
Enclosure Material	Steel
Enclosure Type	TEAO (Totally Enclosed .
Family Series	Marathon Electric Motors
Frame	48Z
Frame Material	Rolled Steel
Frame Type	48Z
Frequency	60, 60 Hz
Gross Weight	0 lbs
Horsepower	1/6 hp
Horsepower Rating	0.17 HP
HP	1/6
Hz	60
Insulation Class	B
Insulation Type	Class B
IP Code	43
Item Number	X305
Kilowatts	0.13 kW
KVA Code	C
Manufacturer	Marathon Electric
Manufacturer Model #	048A17T2001
Manufacturer Part Number	048A17T2001
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Diameter	5-5/8"
Motor Orientation	Horizontal
Motor Shell Length	4.25"
Mounting	Base/Stud
Mounting Orientation	Horizontal
Mounting Type	Resilient Base - Extend.
Net Weight	13 lbs
Number of Poles	4
Number of Speeds	1
ODE Bearing Type	Ball
Overall Length	8.5 ", 8.5"
Phase	1, 1 Phase
Product Category	HVAC/R Motors > Direct.
Product Type	PSC (Permanent Split Ca.
Rotation	Reversible, Selective C.
RPM	1,625 RPM, 1625 RPM, 16.
RPM (Nameplate)	1625
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
Service Factor	1
Shaft Diameter	0.5 ", 1/2 (in.), 1/2"
Shaft Extension	2.81 (in.) (in.)
Shaft Length	2.81"
Shaft Type	Single Special Extension
Ship Weight	13 lbs.
Special Features	Service Factor - 1
Speeds	1
Standards	UL Recognized
Supply Voltage	115 VAC
Thermal Protection	Automatic
Type	Permanent Split Capacit.
Type of Overload Protec.	Automatic Lock Rotor On.
UL	Recognized
UPC Code	722856041845
Voltage	115
Voltage (AC)	115 VAC
Volts	115

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
electricmotorwholesale.com	X305	142.0	1	In Stock	MARATHON		142.0 @ 1
apexindustrialautomation.com	X305	183.92	1	3	Marathon		183.92 @ 1
Galco	X305-MARA	188.76	1	In Stock	Marathon Electric	13.0	188.76 @ 1
MRO Supply	2269834	190.75	1	In Stock	Marathon Electric		190.75 @ 1
us.rs-online.com	72238211	223.78	1	In Stock	Marathon Motors		223.78 @ 1
emotorpro.com	X305	232.64	1	In Stock	Marathon	13.0	232.64 @ 1
Dreisilker	MA-RBC-X305	232.96	1	In Stock	Marathon		232.96 @ 1
midwestapplianceparts.com	X305-MT-P	241.28	1	In Stock	Marathon		241.28 @ 1
industrialmotors.com	X305	252.6	1	76	MARATHON ELECTRIC		252.6 @ 1
National Supply Network	B872054	254.94	1	In Stock	MARATHON MOTORS		254.94 @ 1
Zoro	G2530583	259.37	1	1	Marathon		259.37 @ 1
Guardian	MARSX305	294.35	1	In Stock	Marathon		294.35 @ 1
