Marathon Electric X400

B007ZQLJBG

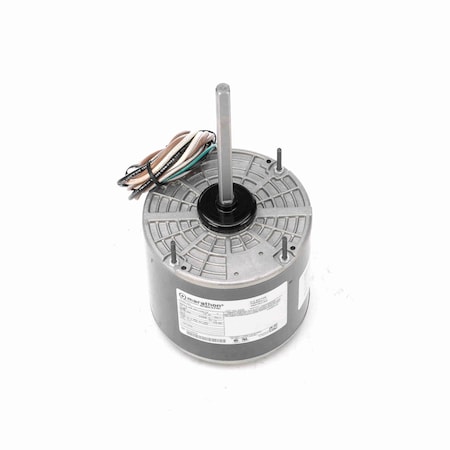

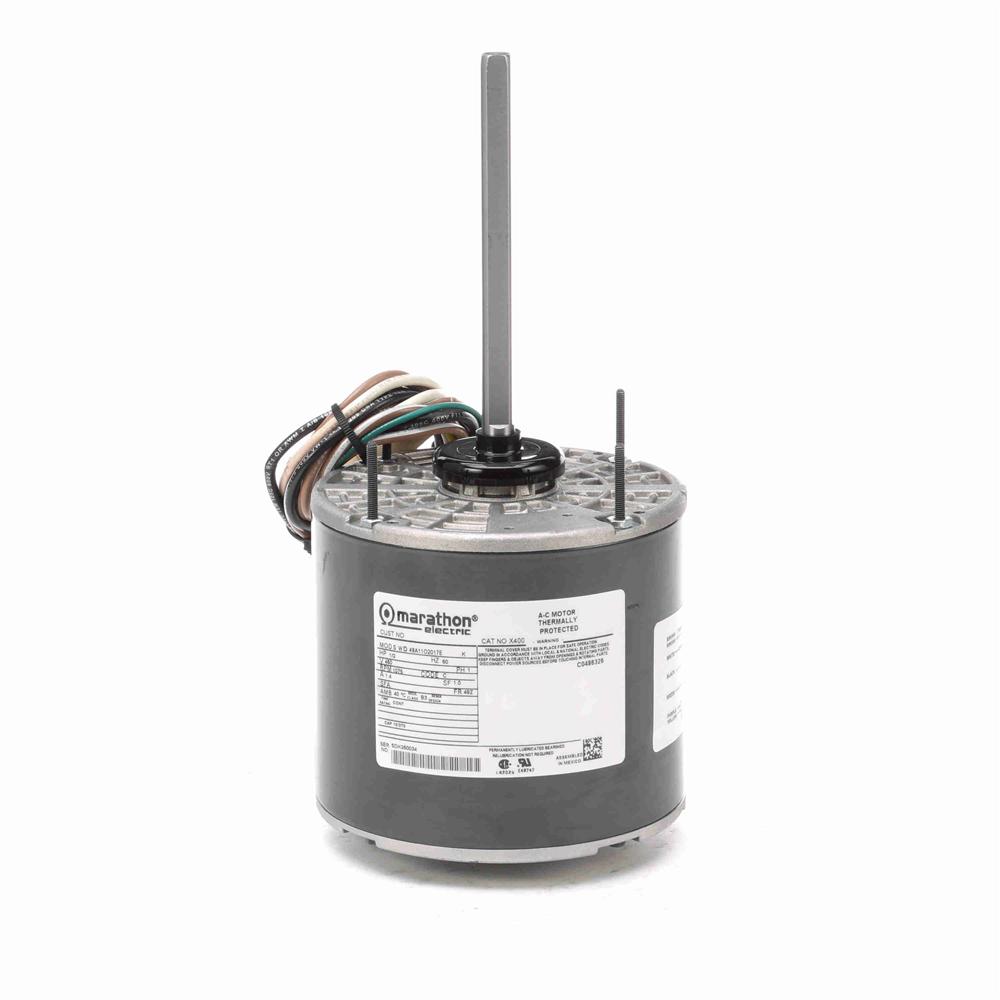

Marathon X400 48Y Frame Open Air Over 48A11O2017 Condenser Fan Motor 1/2 hp, 1075 RPM, 460 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X400 48Y Frame Open Air Over 48A11O2017 Condenser Fan Motor 1/2 hp, 1075 RPM, 460 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O2017
Amps1.4
BearingsBall
BrandMarathon
C-Dimension11.94 (in.)
Capacitor10MFD/370VAC Required
Catalog NumberX400
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinous
Duty CycleContinuous
Efficiency0.62
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
Frame48Z
Frame MaterialRolled Steel
Frequency60
Gross Weight0 lbs
HP1/2
Hz60
Insulation ClassB
IP Code10
KVA CodeC
Manufacturer Model #048A11O2017
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length4.5"
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound - Extended Studs
Number of Speeds1
ODE Bearing TypeBall
Overall Length11.94"
Phase1
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension6.06 (in.)
Shaft Length6.06"
Shaft TypeSingle Special Extension
Ship Weight16 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage460
Volts460
