Marathon Electric X462

B007ZQLZ6U

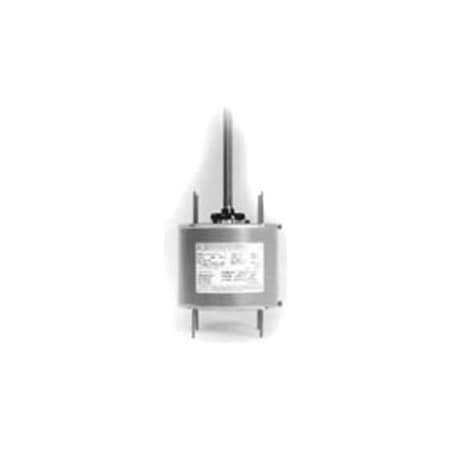

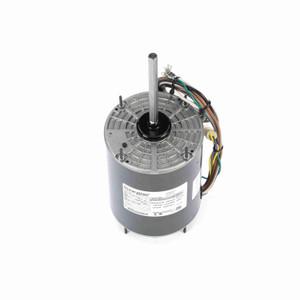

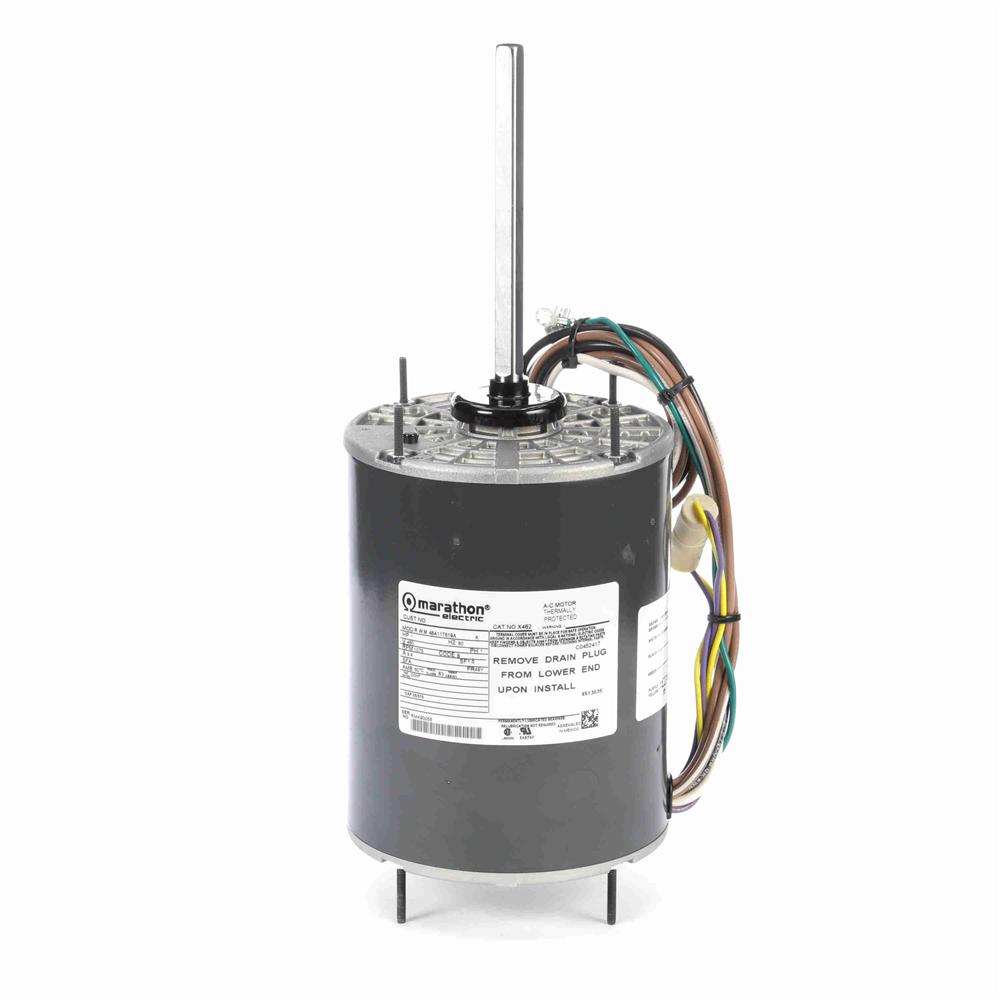

Marathon X462 48Y Frame 48A11T619 Totally Enclosed Condenser Fan Motor, 1 Phase, Permanent Split Capacitor, 1 hp, 1075 RPM, 1 Speed, 460 VAC

Marathon X462 48Y Frame 48A11T619 Totally Enclosed Condenser Fan Motor, 1 Phase, Permanent Split Capacitor, 1 hp, 1075 RPM, 1 Speed, 460 VACzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11T619
Amps3.4
BearingsBall
BrandMarathon
C-Dimension13.75 (in.)
Capacitor25MFD/370VAC Required
Catalog NumberX462
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.68
Electrical TypePermanent Split Capacit.
EnclosureTotally Enclosed Non Ve.
Enclosure MaterialSteel
Enclosure TypeTENV (Totally Enclosed .
enclosure type:TENV (Totally Enclosed .
Frame48Y
Frame MaterialRolled Steel
frame material:Rolled Steel
frame size:48Y
Frequency60
frequency rating:60 Hz
full load current:3.40 A
Gross Weight0 lbs
HP1
Hz60
Insulation ClassB
IP Code43
KVA CodeB
Manufacturer Model #048A11T619
Max Ambient60?C
Maximum Ambient Tempera.60? C
motor category:Condenser Fan Motor
Motor Diameter5-5/8"
motor horsepower:1.00 hp, 1 hp
Motor OrientationHorizontal
motor phase:1 ph
motor supply voltage:460 V
MountingStud
Mounting OrientationHorizontal
Mounting TypeRound
mounting type:Extented Thru-Bolt
Number of Speeds1
ODE Bearing TypeBall
Overall Length13.75"
Package Quantity1
Phase1
Product CategoryHVAC/R Motors > Conden.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
service factor:1.00
Shaft Diameter1/2 (in.), 1/2"
shaft diameter:0.50 in
Shaft Extension6.06 (in.)
Shaft Length6.06"
Shaft TypeSingle Special Extension
Ship Weight27 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage460
Volts460
weight:27 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX462219.01In StockMARATHON219.0 @ 1
thumbzoommotionindustries.com04741333236.861In StockMarathon Electric236.86 @ 1
thumbzoomapexindustrialautomation.comX462244.44150Marathon244.44 @ 1
thumbzoomGalcoX462-MARA250.871In StockMarathon Electric250.87 @ 1
thumbzoomasapelectricmotors.comMARX462251.51In StockMARATHON251.5 @ 1
thumbzoomemotorpro.comX462279.261In StockMarathon27.0279.26 @ 1
us.rs-online.com72650052282.581In StockMarathon Motors282.58 @ 1
thumbzoomNational Supply NetworkB871698282.981In StockMARATHON MOTORS282.98 @ 1
thumbzoommidwestapplianceparts.comX462-MT-P289.6312Marathon289.63 @ 1
thumbzoomDreisilkerMA-RBC-X462307.991In StockMarathon307.99 @ 1
thumbzoomindustrialstores.comX462310.181In Stock10Marathon Motors310.18 @ 1
thumbzoomMRO Supply2269505317.781In StockMarathon Electric317.78 @ 1
thumbzoomnorthstock.comX462349.581In StockMarathon349.58 @ 1
thumbzoomZoroG504936932412.991In Stock10Marathon Motors412.99 @ 1
thumbzoomGuardianMARSX462486.731In StockMarathon486.73 @ 1
uri.comX462733.861In StockMarathon27.0733.86 @ 1
