Marathon Electric X507

B007ZQMASW

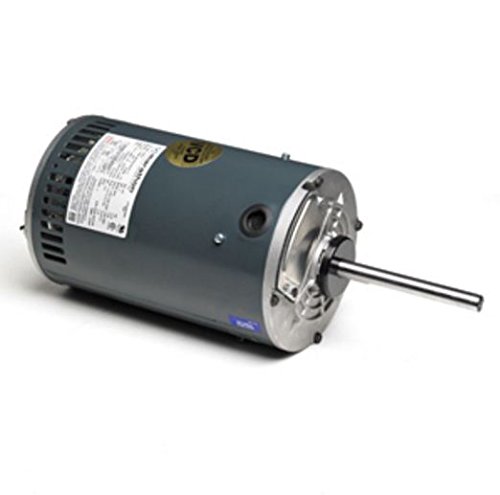

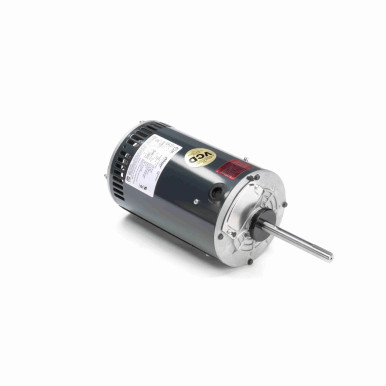

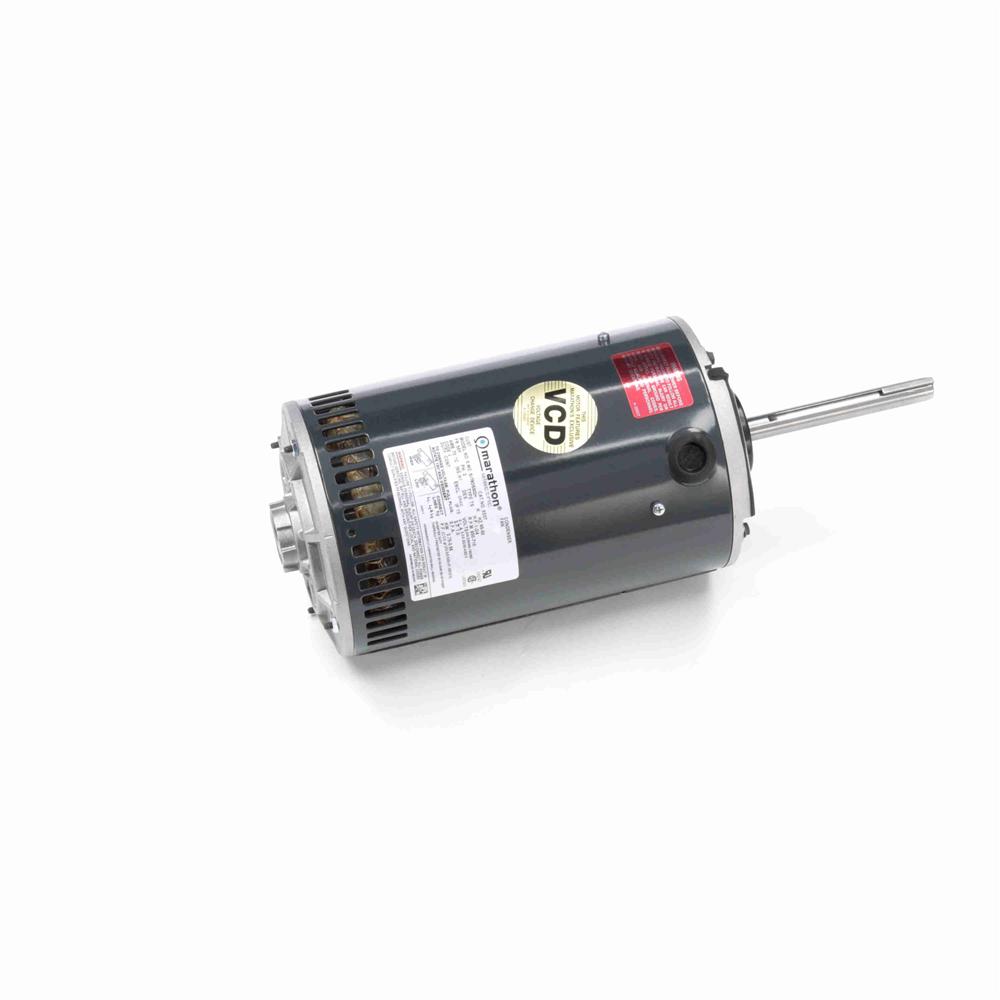

Marathon X507 Condenser Fan/Heat Pump Motor, 3 Phase, 1 hp, 850 RPM, 200-230/460V, 5.3-5.3/2.6 amp

Marathon X507 Condenser Fan/Heat Pump Motor, 3 Phase, 1 hp, 850 RPM, 200-230/460V, 5.3-5.3/2.6 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T8O5302
Amps5.3-5.3/2.65, 5.3-5.3/2.
BearingsBall
BrandMarathon
C-Dimension17.06 (in.)
Catalog NumberX507
CEN
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X507
DutyContinuous
Duty CycleContinuous
Efficiency0.745
Electrical TypeSquirrel Cage Induction.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over)
Frame56Y
Frame MaterialRolled Steel
Frequency60/50
Gross Weight0 lbs
HP1
Hz60
Insulation ClassH
IP Code10
ItemMotor,1Hp,208-230/460V,.
KVA CodeJ
Manufacturer Model #056T8O5302
Max Ambient70?C
Maximum Ambient Tempera.70? C
Motor OrientationHorizontal
Motor Shell Length9.56"
MountingBand
Mounting OrientationHorizontal
Mounting TypeRound Belly Band
Number of Speeds1
ODE Bearing TypeBall
Overall Length17.06"
Phase3
Product CategoryHVAC/R Motors > Commer.
Product TypeThree Phase
RotationReversible
RPM900, 850
RPM (Nameplate)850
RPM (Number of Poles)8 (721 RPM to 900 RPM)
Service Factor1
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight46 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage200/230/460
Volts200, 230, 460, 200-230/.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB871698290.951In StockMarathon Motors290.95 @ 1
AmazonSCB007ZQMASW426.481In StockMarathon Electric426.48 @ 1
thumbzoomelectricmotorwholesale.comX507448.011MARATHON448.0 @ 1
thumbzoomktool.netX507449.641In StockMarathon Motors449.64 @ 1
thumbzoomasapelectricmotors.comMARX507473.781In StockMARATHON473.78 @ 1
thumbzoomGalcoX507-MARA524.961In StockMarathon Electric524.96 @ 1
thumbzoomapexindustrialautomation.comX507527.181172Marathon527.18 @ 1
thumbzoomemotorpro.comX507545.861In StockMarathon46.0545.86 @ 1
thumbzoommidwestapplianceparts.comX507-MT-P578.4813Marathon578.48 @ 1
us.rs-online.com72649983591.321In StockMarathon Motors591.32 @ 1
thumbzoomindustrialstores.comX507604.613Marathon Motors604.6 @ 1
thumbzoomNational Supply NetworkB871728621.911In StockMARATHON MOTORS621.91 @ 1
thumbzoomDreisilkerMA-RBC-X507644.491In StockMarathon644.49 @ 1
thumbzoomMRO Supply2269818695.791In StockMarathon Electric695.79 @ 1
thumbzoomZoroG6461828746.991In StockMarathon46.0746.99 @ 1
thumbzoomGuardianMARSX507755.091In StockMarathon755.09 @ 1
thumbzoomcbtcompany.comX507975.121In StockMarathon Electric Motors975.12 @ 1
uri.comX5071526.241In StockMarathon46.01526.24 @ 1
