Marathon Electric X509

B007ZQMB5O

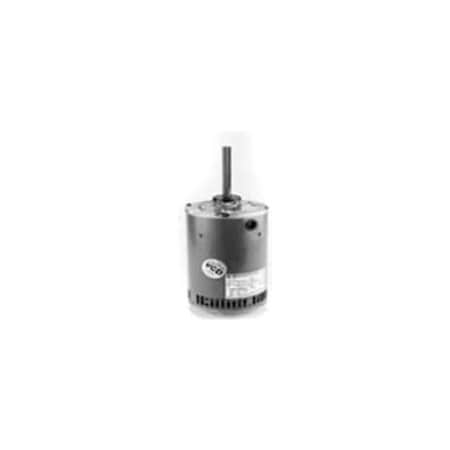

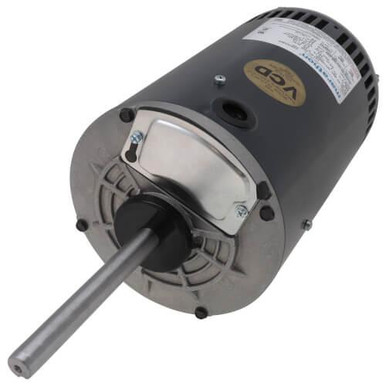

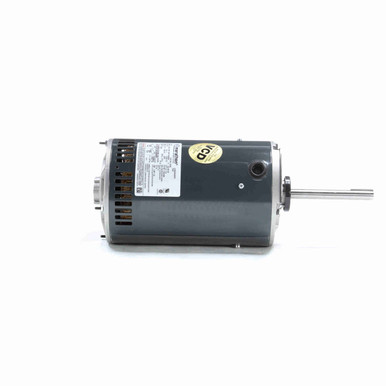

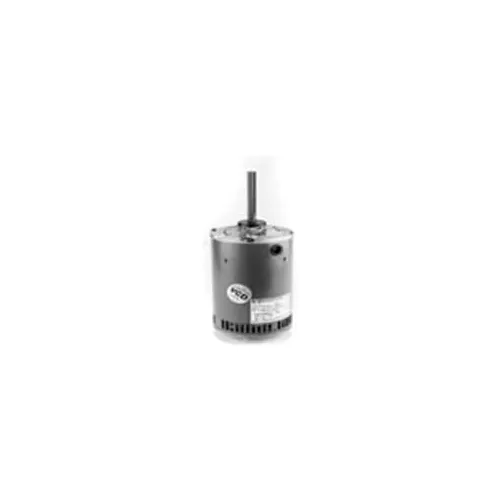

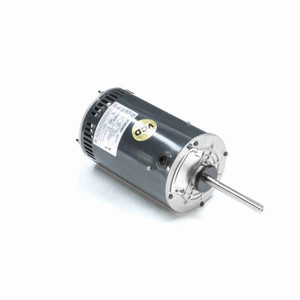

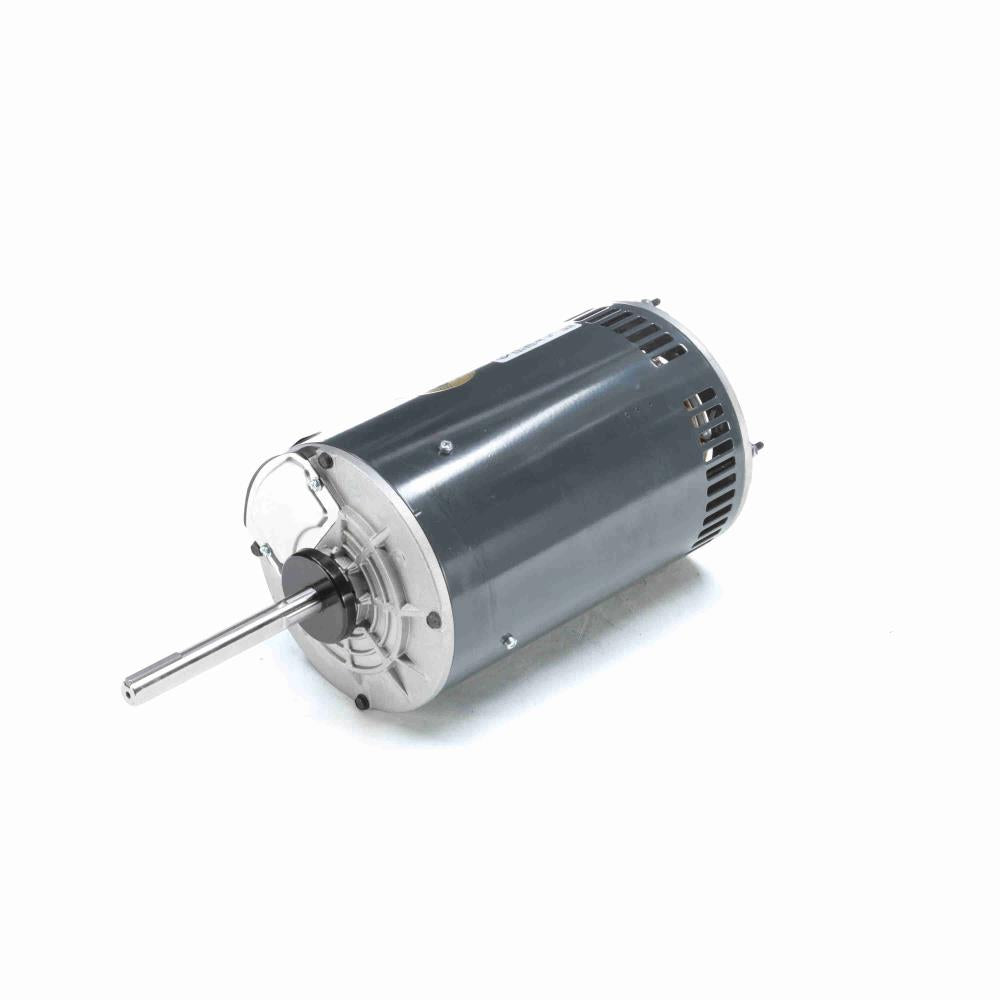

Marathon X509 Condenser Fan/Heat Pump Motor, 3 Phase, 2 hp, 1140 RPM, 208-230/460V, 7.2-6.8/3.4 amp

Marathon X509 Condenser Fan/Heat Pump Motor, 3 Phase, 2 hp, 1140 RPM, 208-230/460V, 7.2-6.8/3.4 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.056T11O5304
Amps7.2-6.8/3.4, 7.2-6.8/3..
BearingsBall
BrandMarathon
C-Dimension17.06 (in.)
Catalog NumberX509
CEN
Country of Origin (subj.United States
CSAY
Current Rating7.2 to 6.8 ; 3.4 A
DE Bearing TypeBall
DEM ReferenceMA#X509
DutyContinuous
Duty CycleContinuous
Efficiency81.5, 81.5%
Electrical TypeSquirrel Cage Induction.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Frame56Y
Frame MaterialRolled Steel
Frequency60/50 Hz, 60/50
Horsepower Rating2 HP
HP2
Hz60
Insulation ClassH
Insulation TypeClass H
IP Code10
KVA CodeJ
Manufacturer Model #056T11O5304
Max Ambient70?C
Maximum Ambient Tempera.70? C
Motor OrientationHorizontal
Motor Shell Length9.56"
Mounting OrientationHorizontal
Mounting TypeBand, Round Belly Band
Number of Speeds1
ODE Bearing TypeBall
Overall Length17.06"
Phase3, 3 Phase
Product CategoryHVAC/R Motors > Conden.
Product Type3 Phase
RotationReversible
RPM1140 RPM, 1140, 1100 - .
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter5/8 (in.), 5/8"
Shaft Extension5.06 (in.)
Shaft Length5.06"
Shaft TypeSingle Special Extension
Ship Weight49 lbs.
Special FeaturesService Factor - 1
Speeds1
StandardsUL Recognized
Supply Voltage208-230/460 VAC
Thermal ProtectionAutomatic
TypeSquirrel Cage Induction.
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
UPC Code722856038456
Voltage208-230/460
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomasapelectricmotors.comMARX509397.231In StockMARATHON397.23 @ 1
thumbzoomktool.netX509426.511In StockMarathon Motors426.51 @ 1
thumbzoomMRO Supply2269419435.981In StockMarathon Electric435.98 @ 1
thumbzoomapexindustrialautomation.comX509476.641181Marathon476.64 @ 1
thumbzoomemotorpro.comX509489.111In StockMarathon49.0489.11 @ 1
thumbzoomelectricmotorwholesale.comX509490.01In StockMARATHON490.0 @ 1
thumbzoomNational Supply NetworkB871729541.831In StockMARATHON MOTORS541.83 @ 1
us.rs-online.com72241245557.5813Marathon Motors557.58 @ 1
thumbzoomGlobal IndustrialWBB871729559.01In StockMarathon Motors559.0 @ 1
thumbzoomindustrialstores.comX509559.9511Marathon Motors559.95 @ 1
thumbzoomDreisilkerMA-RBC-X509577.471In StockMarathon577.47 @ 1
thumbzoomnorthstock.comX509614.981In StockMarathon614.98 @ 1
thumbzoommidwestapplianceparts.comX509-MT-P618.351In StockMarathon618.35 @ 1
thumbzoomptacsolutions.comX509640.0512Marathon Motors640.05 @ 1
thumbzoomGuardianMARSX509680.81In StockMarathon680.8 @ 1
kirbyrisk.com509601683.731In StockMarathon683.73 @ 1
thumbzoomZoroG2049369041014.751In StockMarathon Motors1014.75 @ 1
