Marathon Electric X603

B007ZQMICU

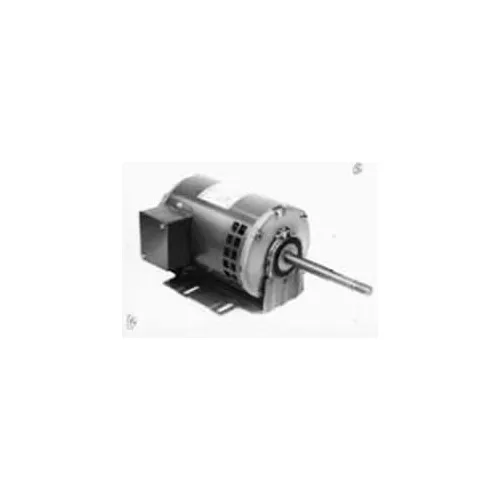

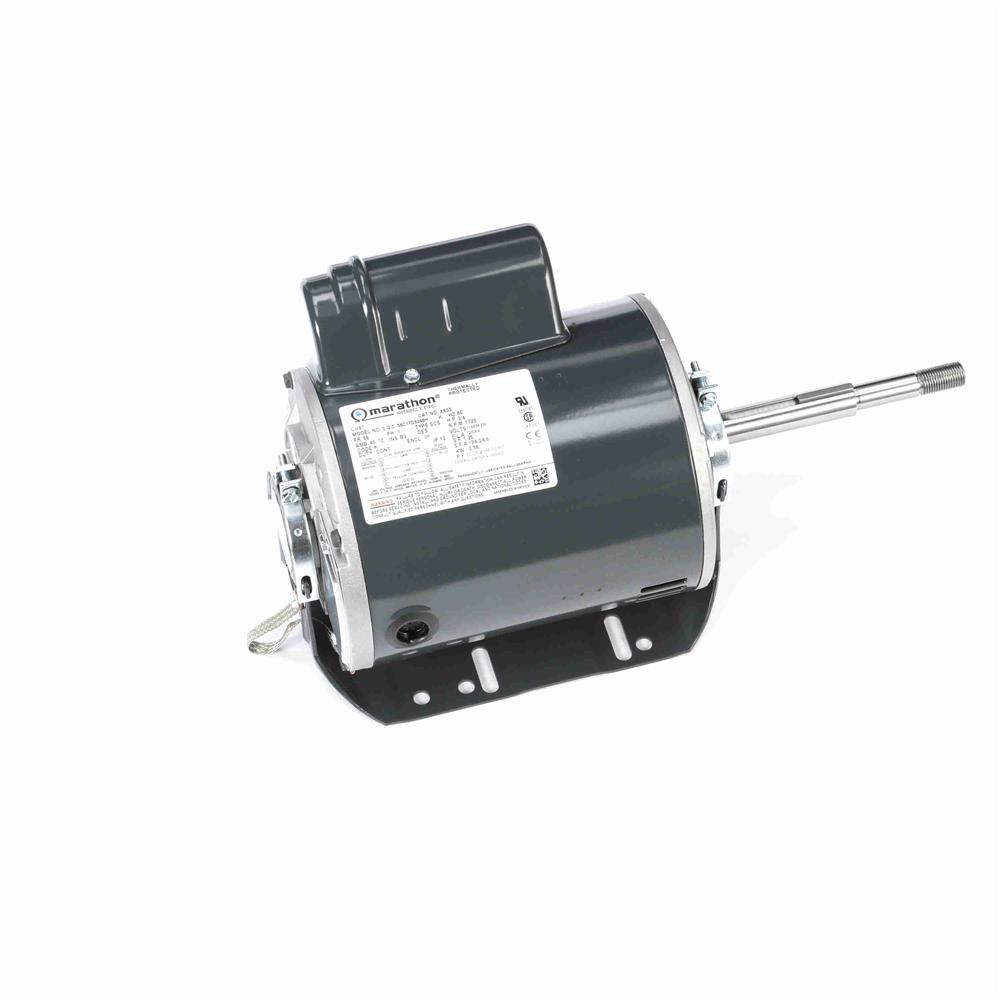

Marathon X603 56Z Frame OEM Huebsch Replacement Motor, Single Phase Capacitor Start/Capacitor Run, Resilient Ring Mount, Open Air Over, 12.0/5.8-6.0 amp, 3/4 hp, 1725 RPM, 115/208-230V

Marathon X603 56Z Frame OEM Huebsch Replacement Motor, Single Phase Capacitor Start/Capacitor Run, Resilient Ring Mount, Open Air Over, 12.0/5.8-6.0 amp, 3/4 hp, 1725 RPM, 115/208-230Vzoom

Attributes

Key Value
Alternate Mfr Part Numb.056C17D5346
Amps12/5.8-6
ApprovalsCE, CSA, UR
Bearing TypeBall
BearingsBall
CompositionRolled Steel
Current Rating12.0 ; 5.8 to 6.0 A
Duty CycleContinuous
Efficiency66, 0.66
Efficiency %66 %
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame56
Frequency60 Hz
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60
Insulation ClassB
Insulation TypeClass B
ItemMotor,115/208-230V,3/4H.
Item NumberX603
Kilowatts0.56 kW
ManufacturerMarathon Electric
Manufacturer Model #056C17D5346
Manufacturer Part Number056C17D5346
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor Shell Length7.06"
MountingBase
Mounting OrientationHorizontal
Mounting TypeResilient Base
Net Weight29 lbs
Number of Poles4
Number of Speeds1
Overall Length15.1", 15.1 "
Package Quantity1
Phase1, 1 Phase
Product TypeCapacitor Start
RotationCW Shaft End
RPM1725, 1725 RPM, 1700 - .
Service Factor1.25
Shaft Diameter0.63 ", 5/8"
Shaft Length5.66"
Ship Weight29 lbs.
Special FeaturesService Factor - 1.25
StandardsUL Recognized
Supply Voltage115/208-230 VAC
Thermal ProtectionAutomatic
TypeCapacitor Start Inducti.
UPC Code722856042040
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115, 208, 230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comX603337.01In StockMARATHON337.0 @ 1
thumbzoomapexindustrialautomation.comX603493.85125Marathon493.85 @ 1
thumbzoomGalcoX603-MARA506.841In StockMarathon Electric29.0506.84 @ 1
thumbzoomMRO Supply2267943511.591In StockMarathon Electric511.59 @ 1
thumbzoomemotorpro.comX603545.131In StockMarathon29.0545.13 @ 1
thumbzoommidwestapplianceparts.comX603-MT-P577.711In StockMarathon577.71 @ 1
thumbzoomNational Supply NetworkB868574593.991In StockMARATHON MOTORS593.99 @ 1
us.rs-online.com72238030600.851In StockMarathon Motors600.85 @ 1
thumbzoomGlobal IndustrialWBB868574628.01In StockMarathon Motors628.0 @ 1
industrialmotors.comX603677.41436MARATHON ELECTRIC677.4 @ 1
thumbzoomZoroG6459098745.991In StockMarathon29.7745.99 @ 1
thumbzoomGuardianMARSX603784.971In StockMarathon784.97 @ 1
