Molex / Waldom 22-04-1041

mpn0022041041
brandname: Molex
manufacturername: Molex

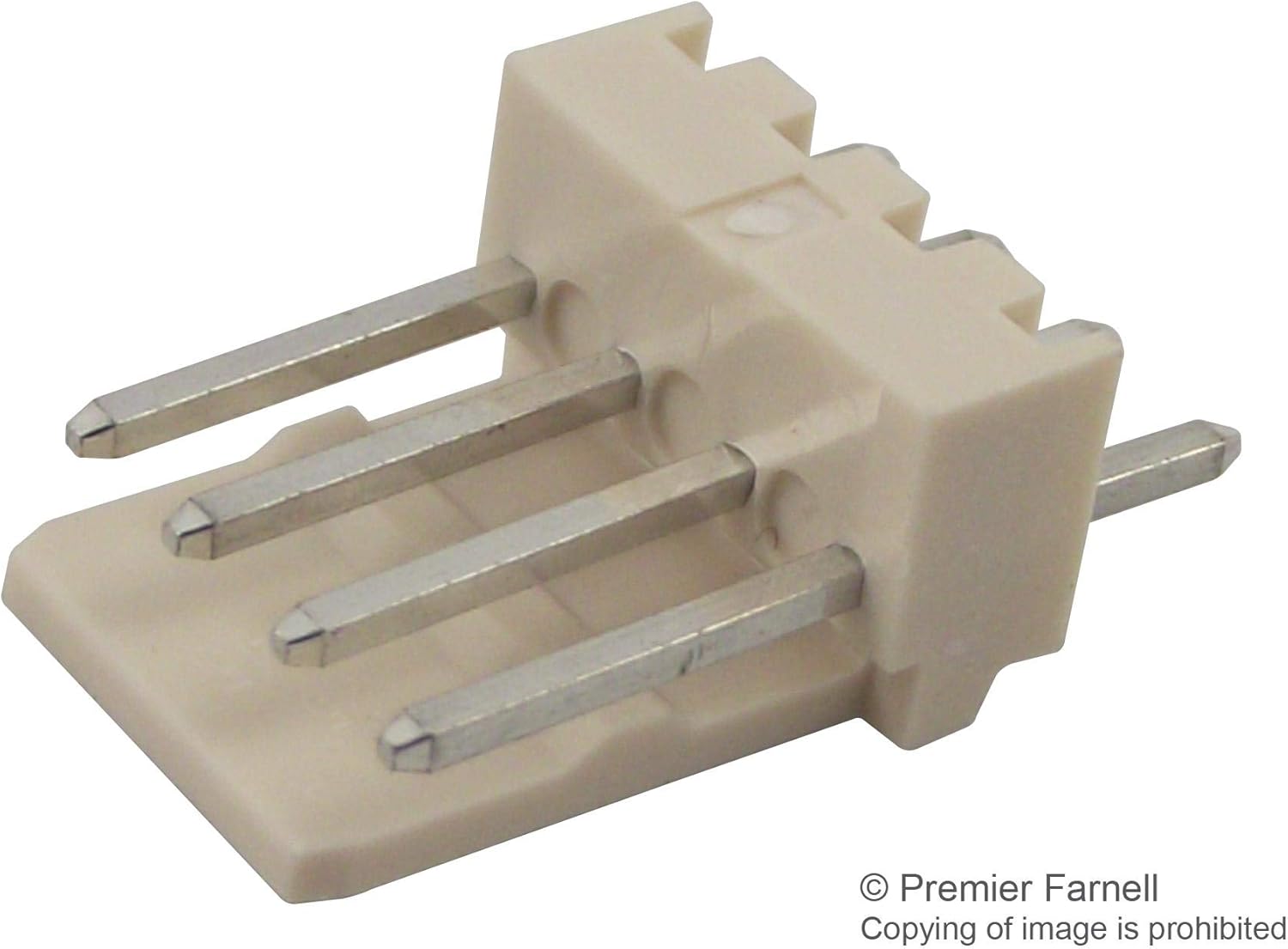

22-04-1041, Conn Wire to Board HDR 4 POS 2.5mm Solder ST Thru-Hole KK Bag (100 Items)

22-04-1041, Conn Wire to Board HDR 4 POS 2.5mm Solder ST Thru-Hole KK Bag (100 Items)

zoom

Brand: Molex / Waldom
PartNumber: 22-04-1041
Model: 22-04-1041
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5045-04A
Applications	-
ASIN	B00HKIMLOI
Category	Connectors, Interconnec.
Color	Natural
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	200.0?in (5.08?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.295" (7.49mm)
Contact Length - Post	0.134" (3.40mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Family Name	KK
Fastening Type	Friction Lock
Features	-
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.461" (11.70mm)
Insulation Material	Polyamide (PA), Nylon
Item model number	22-04-1041
Manufacturer	Molex
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Molex
Mounting Type	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Orientation	Vertical
Overall Contact Length	0.559" (14.20mm)
Package	Box
Part Status	Active
Pitch	2.50 mm (0.098")
Pitch - Mating	0.098" (2.50mm)
Plating Material	Tin
Primary Type	Board Mount
Row Spacing - Mating	-
Series	*, 5045 Series
Shrouding	Shrouded - 1 Wall
Special Features	Low-Halogen
Style	Board to Cable/Wire
Termination	Solder
Type	Vertical Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 22-04-1041	0.273	200	169847		MOLEX		0.273 @ 200
	Power and Signal Group	0022041041	0.3226	16000	50		Molex		0.3226 @ 16000
	TME	MX-22-04-1041	0.354	3	3914		MOLEX		0.354 @ 50
	jensentools.com	10158678	0.36	1	232842		Molex		0.36 @ 50
	NEP Electronics	22-04-1041	0.3794	200	233047		Molex		0.3794 @ 200
	Avnet	0022041041	0.4	1	523		Molex		0.4 @ 50
	Newark	28C3137	0.684	200	50		MOLEX		0.684 @ 100
	Digi-Key	14688450	0.95	1	50		Molex		0.95 @ 50
	us.rs-online.com	70374412	1.01	5	50		Molex Incorporated		1.01 @ 50
	RS Delivers	687-7222	1.1124	1	1700		Molex		1.1124 @ 50
	Radwell	22-04-1041	1.4	10	50		MOLEX		1.4 @ 50
	Amazon	B00HKIMLOI	8.38	1	50		MOLEX		8.38 @ 50
	Zoro	G4046138	88.0	1	50		Molex		88.0 @ 50
