Molex 43650-1013

B011OA8DBC

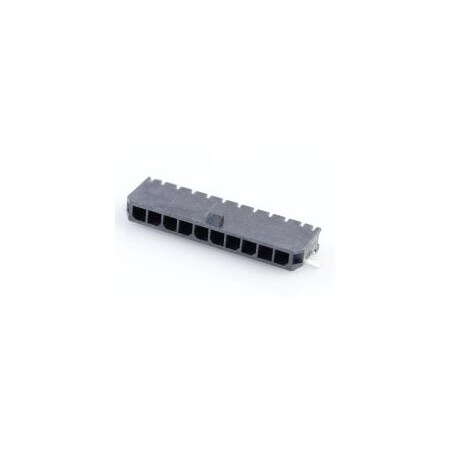

MOLEX 43650-1013 Wire-Board Connector, Header, 10POS, 3MM

MOLEX 43650-1013 Wire-Board Connector, Header, 10POS, 3MMzoom

Attributes

Key Value
Alternate Mfr Part Numb.43650-1013
ApplicationsGeneral Purpose, Medica.
Base Product Number043650
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post-
Contact MaterialBrass
Contact Plating Thickne.0.381 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating8.5 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD R/A 10P.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM2468TR-ND - Tape & Re.
Family NameMicro-Fit 3.0
Fastening TypeLocking Ramp
FeaturesGlow-Wire Capable, Sold.
Flammability RatingUL 94V-0
Hole Center to Center3 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.172" (4.37mm)
Insulation MaterialLiquid Crystal Polymer .
ManufacturerMolex
Manufacturer Product Nu.0436501013
Manufacturer Standard L.12 Weeks
Mated Stacking Heights-
MaterialHigh Temperature Thermo.
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage600V
MfrMolex
Mounting TypeSurface Mount, Right An.
Number of Circuits10
Number of Contacts10
Number of Positions10
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
OrientationRight Angle
Overall Contact Length-
PackageTape & Reel (TR)
Pitch3.00 mm (0.118")
Pitch - Mating0.118" (3.00mm)
Plating MaterialGold
Primary TypeSoft Shell
Product StatusActive
Row Spacing - Mating-
SeriesMicro-Fit 3.0 43650, 43.
ShroudingShrouded - 4 Wall
Special FeaturesLow-Halogen
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeSurface Mount
TerminationSolder, Surface Mount
TypeRight Angle Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 43650-10132.316005760MOLEX2.3 @ 1600
Onlinecomponents.com43650-10132.461960MOLEX / WALDOM2.46 @ 1
Arrow43650-10132.5711394Molex2.57 @ 1
Power and Signal Group04365010132.6731160037Molex2.6731 @ 1600
thumbzoomjensentools.com101896273.0717360Molex3.07 @ 1
thumbzoomRadwell43650-10134.0160037MOLEX4.0 @ 1600
us.rs-online.com700910644.46137Molex Incorporated4.46 @ 1
Mouser538-43650-10134.481564Molex4.48 @ 1
thumbzoomDigi-Key30452865.4812159Molex5.48 @ 1
thumbzoomNewark99Y44865.8811799MOLEX5.88 @ 1
AmazonTPB00GQQMLUO7.121372Molex / Waldom7.12 @ 1
thumbzoomZoroG276542483.38137Molex83.38 @ 1
