Molex / Waldom 87833-5020

mpn0878335020
brandname: Molex
manufacturername: Molex

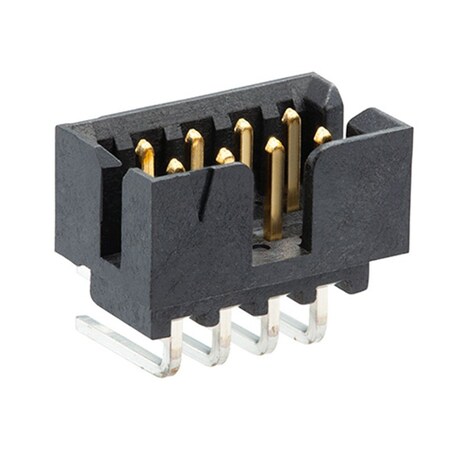

Molex / Waldom 87833-5020 Connector Headers and PCB Receptacles

Brand: Molex / Waldom
PartNumber: 87833-5020
PackageQuantity: 1
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	087833
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	74.8?in (1.90?m)
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 50POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM18872-ND
Family Name	Milli-Grid
Fastening Type	Latch Holder
Features	Surface Mount Compatibl.
Flammability Rating	UL 94V-0
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.248" (6.30mm)
Insulation Material	Polyamide (PA), Nylon, .
Manufacturer	Molex
Manufacturer Product Nu.	0878335020
Manufacturer Standard L.	15 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	265?C
Max. Voltage	125V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Circuits	50
Number of Contacts	50
Number of Positions	50
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-55?C ~ 105?C
Overall Contact Length	-
Package	Tube
Package Quantity	1
Pitch - Mating	0.079" (2.00mm)
Plating Material	Gold
Product Status	Active
Row Spacing - Mating	0.079" (2.00mm)
Series	Milli-Grid 87833, 87833.
Shrouding	Shrouded - 4 Wall
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	MOLEX 87833-5020	2.61	25	5695	MOLEX	2.61 @ 25
jensentools.com	10197850	3.48	1	28	Molex	3.48 @ 1
us.rs-online.com	71465684	4.67	1	28	Molex Incorporated	4.67 @ 1
Digi-Key	718135	5.74	1	617	Molex	5.74 @ 1
Newark	01AH8811	6.06	1	2	MOLEX	6.06 @ 1
Zoro	G805890971	113.75	1	28	Molex	113.75 @ 1
