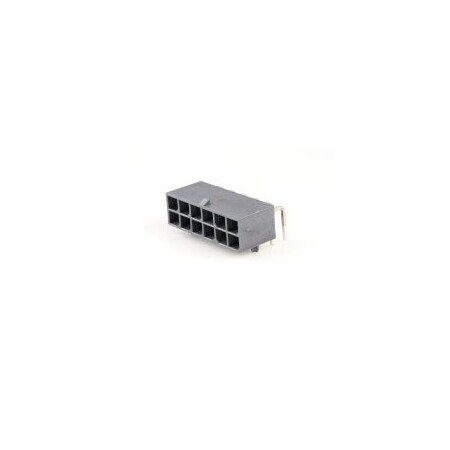

172064-0012, Conn Power HDR 12 POS 5.7mm Solder RA Thru-Hole 12 Terminal 1 Port Mega-Fit Tray (5 Items)
- Brand: Molex / Waldom
- PartNumber: 172064-0012
- Model: 172064-0012
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 172064-0012 |
| Alternate Part No. | 538-172064-0012 |
| Angle | Right Angle |
| Applications | Automotive, General Pur. |
| Base Product Number | 172064 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header, Male Pin |
| Contact Finish - Mating | 15.0?in (0.38?m), Gold |
| Contact Finish - Post | Copper, Tin |
| Contact Finish Thicknes. | Tin, 15.0?in (0.38?m) |
| Contact Finish Thicknes. | Automotive, General Pur. |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.142" (3.60mm), - |
| Contact Length - Post | 0.142" (3.60mm), - |
| Contact Material | Copper, Copper Alloy, L. |
| Contact Plating | Gold |
| Contact Shape | Square, Gold |
| Contact Type | 0.224" (5.70mm), Male P. |
| Current Rating | 23 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER R/A 12POS 5. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM10396-ND |
| Family Name | Mega-Fit |
| Fastening Type | -, Locking Ramp |
| Features | -, Board Guide, Glow Wi. |
| Flammability Rating | UL 94 V-0 |
| Housing Material | Thermoplastic |
| Ingress Protection | UL94 V-0, - |
| Insulation Color | Black, - |
| Insulation Height | Square, 0.572" (14.53mm) |
| Insulation Material | Board Guide, Glow Wire . |
| Manufacturer | Molex |
| Manufacturer Part No. | 172064-0012 |
| Manufacturer Product Nu. | 1720640012 |
| Manufacturer Standard L. | 20 Weeks |
| Mated Stacking Heights | -, 100.0?in (2.54?m) |
| Material Flammability R. | UL94 V-0, Black |
| Mfr | Molex |
| Mounting Angle | Right |
| Mounting Type | Solder, Through Hole, R. |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Positions | 12, 2 |
| Number of Positions Loa. | All, Board to Cable/Wire |
| Number of Rows | 0.224" (5.70mm), 2 |
| Operating Temperature | - |
| Operating Temperature R. | - 40 C to + 105 C |
| Orientation | Right Angle |
| Overall Contact Length | -, 0.572" (14.53mm) |
| Package | Active, Tray |
| Package Quantity | 1 |
| Packaging | Tray |
| Part Status | Header |
| Pitch | 5.70 mm (0.224") mm, 5.. |
| Pitch - Mating | 0.224" (5.70mm), 12 |
| Plating Material | Gold |
| Primary Type | Soft Shell |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Header Assemblies |
| Row Spacing - Mating | 0.224" (5.70mm), All |
| Series | Mega-Fit, 172064, Tray,. |
| Shrouding | Shrouded - 4 Wall, Thro. |
| Special Features | Low-Halogen |
| Style | Board to Cable/Wire, Sh. |
| Termination | Solder, Through Hole, L. |
| Termination Post Length | 3.6 mm |
| Termination Style | Through Hole |
| Tradename | Mega-Fit |
| Type | Right Angle Header, Plu. |
| Voltage Rating | -, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | 172064-0012 | 4.78 | 1 | 288 | | MOLEX / WALDOM | | 4.78 @ 100 |
| Waldom | MOLEX 172064-0012 | 5.79 | 10 | 100 | | MOLEX | | 5.79 @ 100 |
 | Digi-Key | 4515282 | 8.3052 | 1 | 936 | | Molex | | 8.3052 @ 100 |
 | Newark | 17AC6464 | 8.99 | 1 | 100 | | MOLEX | | 8.99 @ 100 |
| RS Delivers | 797-5910P | 9.972 | 1 | 100 | | Molex | | 9.972 @ 100 |
| us.rs-online.com | 70378153 | 10.6 | 1 | 100 | | Molex Incorporated | | 10.6 @ 100 |
 | TME | MX-172064-0012 | 12.38 | 1 | 100 | | MOLEX | | 12.38 @ 100 |
 | swatee.com | 172064-0012 | 16.63 | 1 | 250 | | Molex | | 16.63 @ 100 |
 | Zoro | G2755100 | 98.5 | 1 | 100 | | Molex | | 98.5 @ 100 |
