Molex / Waldom 46114-6241

B07QL3FG86

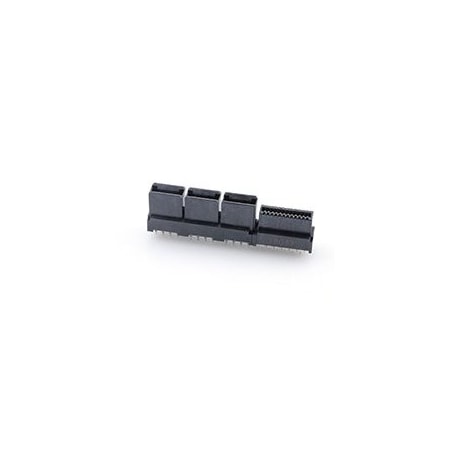

46114-6241, Conn LPH RCP 30 POS 1.27mm Press Fit ST Thru-Hole 30 Terminal 1 Port Extreme LPHPower Tray (5 Items)

46114-6241, Conn LPH RCP 30 POS 1.27mm Press Fit ST Thru-Hole 30 Terminal 1 Port Extreme LPHPower Tray (5 Items)zoom

Attributes

Key Value
(p)ower-(s)ignal Config.6p - 24s
ApplicationBoard-to-Board, Power
Circuits (Loaded)30
Circuits (maximum)30
Color - ResinBlack
Current - Maximum per C.30.0A
Material - MetalHigh Performance Alloy .
Material - Plating Mati.Gold
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Number of Rows2
OrientationVertical
Pitch - Mating Interface1.27mm, 12.00mm
Pitch - Termination Int.1.27mm, 2.50mm
Plating min - Mating0.762?m
Plating min - Terminati.2.540?m
Polarized to Mating PartYes
Polarized to PCBYes
Product NameEXTreme LPHPower
Series46114
Surface Mount Compatibl.Yes
Temperature Range - Ope.-40? to +105?C
Termination Interface: .Through Hole - Complian.
Voltage - Maximum250V AC (RMS)/DC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com46114-62417.331236MOLEX / WALDOM7.33 @ 25
thumbzoomjensentools.com101902818.74125Molex8.74 @ 25
Newark77AC957610.76125MOLEX10.76 @ 25
thumbzoomRadwell46114-624116.022525MOLEX16.0 @ 225
AmazonTPB07QL3FG8662.141251Molex / Waldom62.14 @ 25
thumbzoomZoroG4046880101.9125Molex101.9 @ 25
