NKK Switches YB25MKW01

B00KTWXRKE

NKK Switches Part Number YB25MKW01

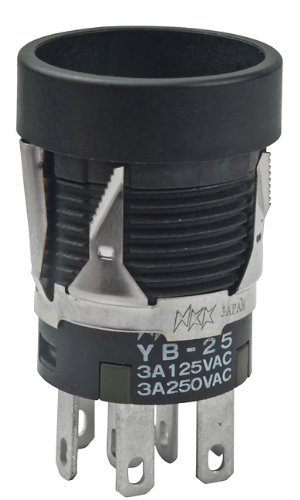

NKK Switches Part Number YB25MKW01zoom

Attributes

Key Value
AC contacts rating @R3A / 250V AC
Actuator MarkingNo Marking
Actuator TypePlunger for Cap
Base Product NumberYB25MK
Body colourblack
Body dimensions?18x22.3mm
Body materialpolyamide
CategorySwitches
CircuitDPDT
Color - Actuator/Cap-
Conform to the normCSA
Contact materialphosphor bronze
Contact platingsilver plated
Contacts configurationDPDT
Current Rating (Amps)3A (AC/DC)
DC contacts rating @R3A / 30V DC
DescriptionSWITCH PUSHBUTTON DPDT .
Detailed DescriptionPushbutton Switch DPDT .
Digi-Key Part NumberYB25MKW01-ND
Electrical Life100,000 Cycles
Electrical life100000 cycles
FeaturesVoltage Reduction Light.
Illuminationnone
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Key stroke3mm
Kind of materialfiber glass reinforced
Leads2,8mm connectors,
ManufacturerNKK Switches
Manufacturer Product Nu.YB25MKW01
Manufacturer seriesYB
Manufacturer Standard L.35 Weeks
Max. contact resistance:50m?
Mechanical durability200000 cycles
Mechanical Life1,000,000 Cycles
MfrNKK Switches
Min. insulation resista.200M?
Mountingon panel,
Mounting hole diameter?16mm
Mounting TypePanel Mount, Snap-In
Number of positions2
Operating Temperature-25?C ~ 70?C
Operating temperature-20...70?C
PackageTray
Panel Cutout DimensionsCircular - 16.00mm Dia
Poles number2
Product StatusActive
SeriesYB
Stable positions number1
Switch FunctionOn-Mom
Switching methodON-(ON)
Termination StyleSolder, Quick Connect -.
TypeStandard
Type of switchpush-button
Voltage Rating - AC125 V
Voltage Rating - DC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key105856214.311In StockNKK Switches14.31 @ 1
TMEYB25MKW0115.571In StockNKK SWITCHES15.57 @ 1
Newark11X158721.681In StockNKK SWITCHES21.68 @ 1
