Omron LY4N-DC24

B005T67D3W

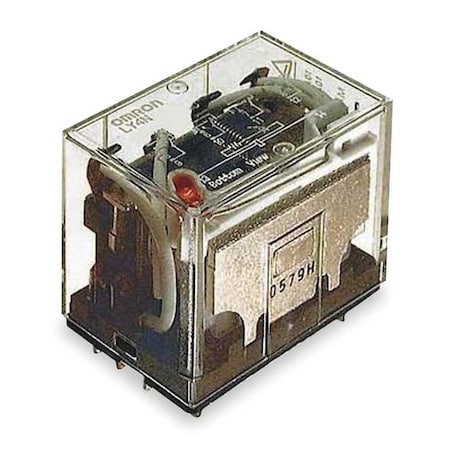

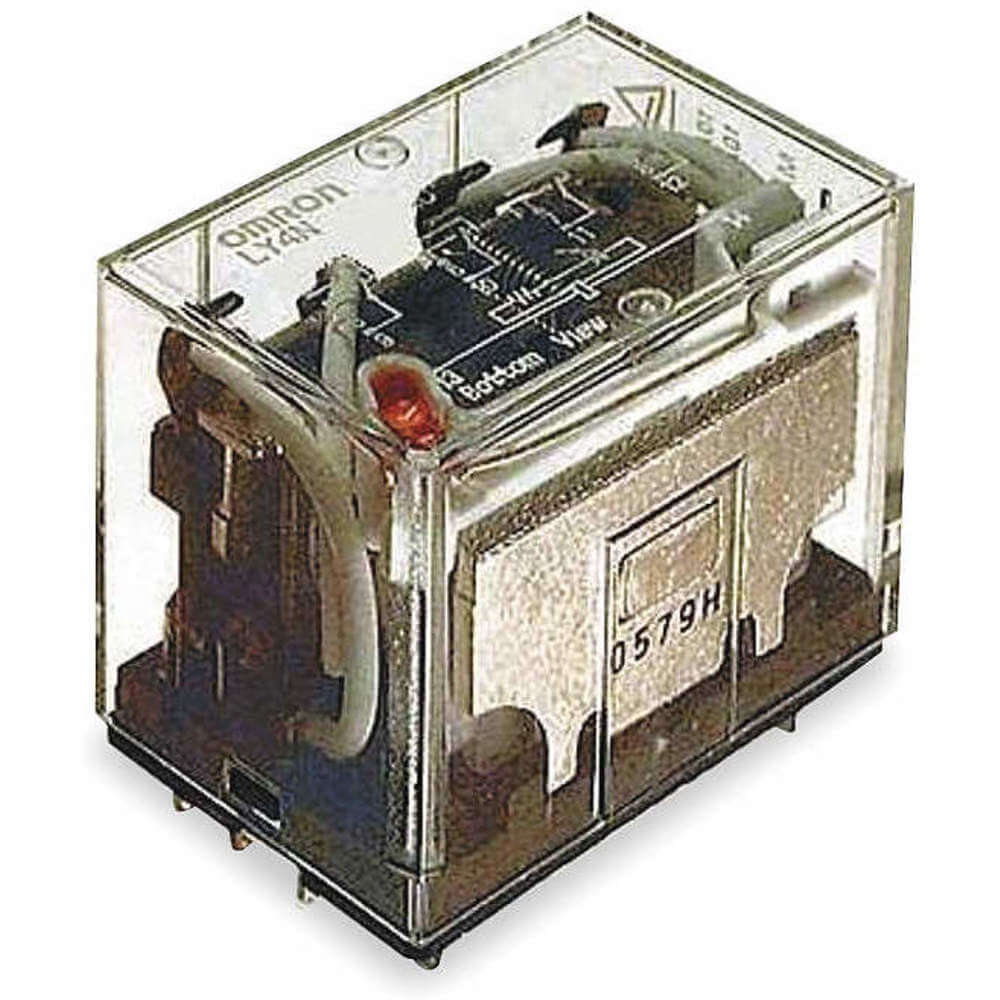

Omron LY4N-DC24 General Purpose Relay, LED Indicator Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 69 mA Rated Load Current, 24 VDC Rated Load Voltage

Omron LY4N-DC24 General Purpose Relay, LED Indicator Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 69 mA Rated Load Current, 24 VDC Rated Load Voltagezoom

Attributes

Key Value
AC Contact Rating - Rel.10 A @ 120 V, 10A @ 120V
Alternate Mfr Part Numb.LY4NDC24
Alternate Part No.653-LY4N-DC24
Base Product NumberLY4N-DC
Base TypeSquare
Base Type - Plug In Rel.Square
Body Depth1.42 in
Body Depth - Relay1.1 in
Body Height1.1 in
Body Height - Relay1.42 in
Body Width1.63 in
Body Width - Relay1.63 in
BrandOmron Automation and Sa.
CategoryRelays
Coil Current69 mA
Coil Insulation-
Coil Resistance350 Ohms
Coil TypeNon-Latching, Non Latch.
Coil Voltage24 V, 24VDC, 24 VDC
Coil Volts24V DC, 24VDC
Contact Current Rating10 A
Contact Form4PDT, 4PDT (4 Form C)
Contact Form - Relay4PDT
Contact MaterialSilver Alloy
Contact Rating (Current)10 A
Contact Resistance50 mOhms
Contact TerminationPin
Contact Voltage Rating300
Control Voltage24
Current Rating10 A
DC Contact Rating - Rel.10 A @ 24 V, 10A @ 24V
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Dielectric Rating2000 VAC
Digi-Key Part NumberZ2275-ND
FeaturesArc Barrier Equipped, H.
Flat Pin Width0.197 in
FunctionGeneral Purpose
HP @ 120V1/3 hp, 1/3
HP @ 240V1/2
ItemGeneral Purpose Relay, .
Item - RelayGeneral Purpose Relay
ManufacturerOmron, Omron Automation.
Manufacturer Part No.LY4N-DC24
Manufacturer Product Nu.LY4N-DC24
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.40 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayPlug In
Mounting StyleThrough Hole
Mounting TypeSocket Mount, Socketable
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Pins - Relay14
Operate Time25 ms
Operating Temperature-25?C ~ 40?C
Overall Depth1.67 in
Overall Height - Relay1.69 in
PackageBulk
Part # Aliases4582548
Power Consumption1.5 W
Power Consumption - Rel.1.5 W
Primary TypePower Relays
Product CategoryGeneral Purpose Relays
Product StatusActive
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time25 ms
Seal Rating-
SeriesLY Series, LY
Special FeaturesLED Indicator ; Surge S.
StandardsCE Certified, CSA Certi.
Status IndicatorLED
Switching Voltage250 VAC, 125 VDC, 250VA.
TerminationQC Tabs
Termination StylePlug In
Voltage Rating250 ; 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG1YCT98.724481441In StockOMRON0.48.72448144 @ 1
Onlinecomponents.comLY4NDC2417.35212Omron17.35 @ 2
thumbzoomCarlton Bates Company4031234767717.361In StockOMRON17.36 @ 1
thumbzoomZoroG108218219.351In StockOmron0.419.35 @ 1
AmazonTPB005T67D3W21.051In Stock2Omron21.05 @ 1
Mouser653-LY4N-DC2421.33129Omron21.33 @ 1
thumbzoomMRO Supply616426726.932In StockOmron26.93 @ 2
KeleLY4N-DC2427.041In StockOmron27.04 @ 1
thumbzoomNewark91B945227.831In StockOMRON INDUSTRIAL AUTOMATION27.83 @ 1
thumbzoomDigi-Key36957729.191411Omron Automation and Safety29.19 @ 1
us.rs-online.com7017885330.411169Omron Automation30.41 @ 1
thumbzoomsustainablesupply.comC116867530.61In StockOmron0.430.6 @ 1
thumbzoomswatee.comLY4N-DC2431.5153Omron31.5 @ 1
Master ElectronicsLY4NDC2433.06143Omron Automation33.06 @ 1
RS Delivers827-789135.064129Omron35.064 @ 1
Airline HydraulicsOMRON LY4N-DC2437.0814Omron37.08 @ 1
thumbzoomRaptor SuppliesAB4HWL38.00107351In StockOMRON38.0010735 @ 1
