Omron MY4Z DC24 (S)

B005T59D9A

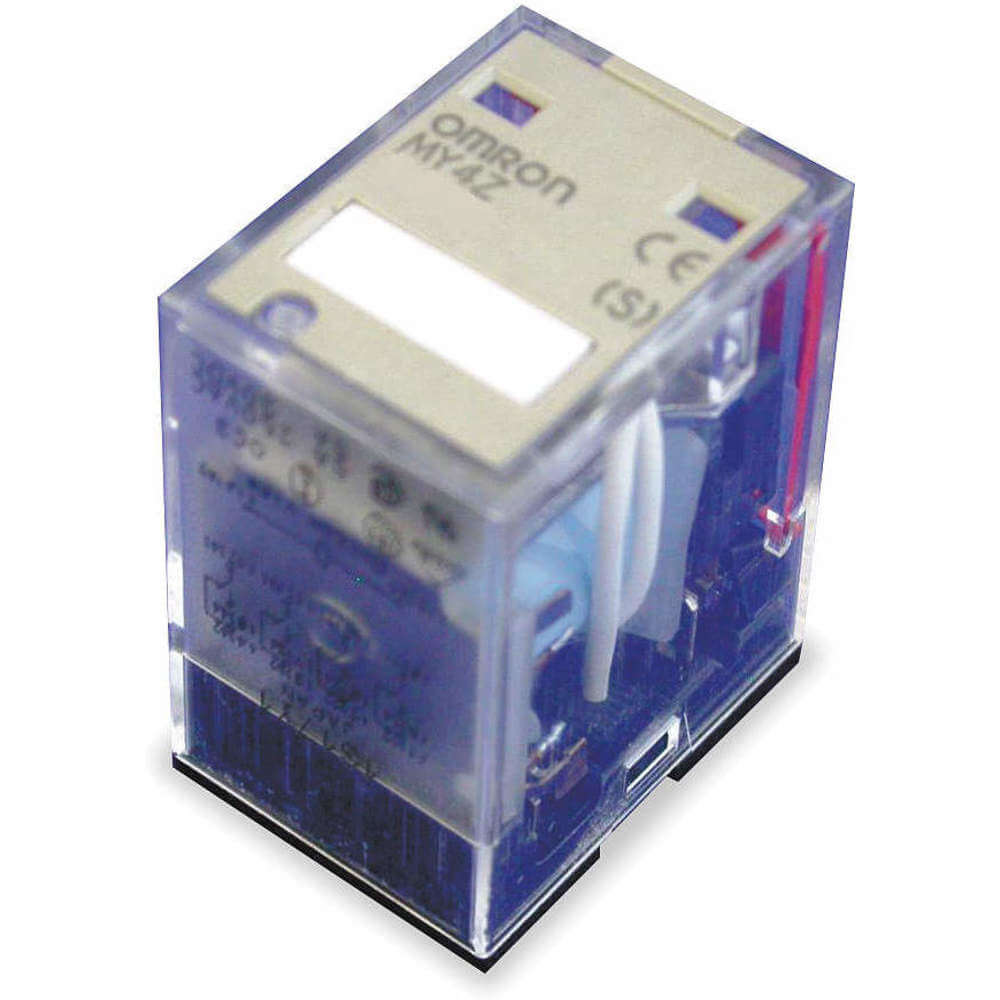

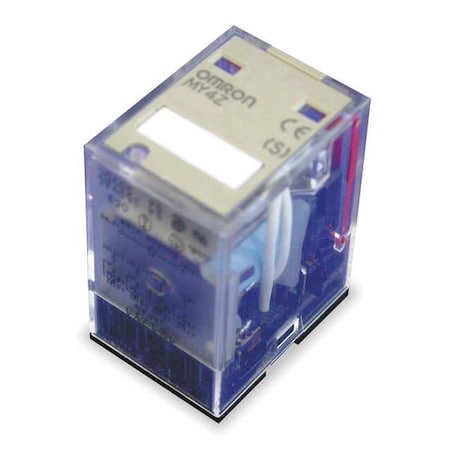

Omron MY4Z DC24 (S) General Purpose Relay, Standard Coil Polarity, Standard Type, Plug-In Socket/Solder Terminals, Quadruple Pole Double Throw Bifurcated Contacts, 37.7 mA Rated Load Current, 24 VDC Rated Load Voltage

Omron MY4Z DC24 (S) General Purpose Relay, Standard Coil Polarity, Standard Type, Plug-In Socket/Solder Terminals, Quadruple Pole Double Throw Bifurcated Contacts, 37.7 mA Rated Load Current, 24 VDC Rated Load Voltagezoom

Attributes

Key Value
AC Contact Rating - Rel.3A @ 240V
Alternate Part No.653-MY4Z-DC24S
Base Type - Plug In Rel.Square
Body Depth1.42 in
Body Depth - Relay1.12 in
Body Height1.1 in
Body Height - Relay1.38 in
Body Width0.85 in
Body Width - Relay0.87 in
BrandOmron, Omron Automation.
Coil Current37.7 mA
Coil Resistance636 Ohms
Coil TerminationPlug Pin
Coil TypeNon-Latching
Coil Voltage24 V
Coil Volts24V DC
Contact Current Rating5 A
Contact Form4PDT (4 Form C)
Contact Form - Relay4PDT
Contact MaterialSilver, Silver Nickel
Contact TerminationSolder Terminal
Current5
Current Stock97
DC Contact Rating - Rel.3A @ 28V
FeaturesCadmium Free Contacts
Flat Pin Width0.102 in
Height36.06 mm
HP @ 120V1/6 hp
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Lead TimeExpected to ship in 1-2.
Length27.94 mm
ManufacturerOmron
Manufacturer Part No.MY4Z-DC24(S)
Mounting - RelayPlug In
Mounting StyleSocket
MpnMY4Z-DC24(S)
Number of Pins - Relay14
Overall Depth1.67 in
Overall Height - Relay1.63 in
Part # Aliases1387209 MY4ZDC24SNC
Power Consumption0.9 W
Power Consumption - Rel.0.9 W
ProductPower Relays
Product CategoryGeneral Purpose Relays
SeriesMY
SKUZO-G2264342
StandardsCE Marked, CSA Certifie.
Status IndicatorNone
SubCategoryElectrical
Switching Voltage250 VAC, 125 VDC
Termination StylePlug Pin
TypeStandard
UPC4536854364204
Width21.59 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB005T59D9A15.491In Stock2Omron15.49 @ 1
AmazonUNKB005T59D9A15.491In StockOmron15.49 @ 1
thumbzoomBD EnterprisesMY4Z-DC24_S15.951In StockOmron15.95 @ 1
thumbzoomswatee.comMY4Z-DC24(S)16.76112Omron16.76 @ 1
thumbzoomsustainablesupply.comC116876516.771In StockOmron0.316.77 @ 1
thumbzoomZoroG226434216.951133Omron0.316.95 @ 1
thumbzoomRaptor SuppliesAB4JAJ25.41971251In StockOMRON25.4197125 @ 1
thumbzoomsimsupply.comZO-G226434226.62197Omron26.62 @ 1
