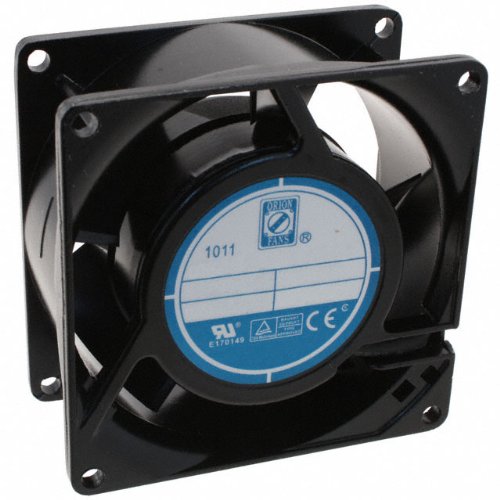

Orion (Knight Electronics ) OA80AP-11-2TB

B00DDE7C7Y

"Orion (Knight Electronics, Inc.) OA80AP-11-2TB Fan; 3.15 x 1.5 in.; 38 mm; 115; 23 CFM; 50/60 Hz; 9 W; AC Cooling; 22 dB; Ball"

"Orion (Knight Electronics, Inc.) OA80AP-11-2TB Fan; 3.15 x 1.5 in.; 38 mm; 115; 23 CFM; 50/60 Hz; 9 W; AC Cooling; 22 dB; Ball"zoom

Attributes

Key Value
Air Flow25 CFM, 25.0 CFM (0.700.
Air Flow Rating21/23 CFM
Approval AgencycURus, TUV
ApprovalscUR, TUV, UR
Approximate Size3.2 x 3.2 in. ; 80 x 80.
Approximate Thickness1.5 in. ; 38 mm
Base Product NumberOA80AP
Bearing TypeDual Ball, Ball
CategoryFans, Thermal Management
ConfigurationSquare
Current Rating (Amps)0.120A
Dimensions3.2 x 3.2 x 1.5 . ; 80 .
Family SeriesOrion Fans, AC-FAN Seri.
Fan Speed2,300 RPM
Fan TypeTubeaxial, AC
Features-
Gross Weight0 lbs
Impeller MaterialPlastic
Ingress Protection-
Item NumberOA80AP-11-2TB
Lifetime @ Temp.60000 Hrs @ 40?C
ManufacturerOrion
Manufacturer Part NumberOA80AP-11-2TB
MaterialDiecast Aluminum
Material - BladePolybutylene Terephthal.
Material - FrameAluminum
Maximum Operating Tempe.80 C
MfrOrion Fans
Minimum Operating Tempe.-20 C
Net Weight0.82 lbs
Noise32.0dB
Noise Level22 dB
Nominal Depth38 mm
Nominal Height80 mm
Nominal Voltage120 VAC
Nominal Width80 mm
Operating Temp Range (F)-4-176 ?F
Operating Temperature-4 ~ 176?F (-20 ~ 80?C)
Operating Voltage115 VAC
PackageBox
Part StatusActive
Power (Watts)9.00W
Power Consumption9 W
Power Rating9 W
Product SeriesAC-FAN
RoHSYes
RotationClockwise, CW
RPM2400 RPM
SeriesOA80 Series, OA80
Size3.2 x 1.5 (80 x 38) In..
Size / DimensionSquare - 80mm L x 80mm H
Special FeaturesAll Metal
Speed2400 RPM
StandardsIP55
Static Pressure0.160 in H2O (39.8 Pa),.
Tachometer OutputNo
TerminationTerminals, 2 Terminals
TypeSquare
Voltage - Rated115VAC
Voltage Range103 ~ 126VAC
Voltage Rating115 V
Weight-
Width38.00mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNEP ElectronicsOA80AP-11-2-TB10.01In StockOrion Fans10.0 @ 1
Mouser670-OA80AP112TB16.2612Orion16.26 @ 1
thumbzoomarcade-electronics.comORI-OA80AP-11-2TB16.621In StockOrion Fans16.62 @ 1
thumbzoomkiesub.comOA80AP-11-2TB16.931In StockORION16.93 @ 1
Digi-Key262098617.565005Orion Fans17.56 @ 1
us.rs-online.com7010329418.61In StockOrion Fans18.6 @ 1
thumbzoomace4parts.comOA80AP-11-2-TB19.511Orion Fans19.5 @ 1
thumbzoomjensentools.com1014143120.671In StockOrion Fans20.67 @ 1
thumbzoomNewark89AH246323.441In StockORION FANS23.44 @ 1
AmazonTPB00DDE7C7Y24.261In Stock2"Orion (Knight Electronics, Inc.)"24.26 @ 1
thumbzoomGalcoOA80AP-11-2TB-ORIN24.311In StockOrion0.8224.31 @ 1
