- mpnLCA1/0-14-X
- brandname: Panduit
- manufacturername: Panduit

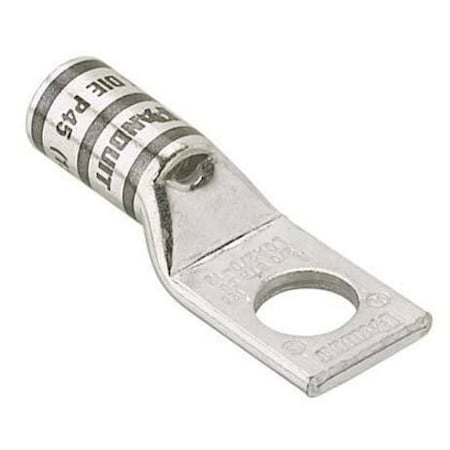

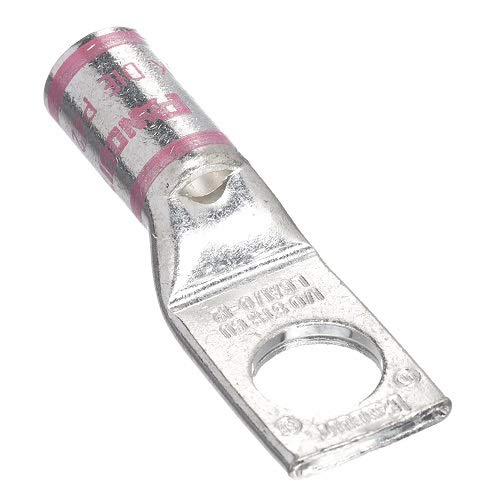

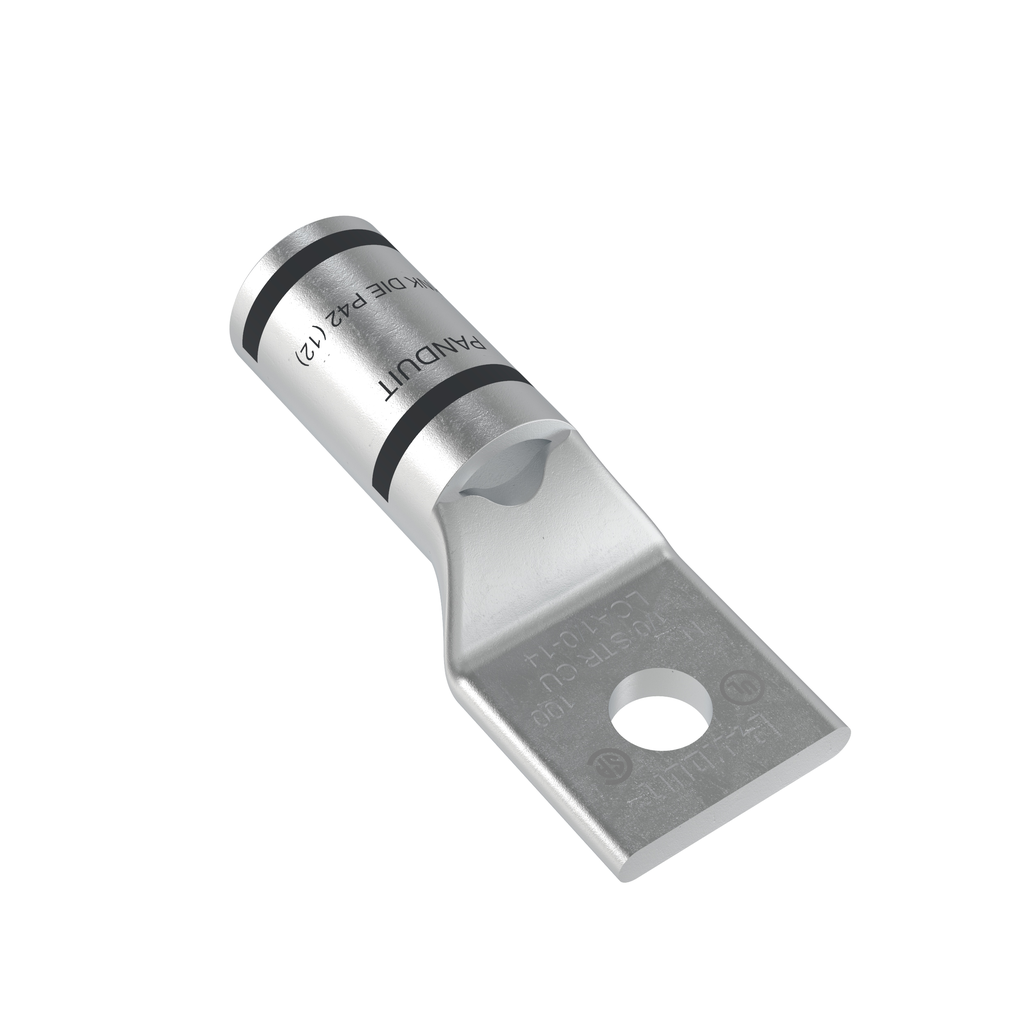

Panduit LCA1/0-14-X #1/0 AWG 1/4" 1 HOLE SHORT BARREL COPPER LUG (package of 10)
- Brand: Panduit
- PartNumber: LCA1/0-14-X
- Model: LCA1/0-14-X
- PackageQuantity: 10
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Angle | Straight |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Diameter | 0.39 Inch ID x 0.52 Inc. |
| Barrel Length | 0.94 |
| Barrel Length (In.) | 0.94 |
| Barrel Length (mm) | 23.9 |
| Barrel Type | Standard Barrel with In. |
| Base Material | Copper |
| Base Product Number | LCA1 |
| Brand | Panduit, Pan-Lug? |
| Brand Name | Panduit |
| Burndy Die Index Number | 12 |
| Buy American Compliant | Y |
| Cable Size | 1/0 AWG |
| California Pro65 Cancer | No |
| Catalog Number | LCA1/0-14-X |
| Category | Connectors, Interconnec. |
| Color | Pink |
| Color Code | Pink |
| Color Family | Pink |
| Conductor Size | 1/0 AWG |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper, Seamless Copper |
| Contact Plating | Electro-Tin |
| Copper Code Conductor S. | 1/0 |
| Country of Origin | MX - Mexico, Mexico |
| Country Of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Diameter - Barrel ID | 0.390" (9.91mm) |
| Diameter - Barrel OD | 0.520" (13.21mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Die Code | P42 |
| Die Color | Pink |
| Die Type | P42 |
| EAN | 00074983901142 |
| ECCN | EAR99 |
| Energy Star Flag | No |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin Plated, Tin-Plated |
| Finish/Coating | Tin-Plated |
| Gross Weight | 0.635 lbs |
| GTIN | 00074983901142 |
| GTIN Package | 00074983901142 |
| Hazardous Material Flag | N |
| Hole Size | 1?4 |
| Inside Diameter (In.) | 0.39 |
| Inside Diameter (mm) | 9.9 |
| Insulation | Non-Insulated |
| Insulation Material | No |
| Insulation Type | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Name | Compression Lug |
| Item Number | LCA1/0-14-X |
| Item Type | Copper Compression Conn. |
| Lead Content Indicator | N |
| Length | 1.95" |
| Length - Overall | 1.950" (49.53mm) |
| Lug Type | 1 Stud Hole Lug |
| Lug Wire Size | 1/0 AWG |
| Made In America | Yes |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Name | Panduit |
| Manufacturer Part Number | LCA1/0-14-X |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 1/0 AWG |
| Maximum Voltage (kV) | 35 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 1/0 AWG |
| Min Order Qty | 40 |
| Min. Order UOM | Piece |
| Mounting | 1 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1, 1.0000 |
| Outer Diameter | 0.52 in. |
| Outer Diameter (In.) | 0.52 |
| Outer Diameter (mm) | 0.2 |
| Overall Length | 2.08, 1.85 |
| Overall Length (In.) | 1.95 |
| Overall Length (mm) | 49.5 |
| Overall Width | 0.76 " |
| Package | Bulk |
| Package Quantity | 10 |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P42 |
| Peep Hole | No |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Copper Compression Conn. |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| RoHS Flag | Yes |
| Series | Pan-Lug?, Pan-Lug LCA S. |
| Size | 1/0 AWG Code |
| Special Features | Standard Barrel, Consul. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Pack/Case Quan. | 10/Pack |
| Standard Package Volume. | 0.0184 |
| Standard Package Weight. | 0.6350 |
| Standards | Tested By Telcordia UL . |
| Standards Met | C22.2 No. 65-13, 486A-4. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.35 |
| Std Package Height MM | 85.09 |
| Std Package Length In | 4.7 |
| Std Package Length MM | 119.38 |
| Std Package Width In | 3.35 |
| Std Package Width MM | 85.09 |
| Std. Pkg. Qty. | 10 |
| Std. Pkg. UOM | Piece |
| Strip Length | 1", 1 Inch |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Size | 1/4 in, 1/4 Inch, 44565. |
| Stud/Tab Size | 1/4 Stud |
| Style | One-Hole |
| Sub Brand | Pan-Lug, Pan-Lug?, Pan-. |
| T & B Die Index Number | 12 |
| Tab Thickness | 0.120" (3.05mm) |
| Temperature Rating | 194 deg F (90 deg C) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel, Crimp |
| Tongue Angle | Straight |
| Tongue Size | 0.76 Inch Width x 0.12 . |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Tongue Type | Straight, Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Type | Compression Lug, 1 Hole. |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 |
| UOM EA PK | PK |
| UPC | 074983901142, 074983901. |
| UPC Code | 074983901142 |
| Voltage Rating | 35 Kilo-Volt |
| Width | 0.76" |
| Width - Outer Edges | 0.760" (19.30mm) |
| Wire Gauge | 1/0 AWG |
| Wire Size | 1/0 AWG |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA1/0-14-X | 3.99 | 1 | 10 | | PANDUIT | | 3.99 @ 10 |
 | alldataresource.com | LCA1/0-14-X | 5.47 | 1 | 10 | | Panduit | | 5.47 @ 10 |
 | mayerelectric.com | PANLCA1014X | 6.045 | 1 | 10 | | PANDUIT | 0.635 | 6.045 @ 10 |
| Digi-Key | 4564275 | 7.003 | 1 | 273 | | Panduit Corp | | 7.003 @ 10 |
 | Zoro | G0771263 | 7.24 | 1 | 10 | 26 | Panduit | 0.64 | 7.24 @ 10 |
| Radwell | LCA1014X | 7.31 | 100 | 10 | | PANDUIT | | 7.31 @ 100 |
 | Newark | 13AC4722 | 7.67 | 1 | 10 | | PANDUIT | | 7.67 @ 10 |
| Monarch Electric | 17650 | 7.8377 | 1 | 10 | | Panduit | | 7.8377 @ 10 |
 | Galco | LCA1/0-14-X-PNDT | 8.87 | 40 | 10 | | Panduit | 0.635 | 8.87 @ 40 |
 | Platt.com | 0681548 | 9.45 | 1 | 10 | | Panduit | | 9.45 @ 10 |
 | crescentelectric.com | 108840 | 10.1 | 1 | 10 | | Panduit | | 10.1 @ 10 |
| Airline Hydraulics | PANDUIT LCA1/0-14-X | 10.7 | 1 | 10 | | Panduit Corp | | 10.7 @ 10 |
| Onlinecomponents.com | LCA1/0-14-X | 10.72 | 1 | 20 | | PANDUIT | | 10.72 @ 10 |
| us.rs-online.com | 70044783 | 72.1777 | 1 | 10 | | Panduit | | 72.1777 @ 10 |
 | Carlton Bates Company | 07498390114 | 83.6 | 1 | 10 | | PANDUIT | | 83.6 @ 10 |
 | jensentools.com | 10016318 | 97.52 | 1 | 10 | | Panduit | | 97.52 @ 10 |
| steinerelectric.com | 7064 | 329.02 | 1 | 10 | | Panduit | | 329.02 @ 10 |
 | gordonelectricsupply.com | LCA1/0-14-X | 374.0 | 1 | 10 | 12 | PANDUIT | | 374.0 @ 10 |
 | turtle.com | PAN LCA1/0-14-X | 1045.79 | 1 | 10 | | Panduit | | 1045.79 @ 10 |
| Graybar | 88198128 | 1158.9984 | 1 | 10 | | Panduit | | 1158.9984 @ 10 |
