- mpnLCC4/0-12-X
- brandname: Panduit
- manufacturername: Panduit

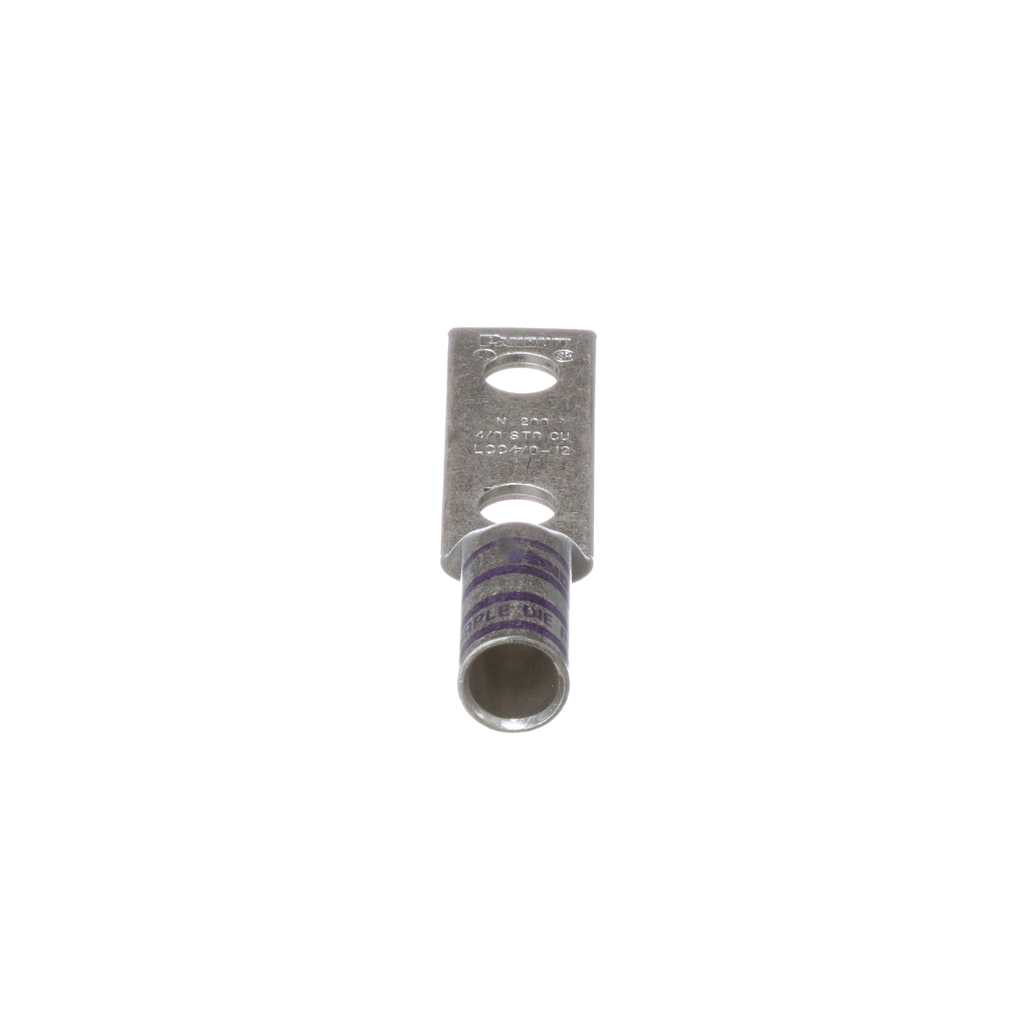

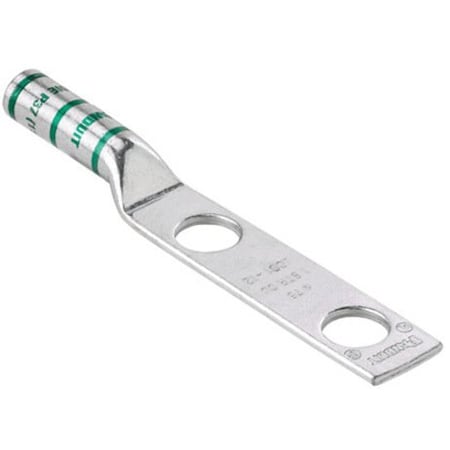

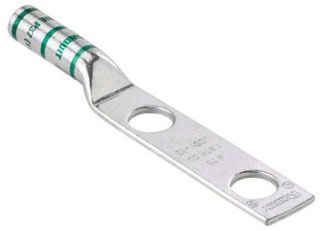

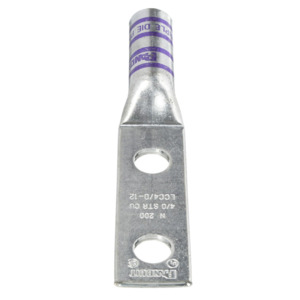

Panduit LCC4/0-12-X Connector Terminals
- Brand: Panduit
- PartNumber: LCC4/0-12-X
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 4/0 |
| amperage rating | Panduit?? |
| Application | Stainless Steel Cable T. |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Diameter | 0.57 Inch ID x 0.71 Inc. |
| Barrel Length | 1.56 |
| Barrel Length (In.) | 1.56 |
| Barrel Length (mm) | 39.6 |
| Barrel Type | Long Barrel without Ins. |
| Base Material | Copper |
| Base Product Number | LCC4 |
| Brand | PANDUIT, Pan-Lug? |
| Brand Name | PANDUIT |
| Burndy Die Index Number | 15 |
| Buy American Compliant | Y |
| Cable Size | 4/0 AWG |
| California Pro65 Cancer | No |
| Carton | 20 |
| Catalog Number | LCC4/0-12-X |
| Category | Connectors, Interconnec. |
| Category Description | Comp & Mech Lugs and Bu. |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Purple |
| Color Code | Purple |
| Color Family | Purple |
| Conductor Size | 4/0 AWG |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Copper Code Conductor S. | 4/0 |
| Country of Origin | MX - Mexico, Mexico |
| Country Of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Description | 4/0AWG 2HOLE Lug |
| Diameter - Barrel ID | 0.570" (14.48mm) |
| Diameter - Barrel OD | 0.710" (18.03mm) |
| Diameter - Ring ID | 0.530" (13.46mm) |
| Die Code | P54 |
| Die Color | Purple |
| EAN | 00074983902408 |
| ECCN | EAR99 |
| Energy Star Flag | No |
| extra long description | PAN LCC4/0-12-X Pan-Lug. |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated, Electro Tin. |
| Finish/Coating | Tin-Plated |
| Gross Weight | 2.24 lbs |
| GTIN | 00074983902408 |
| GTIN Package | 00074983902408 |
| Hazardous Material Flag | N |
| Inside Diameter (In.) | 0.57 |
| Inside Diameter (mm) | 14.47 |
| Insulation | Non-Insulated |
| Insulation Material | No |
| Item | Lug Compression Connect. |
| Item Name | Compression Lug |
| Item Number | LCC4/0-12-X |
| Item Type | Copper Compression Conn. |
| Lead Content Indicator | N |
| Length | 5.13" |
| Length - Overall | 5.130" (130.30mm) |
| Long Description | The LCC4/0-12-X Tin-Pla. |
| Lug Type | 2 Stud Hole Lug |
| Lug Wire Size | 4/0 AWG |
| Made In America | Yes |
| Made in USA | No |
| Manufacturer | PANDUIT |
| Manufacturer Name | PANDUIT |
| Manufacturer Part Number | LCC4/0-12-X |
| Manufacturers Part Numb. | LCC4/0-12-X |
| Material | Copper, Pan-Steel??, Ti. |
| Material/Composition | Copper |
| Max Conductor Range | 4/0 AWG |
| Maximum Voltage (kV) | 35 |
| media | Yes |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 4/0 AWG |
| Min Order Qty | 20 |
| Min. Order UOM | Piece |
| Mounting | 2-Hole, 1-5/8, 39452 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2, 2.0000 |
| Outer Diameter | 0.71 in. |
| Outer Diameter (In.) | 0.71 |
| Outer Diameter (mm) | 18.03 |
| Overall Length | 5.13 |
| Overall Length (In.) | 5.13 |
| Overall Length (mm) | 130.3 |
| Package | Bulk |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P54 |
| Peep Hole | No |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Pan-Lug LCC4/0-12-X Co. |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| RoHS Flag | Yes |
| Series | Pan-Lug LCC Series, Pan. |
| Size | 4/0 AWG Code |
| Special Features | Consult cable manufactu. |
| standard | UL listed to 486A-486B . |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.0528 |
| Standard Package Weight. | 2.2400 |
| Standards | UL Listed, CSA Certifie. |
| Standards Met | C22.2 No. 65-13, 486A-4. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.45 |
| Std Package Height MM | 87.63 |
| Std Package Length In | 7.7 |
| Std Package Length MM | 195.58 |
| Std Package Width In | 3.35 |
| Std Package Width MM | 85.09 |
| Std. Pkg. Qty. | 10 |
| Std. Pkg. UOM | Piece |
| Strip Length | 1.625 Inch |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing | 1.75 in., 1.75 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Stud Size | 44563, 1/2", 1/2, 1/2 I. |
| Stud/Tab Size | 1/2 Stud |
| sub brand | Panduit?? |
| Sub Brand | Pan-Lug, Pan-Lug? |
| T & B Die Index Number | 15 |
| Tab Thickness | 0.140" (3.56mm) |
| Temperature Rating | 194 deg F (90 deg C) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Tongue Angle | Straight |
| Tongue Size | 1.06 Inch Width x 0.14 . |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Tongue Type | Straight, Standard, Sta. |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Type | 2 Hole, Tin-Plated Copp. |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 - Cable or wir. |
| UOM EA PK | PK |
| UPC | 074983902408, 074983902. |
| UPC Code | 074983902408 |
| Voltage Rating | 35 Kilo-Volt |
| Weight per each | 2.24 |
| Width | 1.06" |
| Width - Outer Edges | 1.060" (26.92mm) |
| Wire Gauge | 4/0 AWG |
| Wire Size | 4/0 AWG |
| Wire Strip Length (In.) | 1-5/8 |
| Wire Strip Length (mm) | 41.2 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Elliott Electric | LCC4012X | 8.6263 | 1 | In Stock | | Panduit | 2.24 | 8.6263 @ 1 |
 | cbtcompany.com | LCC4/0-12-X | 9.23 | 1 | In Stock | | PANDUIT | | 9.23 @ 1 |
 | alldataresource.com | PAN-LCC4/0-12 | 13.2 | 1 | In Stock | | Panduit | | 13.2 @ 1 |
 | mayerelectric.com | PANLCC4012X | 13.84 | 1 | In Stock | | PANDUIT | 2.24 | 13.84 @ 1 |
| Monarch Electric | 17736 | 14.1416 | 1 | In Stock | | Panduit | | 14.1416 @ 1 |
| Digi-Key | 4565541 | 16.1885 | 20 | In Stock | | Panduit Corp | | 16.1885 @ 20 |
 | Newark | 52AH0904 | 17.72 | 1 | In Stock | | PANDUIT | | 17.72 @ 1 |
 | Zoro | G0414371 | 17.89 | 1 | In Stock | 26 | Panduit | 2.24 | 17.89 @ 1 |
| Onlinecomponents.com | LCC4/0-12-X | 18.25 | 1 | 9 | | PANDUIT | | 18.25 @ 1 |
 | Galco | LCC4/0-12-X-PNDT | 20.51 | 20 | In Stock | | Panduit | 2.24 | 20.51 @ 20 |
 | Platt.com | 0691164 | 21.83 | 1 | In Stock | | Panduit | | 21.83 @ 1 |
 | crescentelectric.com | 90054 | 23.35 | 1 | In Stock | | Panduit | | 23.35 @ 1 |
| Airline Hydraulics | PANDUIT LCC4/0-12-X | 24.73 | 1 | In Stock | | Panduit Corp | | 24.73 @ 1 |
| us.rs-online.com | 70518609 | 26.43 | 1 | 8 | | Panduit | | 26.43 @ 1 |
 | jensentools.com | 10016395 | 225.46 | 1 | In Stock | | Panduit | | 225.46 @ 1 |
 | gordonelectricsupply.com | LCC4/0-12-X | 431.0 | 1 | In Stock | 12 | PANDUIT | | 431.0 @ 1 |
| steinerelectric.com | 7090 | 1036.03 | 1 | In Stock | | Panduit | | 1036.03 @ 1 |
 | turtle.com | PAN LCC4/0-12-X | 2417.64 | 1 | In Stock | | Panduit | | 2417.64 @ 1 |
| Graybar | 88198210 | 2679.3424 | 1 | 15 | | Panduit | | 2679.3424 @ 1 |
