Panduit LCC750-38DW-6

B00B5NW9JQ

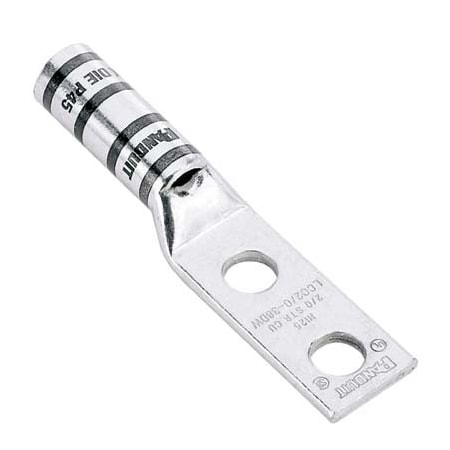

Panduit LCC750-38DW-6 Code Conductor Lug, Two Hole, Long Barrel With Window, 750kcmil Copper Conductor Size, 3/8" Stud Size, Black Color Code, 1.00" Stud Hole Spacing, 2-15/16" Wire Strip Length, 0.26" Tongue Thickness, 1.89" Tongue Width, 2.88" Neck Length, 5.71" Overall Length

Panduit LCC750-38DW-6 Code Conductor Lug, Two Hole, Long Barrel With Window, 750kcmil Copper Conductor Size, 3/8" Stud Size, Black Color Code, 1.00" Stud Hole Spacing, 2-15/16" Wire Strip Length, 0.26" Tongue Thickness, 1.89" Tongue Width, 2.88" Neck Length, 5.71" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range750
ApprovalsCSA, UL
Barrel Length2.88
Base Product NumberLCC750
CategoryConnectors, Interconnec.
ColorBlack
Color CodeBlack
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
Diameter - Barrel ID1.030" (26.16mm)
Diameter - Barrel OD1.300" (33.02mm)
Diameter - Ring ID0.410" (10.41mm)
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight5.4 lbs
Hole Center to Center44628
InsulationNon-Insulated
Item NumberLCC750-38DW-6
Length - Overall5.710" (145.03mm)
ManufacturerPanduit
Manufacturer Part NumberLCC750-38DW-6
MaterialCopper
Material/CompositionCopper
Max Conductor Range750 kcmil
MfrPanduit Corp
Min Conductor Range750 kcmil
Mounting2-Hole
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes2
Overall Length5.71 in
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
Stud Size3/8 in
Stud/Tab Size3/8 Stud
Tab Thickness0.260" (6.60mm)
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Tongue StyleStandard
Tongue Width - Wire Con.1.89
Tool TypeTin-Plated Copper Compr.
Width - Outer Edges1.890" (48.01mm)
Wire Gauge750MCM (kcmil)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCC750-38DW-632.191In StockPANDUIT32.19 @ 1
Sager ElectronicsLCC750-38DW-634.861In StockPanduit34.86 @ 1
thumbzoomalldataresource.comLCC750-38DW-640.831In StockPanduit40.83 @ 1
Electro SonicLCC75038DW645.211In StockPanduit45.21 @ 1
AmazonB00B5NW9JQ51.51In StockPanduit51.5 @ 1
Digi-Key456571354.8816Panduit Corp54.88 @ 1
Onlinecomponents.comLCC750-38DW-656.011In StockPanduit56.01 @ 1
Avnet ExpressLCC750-38DW-658.92881In StockPanduit58.9288 @ 1
Newark95H058361.171In StockPANDUIT61.17 @ 1
thumbzoomGalcoLCC750-38DW-6-PNDT71.546In StockPanduit5.471.54 @ 6
thumbzoomZoroG60485960574.651In Stock15Panduit74.65 @ 1
thumbzoomPlatt.com069236776.111In StockPanduit76.11 @ 1
Airline HydraulicsPANDUIT LCC750-38DW-686.221In StockPanduit Corp86.22 @ 1
thumbzoomgordonelectricsupply.comLCC750-38DW-6390.31In Stock12PANDUIT390.3 @ 1
