Panduit LCA250-12H-X

B00B5NFA8S

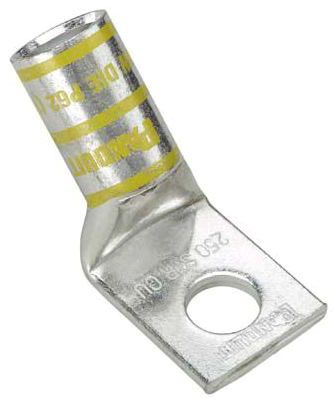

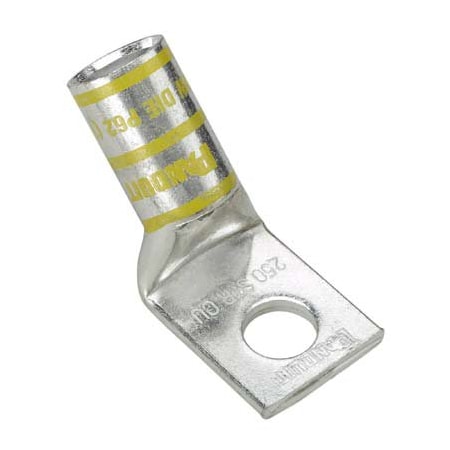

Panduit LCA250-12H-X Tin-Plated Copper Compression Connector Lug, One-Hole, Standard Barrel with Window, 250kcmil Cable, 1/2" Stud Hole, 45? Angle Tongue

Panduit LCA250-12H-X Tin-Plated Copper Compression Connector Lug, One-Hole, Standard Barrel with Window, 250kcmil Cable, 1/2" Stud Hole, 45? Angle Tonguezoom

Attributes

Key Value
Allowable Gauge Range250
Angle45?
ApprovalsCSA, UL
Barrel Length1.25
Base Product NumberLCA250
CategoryConnectors, Interconnec.
ColorYellow
Color CodeYellow
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
DescriptionCONN TERM RECT TONG 250.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID0.630" (16.00mm)
Diameter - Barrel OD0.770" (19.56mm)
Diameter - Ring ID0.530" (13.46mm)
Digi-Key Part Number298-21800-ND
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight1.45 lbs
Hole Center to Center44563
InsulationNon-Insulated
Item NumberLCA250-12H-X
Length - Overall-
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLCA250-12H-X
Manufacturer Product Nu.LCA250-12H-X
Manufacturer Standard L.2 Weeks
MaterialCopper
Material/CompositionCopper
Max Conductor Range250 kcmil
MfrPanduit Corp
Min Conductor Range250 kcmil
Mounting1-Hole
Mounting TypeFree Hanging (In-Line),.
Net Weight0 lbs
Number of Conductors1
Number of Holes1
Overall Length2.36 in
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
StandardsC22.2 No. 65-13, 486A-4.
Stud Size1/2 in
Stud/Tab Size1/2 Stud
Tab Thickness0.140" (3.56mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Tongue StyleStandard
Tongue Width - Wire Con.1.17
Tool TypeTin-Plated Copper Compr.
Width - Outer Edges1.170" (29.72mm)
Wire Gauge250MCM (kcmil), 35

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCA250-12H-X10.181In StockPANDUIT10.18 @ 1
thumbzoomFrench GerlemanPANDLCA25012HX11.881In StockPanduit11.88 @ 1
thumbzoomalldataresource.comLCA250-12H-X14.171In StockPanduit14.17 @ 1
VericalLCA250-12H-X14.7949Panduit14.79 @ 4
thumbzoomDigi-Key456432518.3411Panduit Corp18.34 @ 1
Onlinecomponents.comLCA250-12H-X18.6415PANDUIT18.64 @ 1
Mouser644-LCA250-12H-X20.77182Panduit20.77 @ 1
thumbzoomGalcoLCA250-12H-X-PNDT22.6110In StockPanduit1.4522.61 @ 10
thumbzoomZoroG50485937823.61In Stock15Panduit23.6 @ 1
thumbzoomPlatt.com068202024.071In StockPanduit24.07 @ 1
Airline HydraulicsPANDUIT LCA250-12H-X27.261In StockPanduit Corp27.26 @ 1
Newark66H0798193.411In StockPANDUIT193.41 @ 1
thumbzoomCarlton Bates Company07498355869203.21In StockPANDUIT203.2 @ 1
thumbzoomgordonelectricsupply.comLCA250-12H-X238.01In Stock12PANDUIT238.0 @ 1
thumbzoomturtle.comPAN LCA250-12H-X2665.541In StockPanduit2665.54 @ 1
