Ruland MSC-40-SS

B0063KW7HU

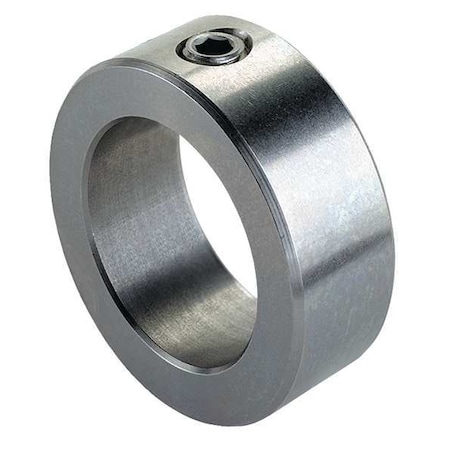

Ruland MSC-40-SS Set Screw Shaft Collar, Stainless Steel, Metric, 40mm Bore, 63mm OD, 18mm Width

Ruland MSC-40-SS Set Screw Shaft Collar, Stainless Steel, Metric, 40mm Bore, 63mm OD, 18mm Widthzoom

Attributes

Key Value
Bore (B)40 mm
Bore Dia.40 mm
Bore Tolerance+0.050 mm / +0.012 mm
Bore Type - CollarsPlain Bore
Clearance Dia.63 mm
Collar StyleSet Screw
Country of OriginUSA
Country of Origin (subj.United States
Dimension TypeMetric
Finish SpecificationBright, No Plating
Forged Set ScrewM10 x 12
Hex Wrench Size5.0 mm
ItemShaft Collar
Item - Shaft CollarsShaft Collar
ManufacturerRuland Manufacturing
Material303 Stainless Steel
Material - Collars303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
Note 1This product has been d.
Note 2Performance ratings are.
Number of Pieces1
Number of Screws1 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)63 mm
Outside Dia.63 mm
Recommended Shaft Toler.+0.000 mm / -0.013 mm
Screw FinishBright
Screw Material18-8 300 Series Stainle.
Screw SizeM10 x 12
Seating Torque26.4 Nm
Shaft Locking Type - Co.1 Piece Set Screw
System of MeasurementMetric
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
UPC634529015117
Weight (lbs)0.577800
Width18 mm
Width (W)18 mm
Width Tolerance+0.076 mm / -0.254 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG821238256.151In StockRuland Manufacturing0.5856.15 @ 1
thumbzoomsustainablesupply.comC164609264.411In StockRuland Manufacturing0.5864.41 @ 1
thumbzoomRulandMSC-40-SS68.331In StockRuland0.577868.33 @ 1
