Schneider Electric 9001KR1UH13

B007IAWY9K

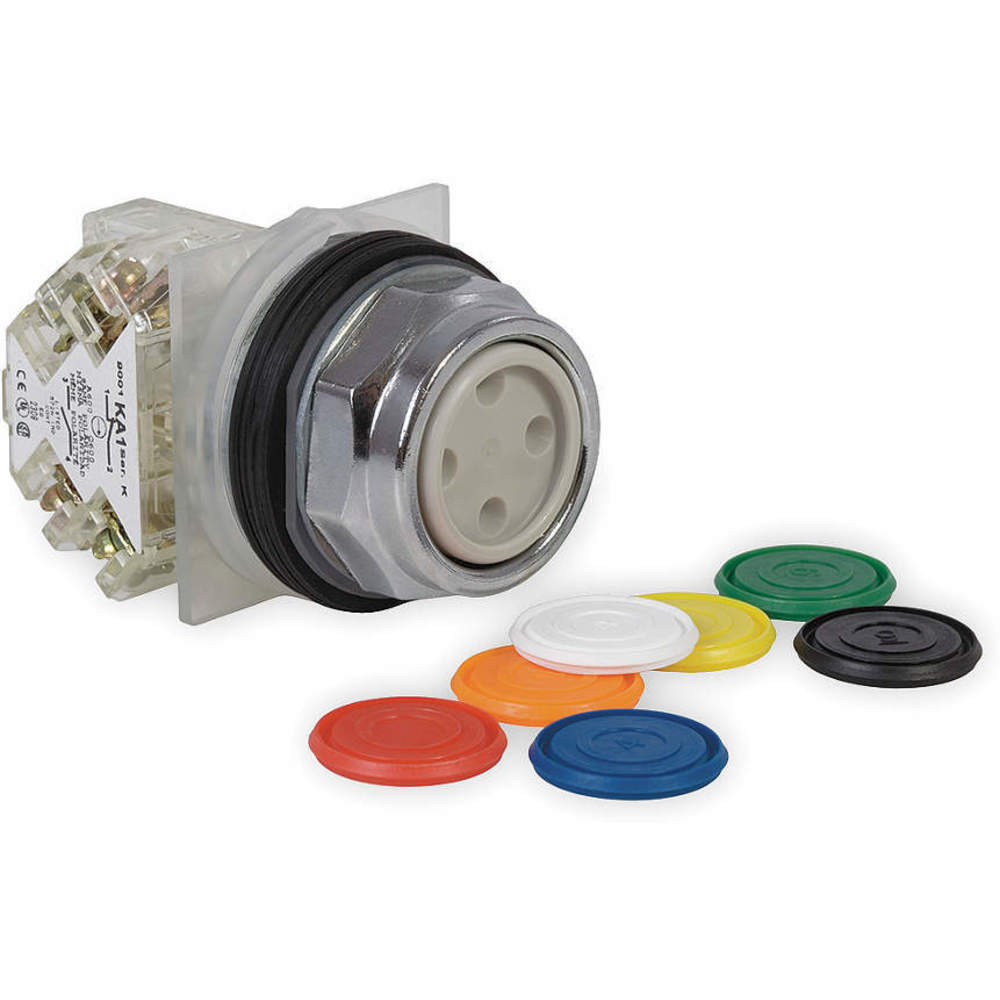

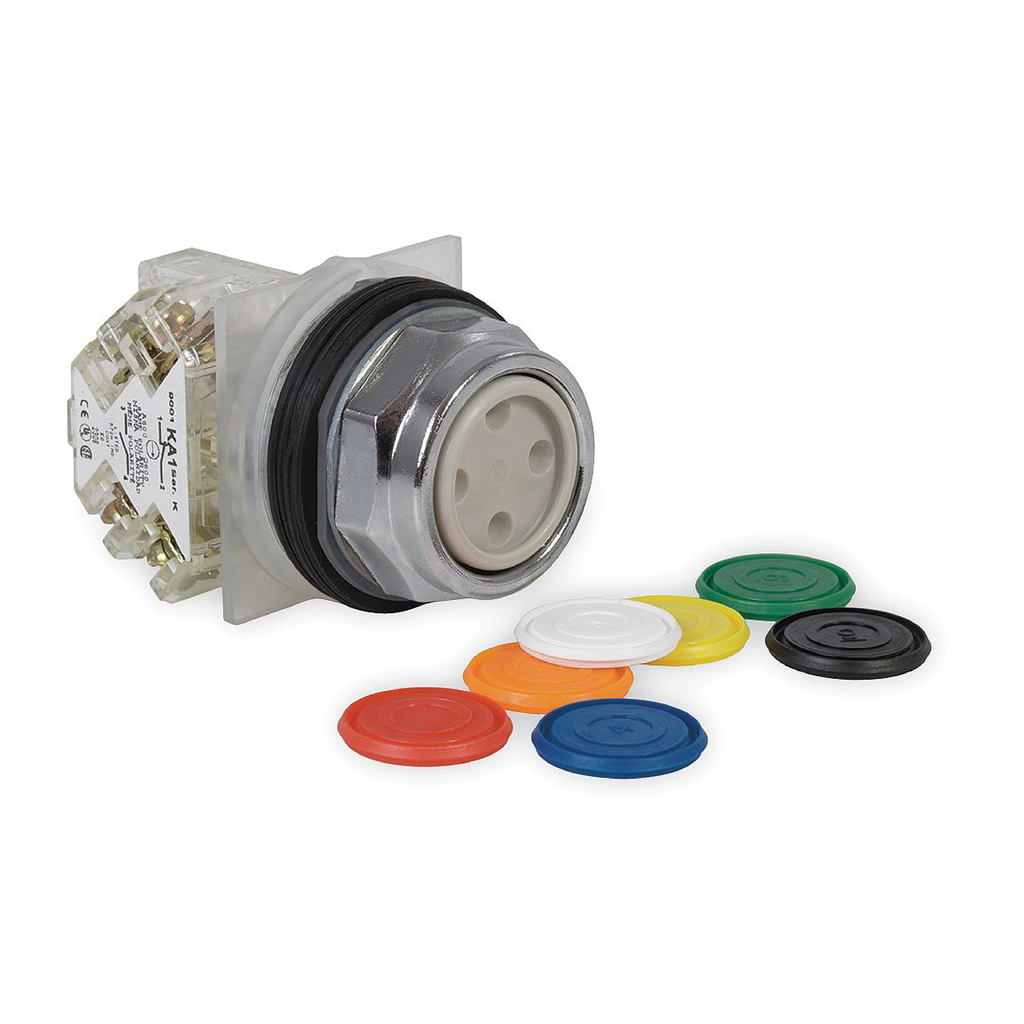

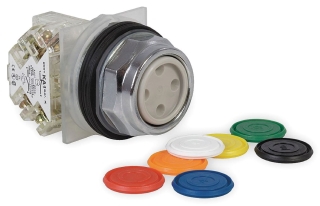

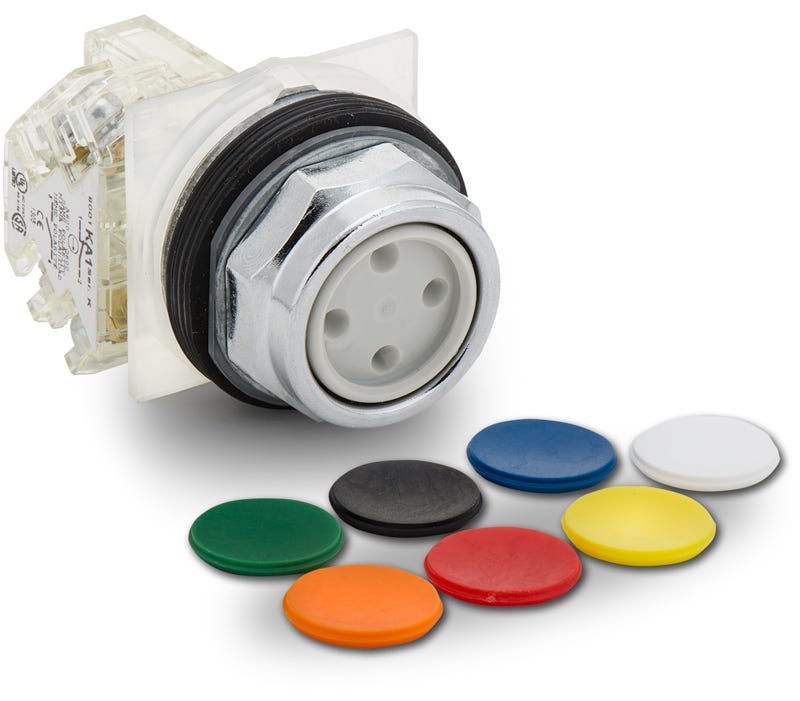

Non-Illum Push Button, 30Mm, 1No/1Nc

Non-Illum Push Button, 30Mm, 1No/1Nczoom

Attributes

Key Value
[Icm] Rated Short-Circu.12 kA 600 V AC-15, 7200.
[Ie] Rated Operational .3 A 240 V, AC-15, A600-.
[Ith] Conventional Free.10 A
[Ui] Rated Insulation V.250 V 3)IEC 60947-1
[Uimp] Rated Impulse Wi.2.5 kV IEC 60947-1
ActionMomentary Push
Actuationspring return
Actuator Color7 Color ; Black ; Red ;.
Actuator TypeRound Flush 30mm, Round.
Alternate Part No.996-9001KR1UH13
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
Amperage10A
Basic MaterialMetal
BezelChrome, Chrome Plated D.
Bezel MaterialMetal
BrandSchneider Electric
Cad Overall Depth56 mm
Cad Overall Height45 mm
Cad Overall Width48 mm
California Proposition .Lead and lead compounds.
Cap/Operator Or Lens Co.7 colours choice
Catalog Number9001KR1UH13
CategorySwitches
China Rohs RegulationX
CircuitSPDT
Circularity ProfileN/A
ColorUniversal
Color - Actuator/Cap-
ColourUniversal
Connections - Terminalsscrew clamp terminals 1.
Contact Form1 C/O, 1NO/1NC, 1NO ; 1.
Contact Operationstandard
Contact Rating10A @ 600V AC, 10 A @ 6.
ContactsSilver Alloy
Contacts Materialsilver alloy contacts
Contacts Type And Compo.1 C/O
Country of OriginMX - Mexico, Mexico
Current Rating10 A
Current Rating (Amps)3A (AC), 550mA (DC)
Current Stock47
DescriptionPUSHBUTTON 600VAC 10A 3.
Detailed DescriptionPushbutton Switch SPDT .
Device Presentationcomplete product
Device Short Name9001K
Digi-Key Part Number4008-9001KR1UH13-ND
ECCNEAR99
Electrical Life-
Electrical Shock Protec.class II IEC 61140
Environmental DisclosureENVPEP121006EN
Eu Rohs DirectivePro-active compliance (.
FeaturesFinger-Safe Terminals, -
Gtin785901848851
Head MaterialMetal
Illumination Type, Color-
Illumination Voltage (N.-
IncludesBlack, Red, Green, Yell.
Ingress ProtectionIP66 - Dust Tight, Wate.
Insulation250 V 3)IEC 60947-1
International ShippingNo
Ip Degree Of ProtectionIP66 IEC 60529
IP Rating66, IP66
ItemNon-Illuminated Push Bu.
Item Typepush-button
Lead TimeExpected to ship in 1-2.
LegendNo legend
Made in USANo
ManufacturerSchneider Electric
Manufacturer Part No.9001KR1UH13
Manufacturer Product Nu.9001KR1UH13
Manufacturer Standard L.1 Weeks
MaterialMetal
Mechanical Durability5000000 cycles
Mechanical Life5,000,000 Cycles
Mercury FreeYes
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting Hole Size30 mm
Mounting TypePanel Mount, Front, Pan.
Mpn9001KR1UH13
NEMA Contact Rating Des.A600/Q600
Nema Degree Of Protecti.NEMA 1 || NEMA 12 || NE.
Nema RatingNEMA 1/2/3/3R/4/6/12/13
NEMA Rating1, 2, 3, 3R, 4, 6, 12, .
Net Weight0.121 kg
Number of Operators1
Operating Positionany position
Operating Temperature-25?C ~ 70?C
OperationMomentary
Operator Additional Inf.metal guard
Operator Profile7 colours choice flush,.
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Positive Openingwithout
Product CategoryPushbutton Switches
Product CertificationsNEMA || UL 508
Product Or Component Ty.push-button
Product StatusActive
Protective TreatmentTC
Range Of ProductHarmony 9001K
Rated Breaking Capacity3 kA 240 V AC-15, 720 V.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHarmony 9001K Series, H.
Shape Of Screw Headcross slotted
Shape Of Signaling Unit.octagonal
Shock Resistance50 gn IEC 60068-2-27
Short-Circuit Protection10 A cartridge fuse IEC.
Size30mm, 30 mm, 30MM ROUND
SKUZO-G0629221
Special FeaturesFULL GUARD IN PLASTIC
StandardUL FILE NUMBER E42259 C.
StandardsUL 508 || JIS C 4520 ||.
Sub BrandHARMONY
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch FunctionOn-On
Terminal ConnectionPressure Plate
Terminal TypeScrews
Terminals Description I.(13-14-11-12)OF
TerminationScrew
Termination StyleScrew Terminal
Tightening Torque0.8-0.8 N.m IEC 60947-1
TypePush Button, standard
Type Of Operatorspring return
Type of OperatorFlush Button
UNSPSC39122216
Upc785901848851
UPC785901848851
UPC Code785901848851
Vibration Resistance7 gn 2-500 Hz)IEC 60068.
Voltage600V
Voltage Rating600 V
Voltage Rating - AC240 V
Voltage Rating - DC125 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTME9001KR1UH1344.512SCHNEIDER ELECTRIC44.5 @ 1
thumbzoomsuperbreakers.com9001KR1UH1354.91In StockSchneider Electric54.9 @ 1
AmazonTPB007IAWY9K62.241In Stock2SCHNEIDER ELECTRIC62.24 @ 1
Graybar9214303565.28481In StockSquare D (Schneider Electric)65.2848 @ 1
RS Delivers516-02967.06814Schneider Electric67.068 @ 1
thumbzoomkempstoncontrols.co.uk9001KR1UH1369.4321291In StockSchneider69.432129 @ 1
thumbzoomgordonelectricsupply.com9001KR1UH1378.091In Stock10SQUARE D78.09 @ 1
thumbzoomZoroG062922179.591103Schneider Electric0.379.59 @ 1
thumbzoommostelectric.com9001KR1UH1388.51140SQUARE D/TELEMECANIQUE88.5 @ 1
Mouser996-9001KR1UH1390.3915Schneider Electric90.39 @ 1
standardelectricsupply.com212619193.081In StockSchneider Electric93.08 @ 1
thumbzoommayerelectric.comSQD9001KR1UH1393.121In StockSCHNEIDER ELECTRIC0.266293.12 @ 1
us.rs-online.com7006033594.13124Schneider Electric94.13 @ 1
thumbzoomsimsupply.comZO-G062922194.3147Schneider Electric94.3 @ 1
thumbzoomsustainablesupply.comC118475498.851In StockSchneider Electric0.398.85 @ 1
thumbzoomDigi-Key17154083103.231In StockSchneider Electric103.23 @ 1
grainger.caTLQ9001KR1UH13104.095096521In StockSQUARE D0.29104.09509652 @ 1
thumbzoomNewark51R1346111.211In StockSCHNEIDER ELECTRIC111.21 @ 1
thumbzoomNational Supply Network55489488121.821In StockSquare D121.82 @ 1
thumbzoombscsource.com9001KR1UH13146.891In StockSquare D146.89 @ 1
thumbzoomcrescentelectric.com41273147.617Schneider Electric147.6 @ 1
thumbzoomRaptor SuppliesAF9KFJ164.5856551In StockSCHNEIDER ELECTRIC164.585655 @ 1
swatee.com9001KR1UH13166.011Schneider Electric166.0 @ 1
