Smith Bearing CR-1/2

B00MHRVX78

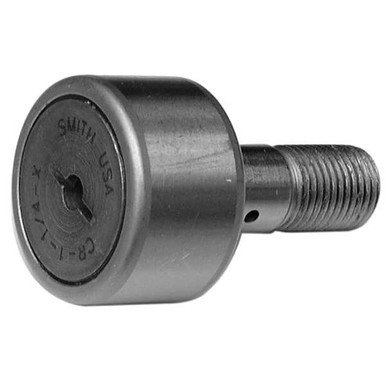

Smith Bearing CR-1/2 Cam Follower Needle Roller Bearing, Regular Stud with Screwdriver Slot, Unsealed, 0.500"

Smith Bearing CR-1/2 Cam Follower Needle Roller Bearing, Regular Stud with Screwdriver Slot, Unsealed, 0.500"zoom

Attributes

Key Value
Additional Note1Relubricate through hea.
Basic Dynamic Rating (l.970
Bearing MaterialAlloy Steel
Bearing Material GradeAISI 52100
Bearing TypeNeedle Roller
BrandSmith Bearing
ClosureOpen
Current Stock47
Drive LocationStud
Drive TypeSlotted
Duty TypeStandard
Dynamic Radial Load Cap.970 lbf
Eff. Thread Min.1/4
Face DesignScrewdriver Slot
FeaturesScrewdriver Slot Stud T.
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
International ShippingNo
ItemCam Follower
Load DirectionRadial
Lube Fitting Size1/8
Max. Static Capacity (l.720
Maximum Temperature250 Degrees F
Min. Boss Dia.19/64
Minimum Temperature-30 Degrees F
MpnCR-1/2
Number of Bearings1
Oil Hole Dia.N/A
Oil Hole LocationN/A
Overall Length1 1/32 in
Recom. Bore.1900
Recom. Bore Tolerance+.0005/-.0000
Recom. Torque (lbs-in)20
Roller Dia.0.5 in
Roller Dia. (In.)0.5000
Roller Diameter1/2 in
Roller Head TypeFlat
Roller MaterialAlloy Steel
Roller Material Grade52100
Roller O.D..500
Roller O.D. Tolerance+.000/-.001
Roller ShapeFlat
Roller StyleStud
Roller TypeScrewdriver Slot Head
Roller Width3/8 in, .375, 0.375 in
Roller Width (In.)0.3750
Roller Width Tolerance+.000/-.005
Rolling Element Rows1
Seal TypeNot Applicable
SKUZO-G4118396
SMITH Bearing NumberCR-1/2
StandardsABMA
Static Radial Load Capa.720 lbf
Stud Dia.0.19 in, .190
Stud Dia. (In.)0.1900
Stud Dia. Tolerance+.001/-.000
Stud Diameter3/16 in
Stud Length5/8, 0.625 in, 5/8 in
Stud Length (In.)0.625
Stud MaterialCarbon Steel
Stud Thread Length1/4 in
Stud Thread Size#10-32
Stud TypeConcentric
SubCategoryPower Transmission
System of MeasurementInch
Thread Length (In.)0.25 in
Thread Size10-32
Thread U.N.F. Class 2A10-32

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply278850012.813In StockSmith Bearings12.81 @ 3
thumbzoomZoroG411839615.79171Smith Bearing0.0315.79 @ 1
motionindustries.com0009587624.141In StockSmith Bearing Company24.14 @ 1
thumbzoomsimsupply.comZO-G411839624.66147Smith Bearing24.66 @ 1
thumbzoomsustainablesupply.comC165821425.01In StockSmith Bearing0.0325.0 @ 1
grainger.caWWG13W66127.885466521In StockSMITH BEARING0.0327.88546652 @ 1
thumbzoomRaptor SuppliesAA6FRN48.046051In StockSMITH BEARING48.04605 @ 1
