Schneider Electric H363DSEI

B0085C787S

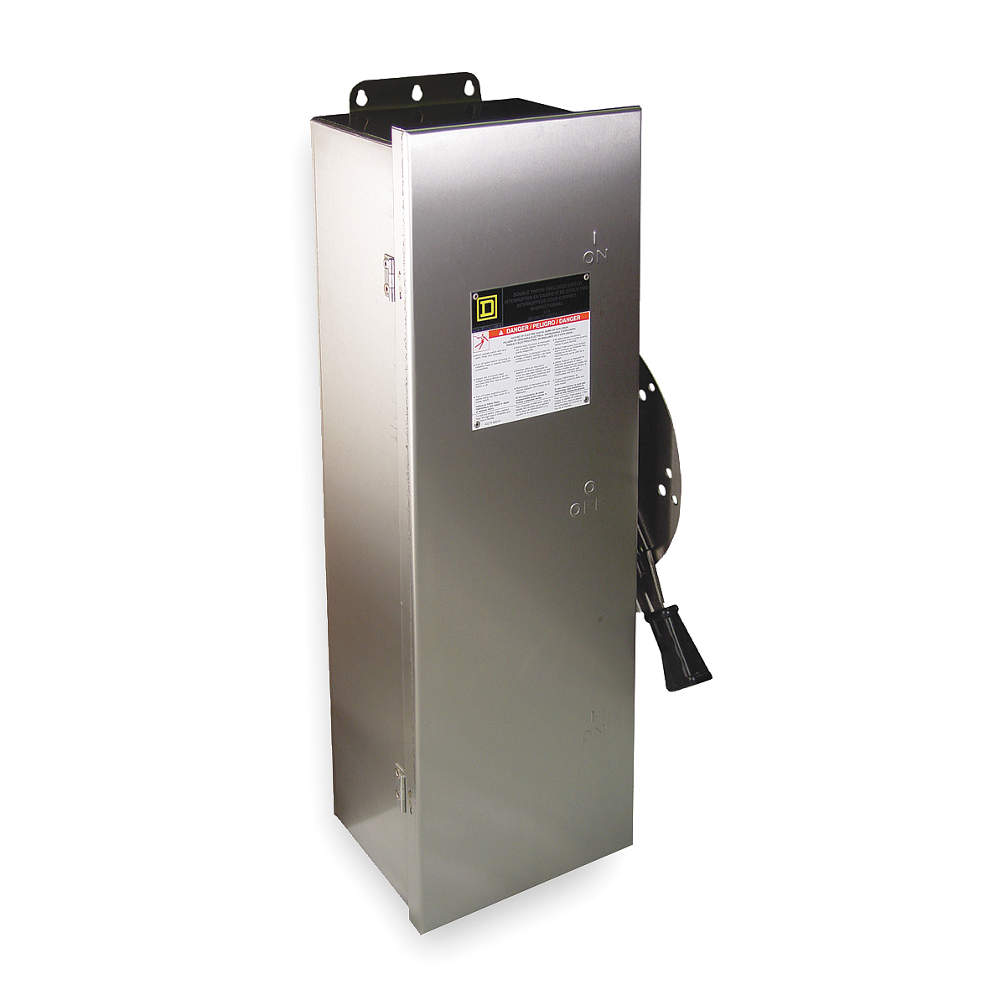

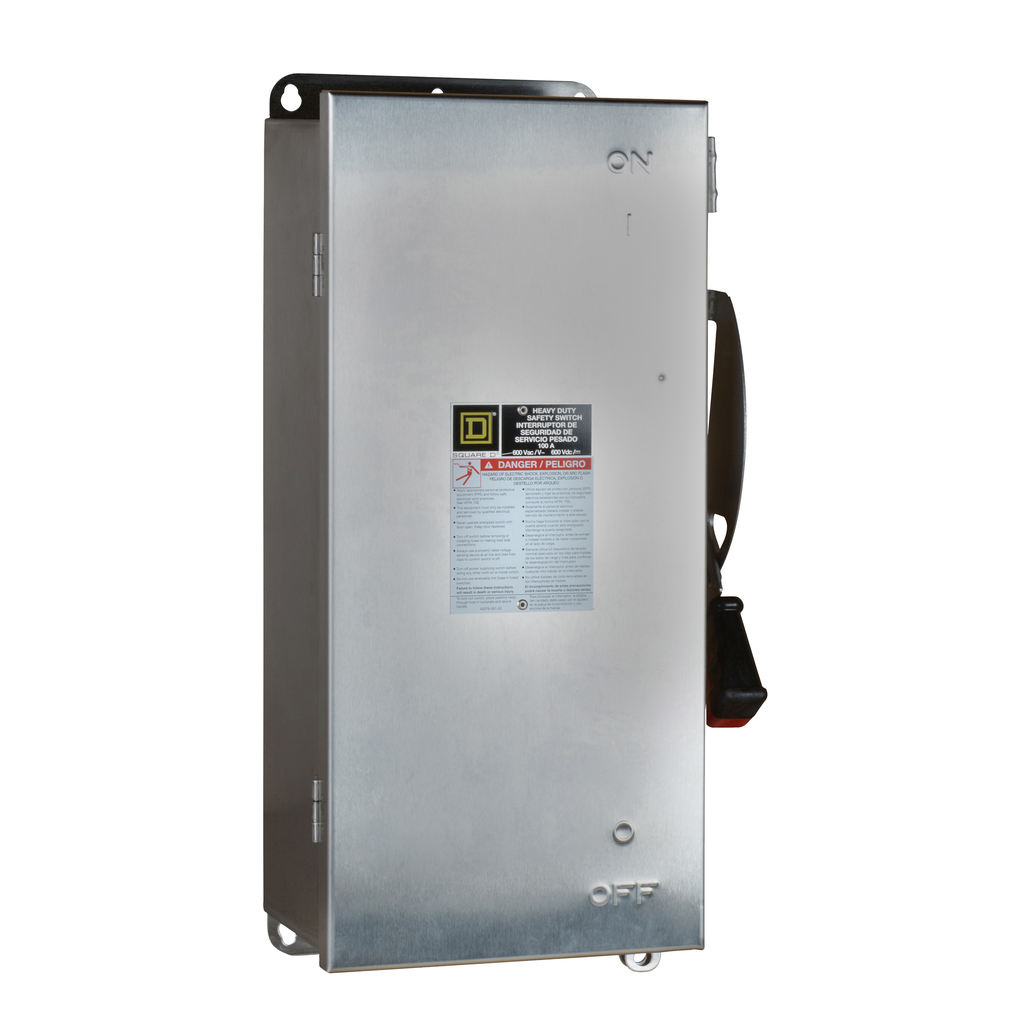

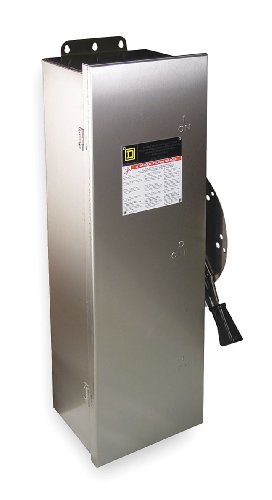

SCHNEIDER ELECTRIC 100-Amp H363DSEI Sw Fusible Hd 100A 3P Stainless/Interlk

SCHNEIDER ELECTRIC 100-Amp H363DSEI Sw Fusible Hd 100A 3P Stainless/Interlkzoom

Attributes

Key Value
[Ue] Rated Operational .600 V AC/DC
Actuator TypeHandle
Amperage Rating100, 100, 100 A, 100A
Amps AC100 A
Applicationheavy duty
Awg GaugeAWG 12...AWG 1/0 alumin.
BrandSquare D by Schneider E.
California Proposition .Lead and lead compounds.
Catalog NumberH363DSEI
China Rohs RegulationProduct out of China Ro.
ConnectionAWG 12...AWG 1/0 ALUMIN.
Contact Configuration1 NO/1 NC
Contact Form1NO-1NC TPST, 3PST
Country of OriginUnited States, US - Uni.
Depth6.97 in, 7.1 in
Device Applicationheavy application
Device Compositionnone
Device Mountingsurface
Dimensions20.82 in H x 11.25 in W.
Disconnector Device Typefusible disconnect
DutyHeavy
ECCNEAR99
EnclosureNEMA 4/4X/5 stainless s.
Enclosure Depth6 - 12 inches
Enclosure Height20 to 29 3/4 inches
Enclosure TypeNEMA 4/4X/5
Enclosure Width10 to 19 3/4 inches
Environmental DisclosureENVPEP1304031
Eu Rohs DirectiveCompliant
For Use WithClass H, J, R, T Fuse
Fuse Kit (Class R)Mfr. No. RFK10
Fusible / NonfusibleFusible
Height23.2 in, 20.82 in
Horsepower30 hp, 50 hp, 75 hp
HP60 hp @ 600V AC
IP RatingNot Rated
ItemSafety Switch
Item TypeSINGLE THROW SAFETY SWI.
Line Rated Current100 A
Made in USAYes
ManufacturerSchneider Electric
Material304 Stainless Steel
Material of Construction304 Stainless Steel
Mercury FreeYes
Metallic / Non-MetallicMetallic
Mountingsurface
Mounting typesurface
Nema Degree Of Protecti.NEMA 4/4X/5 stainless s.
NEMA Enclosure Type4, 4X, 5
Number Of Poles3
Number of Poles3
Number of Wires3
Phase3, 1/2/2003, 1/2/3, 3 p.
Product CertificationsUL listed file E2875
Product Or Component Ty.Single Throw Safety Swi.
Protection MethodFusible
Pvc FreeYes
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesF6
Series Nameheavy duty
Short Circuit Current R.200, 200 kA
Size11.25 IN,20.82 IN,6.97 .
Special Featuresheavy duty
StandardUL listed file E2875
StandardsUL listed
Sub Brandheavy duty
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-22 to 104, -22 to 104 .
Terminal TypeLug
Tightening Torque50-50 lbf.in (AWG 1...A.
TypeCorrosion-Resistant Dus.
UNSPSC39122205
UPC785901132523
Voltage600V AC
Voltage Rating600, 600 VAC/VDC, 600 V.
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Width11.25 in, 10.7 in
Wiring Configuration3-wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellH363DSEI3450.01In StockSCHNEIDER ELECTRIC SQUARE D3450.0 @ 1
thumbzoommayerelectric.comSQDH363DSEI3552.991In StockSQUARE D3552.99 @ 1
thumbzoomstandardelectricsupply.com22875643639.651In StockSquare D (Schneider Electric)3639.65 @ 1
thumbzoomZoroG65758253754.991In StockSquare D28.03754.99 @ 1
thumbzoomsustainablesupply.comC11809366189.181In StockSquare D28.06189.18 @ 1
thumbzoomcrescentelectric.com12629856217.041In StockSquare D by Schneider Electric6217.04 @ 1
Graybar995228466941.84961In StockSquare D (Schneider Electric)6941.8496 @ 1
AmazonTPB0085C787S9394.721In Stock30SCHNEIDER ELECTRIC9394.72 @ 1
thumbzoomRaptor SuppliesAH2NYT10349.1638641In StockSQUARE D10349.163864 @ 1
