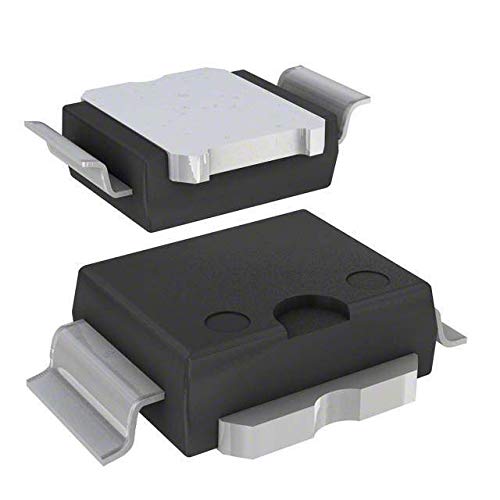

STMicroelectronics PD57018-E

mpnPD57018-E
brandname: STMicroelectronics
manufacturername: STMicroelectronics

PD57018S-E, Trans RF MOSFET N-CH 65V 2.5A 3-Pin PowerSO-10RF (Straight Lead) Tube

Brand: STMicroelectronics
PartNumber: PD57018-E
Model: PD57018-E
PackageQuantity: 1
Manufacturer: STMicroelectronics
Label: STMicroelectronics

Attributes

Key	Value
Alternate Part No.	511-PD57018-E
Base Product Number	PD57018
Brand	STMicroelectronics
Case	PowerSO10RF
Category	Discrete Semiconductor .
Configuration	Single
Current - Test	100 mA
Current Rating (Amps)	2.5A
Description	FET RF 65V 945MHZ PWRSO.
Detailed Description	RF Mosfet 28 V 100 mA 9.
Digi-Key Part Number	497-5305-5-ND
Drain current	2.5A
Drain-source voltage	65V
ECCN EU	EAR99
ECCN US	PowerSO-10RF (formed le.
Electrical mounting	SMT
Forward Transconductanc.	1 S
Frequency	945MHz, 1 GHz
Gain	16.5 dB at 945 MHz, 16..
Gate-source voltage	?20V
Grade	Ecopack2
Id - Continuous Drain C.	2.5 A
Kind of channel	enhanced
Kind of package	Tube
Kind of transistor	RF
Manufacturer	STMicroelectronics
Manufacturer Part No.	PD57018-E
Manufacturer Product Nu.	PD57018-E
Manufacturer Standard L.	23 Weeks
Maximum Operating Tempe.	+ 150 C
Mfr	STMicroelectronics
Minimum Operating Tempe.	- 65 C
Mounting Style	SMD/SMT
Noise Figure	-
Open-loop gain	16.5dB
Output power	18W
Output Power	18 W
Package	Tube
Package / Case	PowerSO-10 Exposed Bott.
Package Name	Industrial
Package/Case	PowerSO-10RF (formed le.
Packaging	Tube
Packing Type	NEC
Pd - Power Dissipation	31.7 W
Polarisation	unipolar
Power - Output	18W
Power dissipation	31.7W
Product Category	Transistors RF MOSFET
Product Status	Active
Product Type	RF MOSFET Power
Rds On - Drain-Source R.	760 mOhms
RoHs compliant	Tube
Series	PD57018-E, -
Supplier Device Package	10-PowerSO
Technology	MOSFET, LDMOS
Transistor Polarity	N-Channel
Transistor Type	MOSFET Power
Type of transistor	N-MOSFET
Vds - Drain-Source Brea.	65 V
Vgs - Gate-Source Break.	+/- 20 V
Voltage - Rated	65 V
Voltage - Test	28 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Future Electronics	3673142	26.628	400	In Stock	STMicroelectronics	26.628 @ 400
st.com	PD57018-E	30.05	1	In Stock	STMicroelectronics	30.05 @ 1
Digi-Key	1144686	30.36	1	In Stock	STMicroelectronics	30.36 @ 1
electromaker.io	511-PD57018-E	30.53	1	392	STMicroelectronics	30.53 @ 1
Hotenda	H1912953	32.4	1	271	STMicroelectronics	32.4 @ 1
Verical	PD57018-E	35.318	1	395	STMicroelectronics	35.318 @ 1
Avnet	45AC7468	36.84	1	In Stock	STMicroelectronics	36.84 @ 1
TME	PD57018-E	43.23	1	In Stock	STMicroelectronics	43.23 @ 1
swatee.com	PD57018-E	63.27	1	188	STMicroelectronics	63.27 @ 1
