TE Connectivity 5223955-2

mpn5223955-2
brandname: TE Connectivity
manufacturername: TE Connectivity

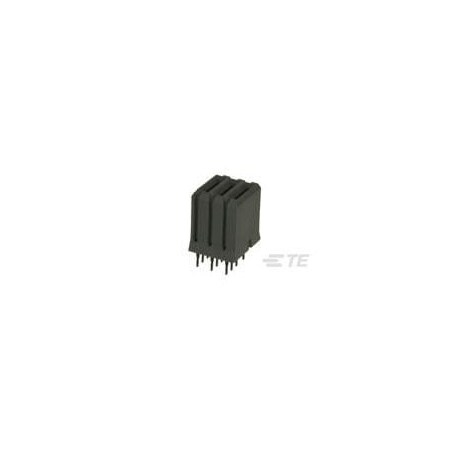

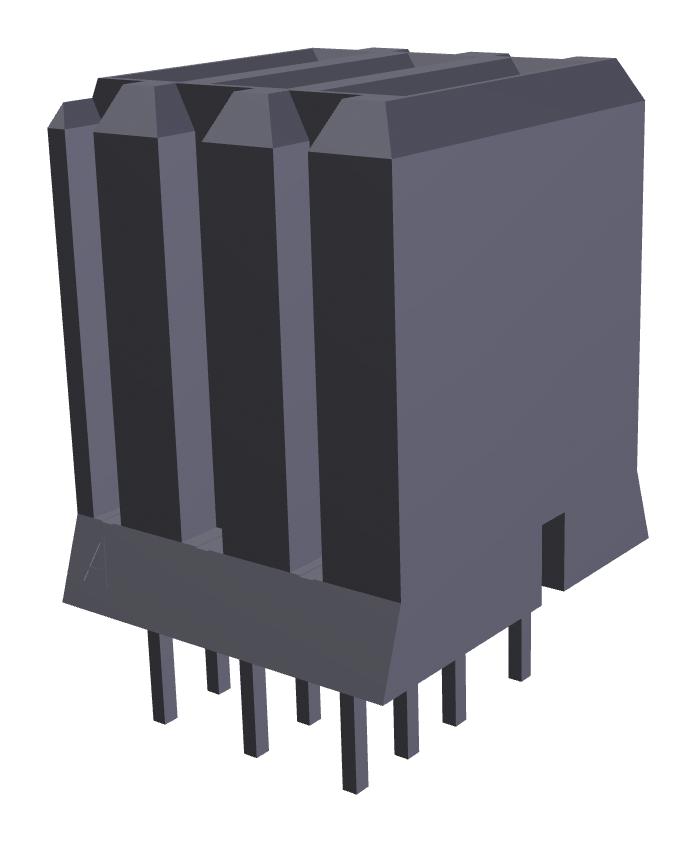

T-E Connectivity 5223955-2 (1 pc) UNV PWR MDL ASY RECEPT

T-E Connectivity 5223955-2 (1 pc) UNV PWR MDL ASY RECEPT

zoom

Brand: TE Connectivity
PartNumber: 5223955-2
PackageQuantity: 1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	5223955-2
Alternate Part No.	571-5223955-2
Angle	Vertical
Application	Power
Base Product Number	223955
Brand	TE Connectivity
Category	Connectors, Interconnec.
Color	Gray
Connection Material	Copper Alloy
Connector Style	Blade Power
Connector Terminates To	Printed Circuit Board
Connector Type	Receptacle, Female Sock.
Connector Usage	-
Contact Finish	Noble Metal Plated, Gold
Contact Finish Thickness	50.0?in (1.27?m)
Contact Layout, Typical	3 Power
Contact Material	Phosphor Bronze
Contact Plating	Gold
Contact Plating Thickne.	1.27 ?m
Contact Type	Socket
Current Rating	16 A
Current Rating (Amps)	-
Features	-
Flammability Rating	UL 94 V-0
Hole Center to Center	3 mm
Housing Material	Liquid Crystal Polymer .
Item	Connector Assembly
Manufacturer	TE Connectivity
Manufacturer Part No.	5223955-2
Material	Thermoplastic
Material Flammability R.	UL94 V-0
Max. Temp.	125?C
Max. Voltage	250V AC/DC
Mfr	TE Connectivity AMP Con.
Mounting Angle	Vertical
Mounting Style	Through Hole
Mounting Type	Through Hole
Number of Columns	3, -
Number of Contacts	3
Number of Positions	3
Number of Positions Loa.	All
Number of Rows	1, -
Operating Temperature	-
Package	Tube
Package Quantity	1
Packaging	Tube
Part # Aliases	5-223955-2
Pitch	-
Primary Type	High Speed
Product Category	Hard Metric Connectors
Product Status	Active
Product Type	Receptacles
Series	UPM (Universal Power Mo.
Terminal Finish	Tin-Lead
Terminal Type	Through Hole - Press-Fit
Termination	Press-Fit
Termination Style	Press Fit
Type	Universal Power Module,.
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Freelance Electronics	5-223955-2	2.74407	1	1242		Tyco Electronics		2.74407 @ 10
	Arrow	5223955-2	3.995	1	213		TE Connectivity		3.995 @ 10
	Onlinecomponents.com	5223955-2	4.1	1	13771		TE Connectivity / AMP Brand		4.1 @ 10
	us.rs-online.com	70086015	4.11	1	10		TE Connectivity		4.11 @ 10
	Newark	68AH0535	4.11	60	10		AMP - TE CONNECTIVITY		4.11 @ 50
	Hotenda	H716449	4.86	1	10		TE Connectivity AMP Connectors		4.86 @ 10
	Future Electronics	4238101	6.216	1	4080		TE Connectivity		6.216 @ 10
	Digi-Key	4022554	6.48483828571	2100	10		TE Connectivity AMP Connectors		6.48483828571 @ 2100
	swatee.com	5223955-2	6.49	1	1633		TE Connectivity		6.49 @ 10
	Waldom	TE CONNECTIVITY AMP BRAND 5-223955-2	6.76	60	84		TE CONNECTIVITY/AMP BRAND		6.76 @ 60
	AmazonTP	B07KTGK15X	43.61	1	10	5	TE Connectivity / AMP Brand		43.61 @ 10
	Zoro	G701068856	545.4	1	10		Te Connectivity		545.4 @ 10
