Amp - Te Connectivity 5-534237-8

mpn5-534237-8
brandname: TE Connectivity
manufacturername: TE Connectivity

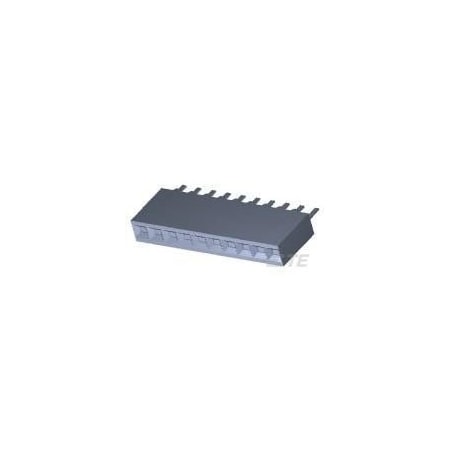

Amp - Te Connectivity Board-Board Connector Receptacle, 10 Position, 1Row - 5-534237-8

Brand: Amp - Te Connectivity
PartNumber: 5-534237-8
Model: 5-534237-8
PackageQuantity: 1
Manufacturer: Amp - Te Connectivity
Label: Amp - Te Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	5-534237-8
Applications	-
Base Product Number	534237
Category	Connectors, Interconnec.
Connector Style	Receptacle
Connector Type	Connector Assembly, Rec.
Contact Configuration	Short Point
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	150.0?in (3.81?m)
Contact Layout	Inline
Contact Length - Post	0.115" (2.92mm)
Contact Material	Phosphor Bronze
Contact Resistance	12 MOhms
Contact Shape	Square
Contact Type	Socket, Female Socket
Country of Origin (subj.	China
Current Rating (Amps)	2A
Description	CONN RCPT 10POS 0.1 GOL.
Detailed Description	10 Position Receptacle .
Digi-Key Part Number	A32910-ND
Family Name	AMPMODU Interconnect Sy.
Fastening Type	Push-Pull
Features	-
For Use With	Mates with Headers
Height	3.56 mm[.14 in]
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.340" (8.64mm)
Insulation Material	Polyester, Glass Filled
Insulation Resistance	5000 MegaOhms
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	5-534237-8
Manufacturer Standard L.	16 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	10
Number of Positions	10
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-65?C ~ 125?C
Package	Tube
Pitch	2.54 mm (0.100")
Pitch - Mating	0.100" (2.54mm)
Primary Type	Board Mount
Product Status	Active
Product Type	Connector
Profile	Standard
Row Spacing - Mating	-
Series	AMPMODU Mod IV, AMPMODU.
Style	Board to Board or Cable
Termination	Solder
Type	Receptacle
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Newark	52K3746	0.47	1	10	AMP - TE CONNECTIVITY	0.47 @ 10
Onlinecomponents.com	5-534237-8	1.42	1	6160	TE Connectivity / AMP Brand	1.42 @ 10
Hotenda	H1419924	1.84	1	10	TE Connectivity AMP Connectors	1.84 @ 10
us.rs-online.com	70346596	2.29	88	10	TE Connectivity	2.29 @ 88
RS Delivers	164-3362	2.406	1	10	TE Connectivity	2.406 @ 10
Zoro	G901043479	2.75	3520	10	Te Connectivity	2.75 @ 3520
Digi-Key	1092981	2.9124	1	5040	TE Connectivity AMP Connectors	2.9124 @ 10
