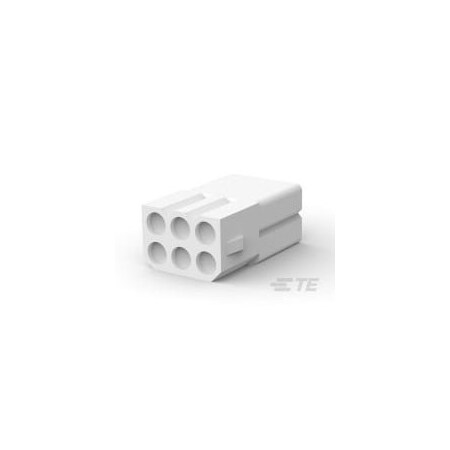

TE Raychem 770086-1

mpn770086-1
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Raychem Connector

Brand: TE Raychem
PartNumber: 770086-1
Manufacturer: TE Raychem
Label: TE Raychem

Attributes

Key	Value
Agency Approvals	CSA ; UL
Alternate Mfr Part Numb.	770086-1
Alternate Part No.	571-7700861
Angle	Straight
Application	Power, Signal
Base Product Number	770086
Brand	TE Connectivity
Category	Connectors, Interconnec.
Color	Natural
Connector Terminates To	Wire & Cable
Connector Type	Receptacle
Contact Diameter	0.093 in.
Contact Layout	Matrix
Contact Termination	Crimp
Contact Type	Male or Female, Pin, So.
Current Rating	13 A
Description	CONN RCPT HSG 6POS 5.03.
Detailed Description	6 Rectangular Connector.
Digi-Key Part Number	A14056-ND
Fastening Type	Locking Ramp
Features	-
Flammability Rating	UL 94 V-2
For Use With	Plug Housing
Gender	Receptacle
Height	10.92 mm
Hole Center to Center	5.03 mm
Housing Material	Nylon
Insulation Material	Polyamide (PA), Nylon
Item	Housing
Length	25.4 mm
Lock Type	Detent Lock
Manufacturer	TE Connectivity AMP Con.
Manufacturer Part No.	770086-1
Manufacturer Product Nu.	770086-1
Manufacturer Standard L.	16 Weeks
Material	Nylon
Matrix Centerline	0.198 in.
Max. Temp.	105?C
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Free Hanging (In-Line),.
Note	Contacts Not Included
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Rows	2
Operating Temperature	-55?C ~ 105?C, +25 to +.
Overall Length	1 "
Package	Bulk
Package Quantity	1
Pin Spacing	0.198 in
Pitch	0.198" (5.03mm), 5.03 mm
Primary Type	Soft Shell
Product Category	Pin & Socket Connectors
Product Header	Free Hanging Mounted Re.
Product Status	Active
Product Type	Receptacle Housings
Row Spacing	0.198" (5.03mm)
Series	Commercial MATE-N-LOK, .
Special Features	Free Hanging
Standards	CSA Certified; UL E2847.
Terminal Type	Crimp
Tradename	MATE-N-LOK
Type	Receptacle
Voltage Rating	250 V
Width	16 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	770086-1	0.187	1	12124	TE Connectivity / AMP Brand	0.187 @ 1
Newark	66F3000	0.207	7800	483	AMP - TE CONNECTIVITY	0.207 @ 7800
Hotenda	H1469862	0.3	1	483	TE Connectivity AMP Connectors	0.3 @ 1
RS Delivers	782-8896	0.3504	10	483	TE Connectivity	0.3504 @ 10
swatee.com	770086-1	0.402	1	2314	TE Connectivity	0.402 @ 1
Digi-Key	187691	0.456	1	7553	TE Connectivity AMP Connectors	0.456 @ 1
us.rs-online.com	70087468	0.47237	1	43	TE Connectivity	0.47237 @ 1
Zoro	G000957318	100.0	250	483	Te Connectivity	100.0 @ 250
