TE Connectivity 770092-1

B00DEDD7AA

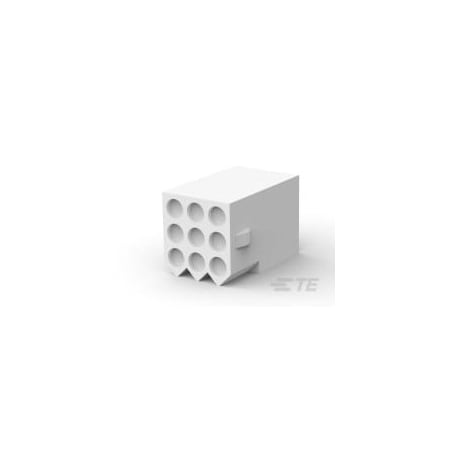

T-E Connectivity 770092-1 (2 pcs) 09P .093 COMM P&S RECPT HSG

T-E Connectivity 770092-1 (2 pcs) 09P .093 COMM P&S RECPT HSGzoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
Alternate Mfr Part Numb.770092-1
AngleStraight
ApplicationPower, Signal
Centerline (Pitch)5.03?mm?[?.198?in?]
Circuit ApplicationPower & Signal
ColorNatural
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector SystemWire-to-Wire
Connector Terminates ToWire & Cable
Contact Diameter0.093 in.
Contact LayoutMatrix
Contact RetentionWithout
Contact TypeSocket
Current Rating13 A
Flammability RatingUL 94 V-2
For Use WithPlug Housing
GenderReceptacle
Glow Wire RatingStandard Part - Not Glo.
Height16.891 mm
Hole Center to Center5.03 mm
Housing ColorNatural
Housing MaterialNylon 6/6, Nylon
Housing TypeReceptacle
ItemHousing
Length25.4 mm
Lock TypeDetent Lock
MaterialNylon
Matrix Centerline0.198 in.
Max. Temp.105?C
Max. Voltage250V AC
Mounting TypeFree Hanging
Number of Circuits9
Number of Contacts9
Number of Positions9
Number of Rows3
Number of Signal Positi.9
Operating Temperature+25 to +65 ?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250
Overall Length1 "
Package Quantity1
Packaging MethodPackage
Panel Mount FeatureWithout
Pin Spacing0.198 in
Primary TypeSoft Shell
Product HeaderFree Hanging Mounted Re.
Product TypeHousing
Row-to-Row Spacing5.03?mm?[?.198?in?]
SealableNo
SeriesStandard 062 Pin and So.
Special FeaturesFree Hanging
StandardsCSA Certified; UL E2847.
Terminal TypeCrimp
Termination Method to W.Crimp
TypeReceptacle
UL Flammability RatingUL 94V-2
Voltage Rating250 V
Width16.129 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group770092-10.25912800385TE Connectivity0.2591 @ 2800
WaldomTE CONNECTIVITY AMP BRAND 770092-10.266200959TE CONNECTIVITY/AMP BRAND0.266 @ 200
thumbzoomNewark89F27050.344144AMP - TE CONNECTIVITY0.344 @ 1
Onlinecomponents.com770092-10.489502071TE Connectivity0.489 @ 50
HotendaH14699210.491223TE Connectivity AMP Connectors0.49 @ 1
RS Delivers782-89060.537610223TE Connectivity0.5376 @ 10
us.rs-online.com700874740.555181TE Connectivity0.55 @ 5
thumbzoomDigi-KeyA14057-ND0.571223TE Connectivity AMP Connectors0.57 @ 1
Mouser571-77009210.591244TE Connectivity0.59 @ 1
TE Connectivity770092-10.5988112803TE Connectivity (TE)0.59881 @ 1
AmazonTPB00KSWCWMY5.9112232TE Connectivity5.91 @ 1
AmazonUNKB00KSWCWMY5.911223TE Connectivity5.91 @ 1
AmazonSCB00KSWCWMY11.891223TE+Connectivity11.89 @ 1
thumbzoomZoroG00095734994.01In StockTe Connectivity94.0 @ 1
