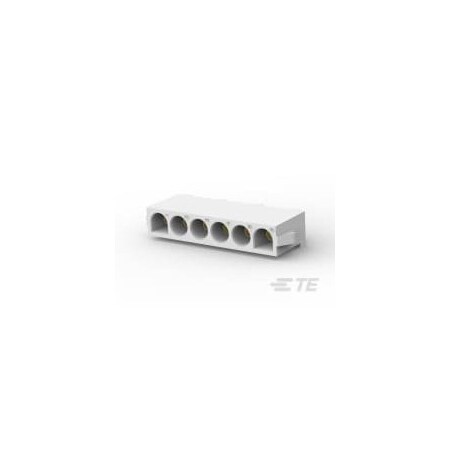

TE Connectivity 770262-3

mpn770262-3
brandname: TE Connectivity
manufacturername: TE Connectivity

TE Connectivity Part Number 770262-3

Brand: TE Connectivity
PartNumber: 770262-3
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Mfr Part Numb.	770262-3
Application	Power
Applications	-
Base Product Number	770262
Category	Connectors, Interconnec.
Color	White
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	-
Contact Layout	Inline
Contact Length - Post	0.155" (3.94mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.76 ?m
Contact Shape	Circular
Contact Type	Pin, Female Socket
Current Rating	19 A
Current Rating (Amps)	-
Description	CONN HDR 6POS 0.25 GOLD.
Detailed Description	6 Position Header Conne.
Digi-Key Part Number	770262-3-ND
Family Name	Universal MATE-N-LOK Fa.
Fastening Type	Locking Ramp
Features	-
Flammability Rating	UL 94 V-0
For Use With	Mates with Plug Housing.
Height	13.97 mm
Hole Center to Center	6.35 mm
Housing Type	Plug
Ingress Protection	-
Insulation Color	White
Insulation Height	0.580" (14.73mm)
Insulation Material	Polyamide (PA), Nylon
Item	Header
Length	39.37 mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	770262-3
Manufacturer Standard L.	19 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	600V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Contacts	6
Number of Positions	6
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-40?C ~ 105?C
Package	Bulk
Package Quantity	1
Pitch	6.35 mm (0.250")
Pitch - Mating	0.250" (6.35mm)
Primary Type	Soft Shell
Product Status	Active
Product Type	Header
Row Spacing - Mating	-
Series	Universal MATE-N-LOK Se.
Standards	CSA Certified; UL E2847.
Strain Relief	Without
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Through Hole - Solder
Termination	Solder
Type	Header
Voltage Rating	-
Width	7.62 mm, 0 mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Newark	41P0040	2.11	1	655		AMP - TE CONNECTIVITY	2.11 @ 1
Future Electronics	5108682	2.388	2000	50		TE Connectivity	2.388 @ 2000
Onlinecomponents.com	770262-3	3.26	1	390		TE Connectivity / AMP Brand	3.26 @ 1
Hotenda	H1417835	4.21	1	23		TE Connectivity AMP Connectors	4.21 @ 1
us.rs-online.com	70227375	4.8	2000	In Stock		TE Connectivity	4.8 @ 2000
Digi-Key	2259000	6.612	1	1292		TE Connectivity AMP Connectors	6.612 @ 1
AmazonTP	B07KTH881R	44.0	1	In Stock	2	TE Connectivity / AMP Brand	44.0 @ 1
AmazonSC	B07KTH881R	57.37	1	In Stock		TE Connectivity / AMP	57.37 @ 1
Zoro	G000940730	5390.0	1	In Stock		Te Connectivity	5390.0 @ 1
