770277-1

B00DEDKXDE

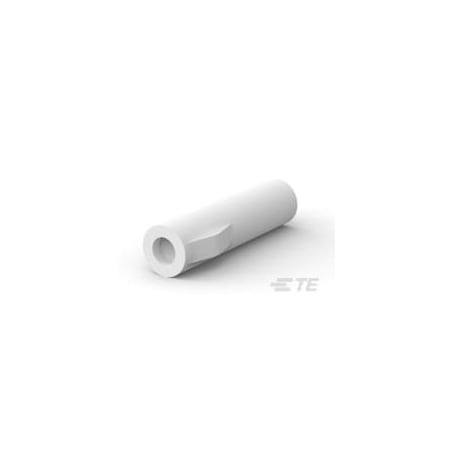

"TE Connectivity 770277-1 Connector, Shell; 250 VAC; 7 A (Max.); 1; Receptacle; Nylon; Natural; 0.062 in."

"TE Connectivity 770277-1 Connector, Shell; 250 VAC; 7 A (Max.); 1; Receptacle; Nylon; Natural; 0.062 in."zoom

Attributes

Key Value
Agency ApprovalsCSA ; UL
Alternate Mfr Part Numb.770277-1
AngleStraight
ApplicationPower, Signal
Base Product Number770277
CategoryConnectors, Interconnec.
Centerline (Pitch)3.68?mm?[?.145?in?]
Circuit ApplicationPower & Signal
ColorNatural
ConnectorWire & Cable
Connector Mounting TypeCable Mount (Free-Hangi.
Connector SystemWire-to-Wire
Connector Terminates ToWire & Cable
Connector TypeReceptacle
Contact Diameter0.062 in.
Contact LayoutIn-Line
Contact RetentionWithout
Contact TerminationCrimp
Contact TypeMale or Female, Socket
Current Rating7 A
DescriptionCONN RCPT HSG 1POS .062
Detailed Description1 Rectangular Connector.
Digi-Key Part NumberA14001-ND
Fastening TypeLocking Ramp
Features-
Flammability RatingUL 94 V-2
GenderReceptacle
Glow Wire RatingStandard Part - Not Glo.
Hole Center to Center3.68 mm
Housing ColorNatural
Housing MaterialNylon
Housing TypeReceptacle
Insulation MaterialPolyamide (PA), Nylon
ItemHousing
Length0.785 in
Lock TypeDetent Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.770277-1
Manufacturer Standard L.8 Weeks
MaterialNylon
Max. Insulation Dia.0.11 in
Max. Single Wire Size18 AWG
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Min. Single Wire Size30 AWG
Mounting TypeFree Hanging (In-Line),.
NoteContacts Not Included
Number of Circuits1
Number of Contacts1
Number of Positions1
Number of Rows1
Number of Signal Positi.1
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
Operating Voltage250
Overall Length0.785 "
PackageBulk
Package Quantity1
Packaging MethodPackage
Panel Mount FeatureWithout
Pin Spacing0.145 in
Pitch-
Primary TypeSoft Shell
Product HeaderFree Hanging Mounted Re.
Product StatusActive
Product TypeHousing
Row Spacing-
SealableNo
SeriesCommercial .062" Pin an.
Special FeaturesFree Hanging
StandardsCSA Certified; UL E2847.
Terminal TypeCrimp
Termination Method to W.Crimp
TypeReceptacle
UL Flammability RatingUL 94V-2
Voltage Rating250 V
Wire Size30 ? 18, .2 ? .9, 394.7.
Wire TypeDiscrete

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Power and Signal Group770277-10.10089500992TE Connectivity0.1008 @ 9500
Onlinecomponents.com770277-10.1321604767TE Connectivity0.132 @ 160
thumbzoomNewark92F90460.159500666AMP - TE CONNECTIVITY0.15 @ 9500
HotendaH14698040.191666TE Connectivity AMP Connectors0.19 @ 1
us.rs-online.com700874310.2305411925TE Connectivity0.23054 @ 1
RS Delivers782-10620.23413180TE Connectivity0.234 @ 1
thumbzoomDigi-Key1876640.2615787TE Connectivity AMP Connectors0.26 @ 1
TE Connectivity770277-10.2921117548TE Connectivity (TE)0.29211 @ 1
thumbzoomZoroG90104017191.01666Te Connectivity91.0 @ 1
