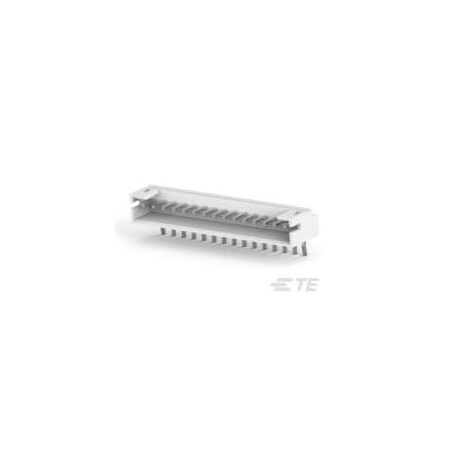

TE Connectivity 1-440055-5

mpn1-440055-5
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 1-440055-5

Brand: TE Connectivity
PartNumber: 1-440055-5
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	440055
Category	Connectors, Interconnec.
Color	Natural
Connection Material	Brass
Connector Type	Header
Contact Finish	Bright Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	80.0?in (2.03?m)
Contact Finish Thicknes.	80.0?in (2.03?m)
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.134" (3.40mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	3 A
Current Rating (Amps)	3A
Description	CONN HEADER R/A 15POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A100159-ND
Fastening Type	-
Features	Partially Shrouded, -
Flammability Rating	UL 94 V-0
For Use With	1735801-x
Height	4.95 mm
Hole Center to Center	2 mm
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.195" (4.95mm)
Insulation Material	Thermoplastic
Item	PCB Mount Header
Length	32 mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	1-440055-5
Manufacturer Standard L.	15 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Insulation Dia.	0.059 in
Max. Single Wire Size	24 AWG
Max. Temp.	85?C
Max. Voltage	250V AC/DC
Mfr	TE Connectivity AMP Con.
Min. Single Wire Size	30 AWG
Mounting Type	Through Hole, Right Ang.
Number of Contacts	15
Number of Positions	15
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-25?C ~ 85?C
Overall Contact Length	-
Package	Bulk
Pitch - Mating	0.079" (2.00mm)
Product Status	Active
Row Spacing - Mating	-
Series	High Performance Interc.
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Terminal Finish	Bright Tin Plated
Terminal Type	Through Hole
Termination	Press-Fit, Solder
Voltage Rating	250V
Width	0.303 in
Wire Type	Discrete

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 1-440055-5	0.5	150	2076		TE CONNECTIVITY/AMP BRAND	0.5 @ 150
Newark	09H9423	0.605	10800	25		AMP - TE CONNECTIVITY	0.605 @ 10800
Digi-Key	1893001	0.9108	1	10488		TE Connectivity AMP Connectors	0.9108 @ 25
AmazonTP	B07KWGMHWX	51.84	1	25	1	TE Connectivity / AMP Brand	51.84 @ 25
AmazonSC	B07KWGMHWX	81.0	1	25		TE Connectivity / AMP	81.0 @ 25
Zoro	G100938002	123.0	1	25		Te Connectivity	123.0 @ 25
