TE Connectivity 5225398-3

B00FRBNDBU

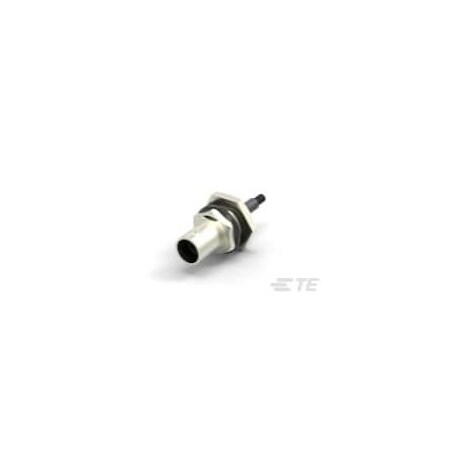

T-E Connectivity 5225398-3 (1 pc) BNC BJK DUAL CP RG55,223

T-E Connectivity 5225398-3 (1 pc) BNC BJK DUAL CP RG55,223zoom

Attributes

Key Value
Base Product Number5225398
Body FinishNickel
Body MaterialBrass
Body Plating MaterialNickel
Cable Connector Orienta.Straight
Cable GroupRG-55, 55A, 55B, 223
Cable TypeRG 223, RG 55, RG 55A, .
CategoryConnectors, Interconnec.
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
ConnectorWire & Cable
Connector Mounting TypePanel
Connector Seal TypeGasket
Connector StyleBNC
Connector SystemCable-to-Panel
Connector TypeJack, Female Socket
Contact TerminationCrimp
Country of Origin (subj.Mexico
Crimp TypeDual
DescriptionCONN BNC JACK STR 50 OH.
Detailed DescriptionBNC Connector Jack, Fem.
DetentWith
Dielectric MaterialPolytetrafluoroethylene.
Digi-Key Part NumberA32235-ND
Fastening TypeBayonet Lock
Features-
Frequency - Max4 GHz
Housing ColorSilver
Impedance50Ohm, 50
Includes6 pcs - 1 Connector, 1 .
Ingress Protection-
Insertion Loss0.2dB
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5225398-3
Mating Cycles500
MfrTE Connectivity AMP Con.
Mounting FeatureBulkhead - Front Side N.
Mounting TypePanel Mount
Number of Coaxial Conta.1
Number of Ports1
Number of Positions1
Operating Frequency4
Operating Temperature-55?C ~ 85?C
Operating Temperature R.-65 ? 165??C?[?-85 ? 32.
PackageBulk
Packaging MethodCarton
Part StatusActive
Port ConfigurationSingle Port
Product StatusObsolete
RF Connector Center Con.Beryllium Copper
RF Connector Center Con.Gold
RF Connector Coupling M.Snap-Fit
RF Connector Mated Oute.14.529?mm?[?.572?in?]
RF Connector StyleJack
RF Contact Captivation .Mechanical
RF InterfaceBNC
SealableYes
Series-
Shield TerminationCrimp
Termination Method to W.Crimp
Voltage Rating500 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5225398-312.755971TE CONNECTIVITY/AMP BRAND12.75 @ 5
TE Connectivity5225398-316.156671422TE Connectivity (TE)16.15667 @ 1
thumbzoomDigi-Key81112818.835971TE Connectivity AMP Connectors18.83 @ 5
thumbzoomZoroG10100997819.5500In Stock100Te Connectivity19.5 @ 500
HotendaH83706419.531In StockTE Connectivity AMP Connectors19.53 @ 1
Future Electronics492842028.44300In StockTE Connectivity28.44 @ 300
Onlinecomponents.com5225398-335.0411146TE Connectivity / AMP Brand35.04 @ 1
AmazonSCB07KPPSNMD51.221In StockTE Connectivity / AMP51.22 @ 1
AmazonTPB07KPPSNMD51.341In Stock2TE Connectivity / AMP Brand51.34 @ 1
AmazonUNKB07KPPSNMD51.341In StockTE Connectivity / AMP Brand51.34 @ 1
