KHU-17D12-12

B011ON2I0G

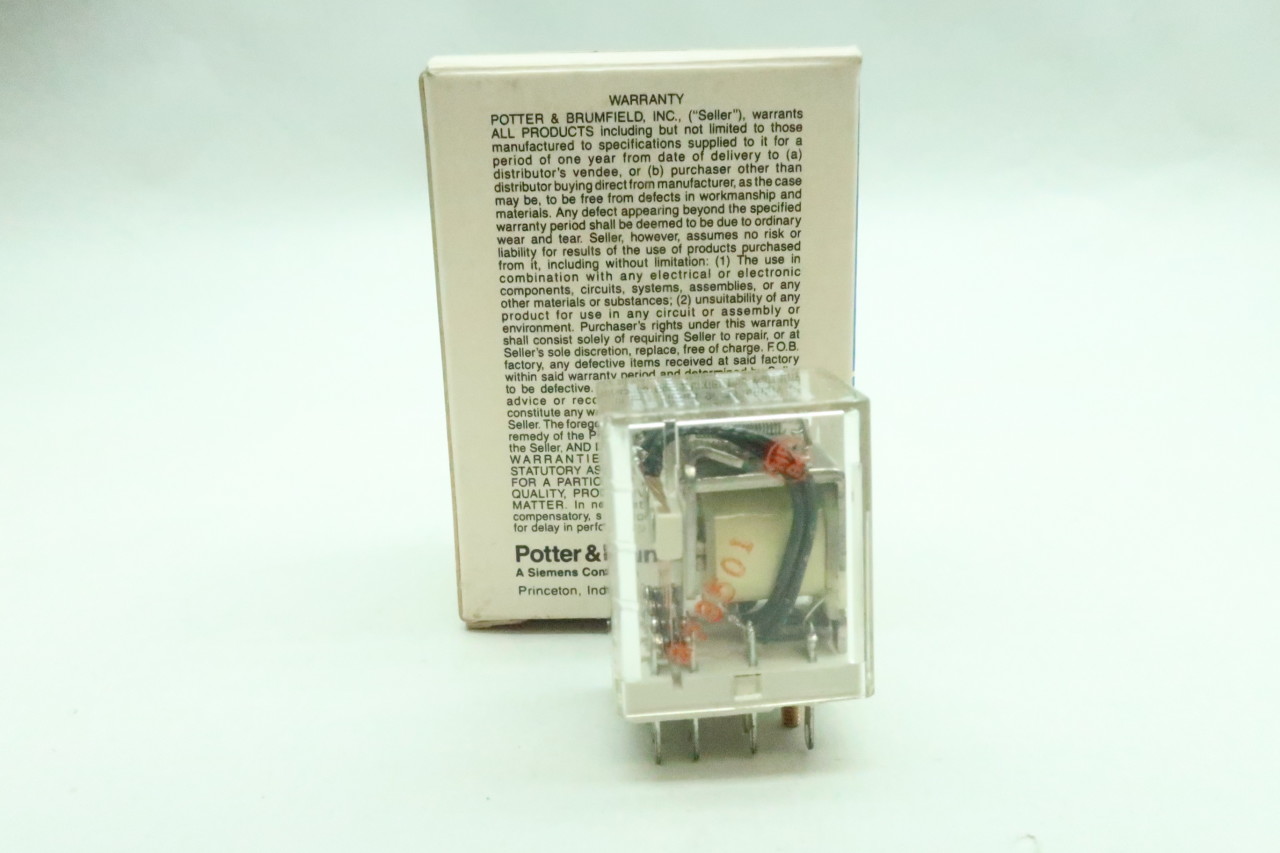

TE CONNECTIVITY / POTTER & BRUMFIELD KHU-17D12-12 POWER RELAY, 4PDT, 12VDC, 5A, PLUG IN

TE CONNECTIVITY / POTTER & BRUMFIELD KHU-17D12-12 POWER RELAY, 4PDT, 12VDC, 5A, PLUG INzoom

Attributes

Key Value
Base Product NumberKHU
Body Depth - Relay1.111 in
Body Height - Relay1-1/2 in
Body Width - Relay0.858 in
CategoryRelays
Coil Current75 mA
Coil InsulationClass B
Coil Resistance160 Ohms, 160 ?
Coil TypeNon Latching, Monostabl.
Coil Voltage12VDC
Coil Volts12V DC
Contact Form4PDT (4 Form C)
Contact Form - Relay4 Form C (CO)
Contact MaterialAgCdO, Silver Cadmium O.
Contact Rating0.208333333333333A
Contact Rating (Current)5 A
Contact Voltage Rating240 VAC
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Dielectric Voltage1500 Vrms Adjacent Cont.
Digi-Key Part NumberPB3146-ND
Features-, UL Coil Insulation C.
Item - RelayIndustrial Panel Plug-I.
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.KHU-17D12-12
Manufacturer Standard L.54 Weeks
MfrTE Connectivity Potter .
Mounting TypeSocketable, Socket
Must Operate Voltage9 VDC
Must Release Voltage-
Number of Poles4
Operate Time13 ms
Operating Temp. Range-45 to 70?C
Operating Temperature-45?C ~ 70?C
PackageBulk
Package Quantity1
Power Consumption - Rel.900 mW
Product StatusActive
Protection CategoryRTI
Relay TypeGeneral Purpose
Release Time6 ms
Seal Rating-
SeriesKHU
Switching Current300mA @ 12V
Switching Voltage240VAC - Max
Terminal TypePlug-In, Solder
Termination StylePlug In

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com4-1393123-727.04150TE Connectivity / AMP Brand27.04 @ 1
thumbzoomNRI IndustrialD70452327.481In StockPOTTER BRUMFIELD27.48 @ 1
Avnet4-1393123-731.334350In StockTE Connectivity31.334 @ 350
VericalKHU-17D12-1235.7812TE Connectivity35.78 @ 1
Freelance ElectronicsKHU-17D12-1243.7303513Potter & Brumfield43.73035 @ 1
thumbzoomDigi-Key112821346.4417757143350In StockTE Connectivity Potter & Brumfield Relays46.4417757143 @ 350
WaldomTE CONNECTIVITY AMP BRAND 4-1393123-746.843506TE CONNECTIVITY/AMP BRAND46.84 @ 350
us.rs-online.com7199653849.74350In StockTE Connectivity49.74 @ 350
Newark36AC410164.31In StockAMP - TE CONNECTIVITY64.3 @ 1
thumbzoomZoroG605866244142.781In StockTe Connectivity142.78 @ 1
