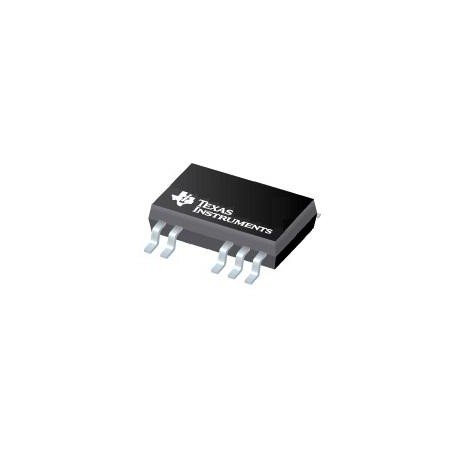

Texas Instruments DCV011512DP-U

B017TI1HQ6

DCV011512DP-U

DCV011512DP-Uzoom

Attributes

Key Value
Alternate Part No.595-DCV011512DP-U
ApplicationsITE (Commercial)
Base Product NumberDCV011512
BrandTexas Instruments
CategoryPower Supplies - Board .
Control FeaturesEnable, Active High
Current - Output (Max)41mA, 41mA
DescriptionDC DC CONVERTER +/-12V .
Detailed DescriptionIsolated Module DC DC C.
Digi-Key Part NumberDCV011512DP-U-ND
Efficiency78%
FeaturesOTP, SCP
Input Voltage Range13.5 V to 16.5 V
ManufacturerTexas Instruments
Manufacturer Part No.DCV011512DP-U
Manufacturer Product Nu.DCV011512DP-U
Manufacturer Standard L.6 Weeks
MfrTexas Instruments
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Outputs2
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current-Channel 141 mA
Output Current-Channel 240 mA
Output Power1 W
Output Voltage-Channel 112.6 V
Output Voltage-Channel 2- 11.4 V to - 12.6 V
PackageTube
Package / Case14-SMD Module, 7 Leads
Package/Case SizeSOP-7
PackagingTube
Power (Watts)1 W
ProductIsolated
Product CategoryIsolated DC/DC Converte.
Product StatusActive
SeriesDCV01 (1W), DCV011512D
Size / Dimension0.78" L x 0.33" W x 0.2.
TypeIsolated Module
Voltage - Input (Max)16.5V
Voltage - Input (Min)13.5V
Voltage - Isolation1.5 kV
Voltage - Output 112V
Voltage - Output 2-12V
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key36219912.8425500Texas Instruments12.84 @ 25
thumbzoomswatee.comDCV011512DP-U15.61113Texas Instruments15.61 @ 1
